Description
HP 24541-60031 Vectra 8-Bit ISA Dual Serial Card DB25 DB9 RS-232 Hewlett-Packard
The HP 24541-60031 is an 8-bit ISA dual serial I/O expansion card designed for HP Vectra desktop computers. It provides two independent RS-232 serial ports — a DB25 (25-pin) and a DB9 (9-pin) — via a full-height bracket, allowing legacy systems to connect serial peripherals such as modems, plotters, printers, and other RS-232 devices. The card is manufactured by Hewlett-Packard and bears FCC Class B and UL certifications.
Specifications & What's Included
- Manufacturer: Hewlett-Packard
- Part Number: 24541-60031
- Revision: A
- Bus Type: ISA (8-bit)
- Form Factor: Half-length ISA card
- Interface: RS-232 (dual port)
- Port 1: DB25 (25-pin) serial connector
- Port 2: DB9 (9-pin) serial connector
- Country of Manufacture: France
- FCC ID: DS46LH24541B; FCC Class B certified
- UL listed
- Included: Card only — no accessories, cables, or drivers included
Applications
This card was designed for use in HP Vectra desktop PCs, a line of IBM PC-compatible business workstations produced by Hewlett-Packard primarily through the late 1980s and 1990s. ISA dual serial cards of this type were commonly used to add or replace serial port capacity in desktop systems, supporting connections to external modems, serial mice, label printers, barcode scanners, plotters, and industrial serial devices. Today they are sought after for maintaining and servicing vintage HP Vectra systems, legacy industrial control setups, and other environments that still rely on RS-232 serial communication over an ISA bus.

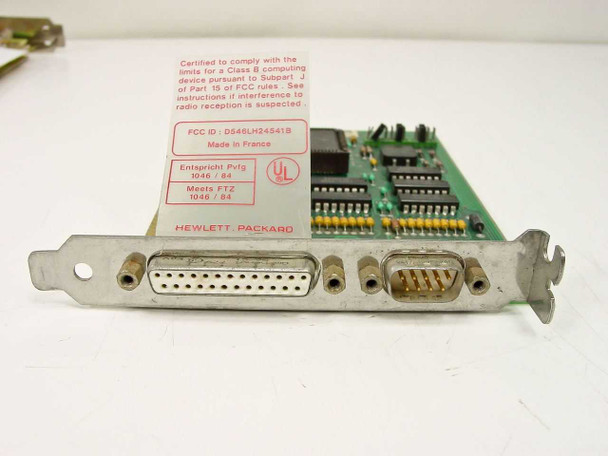

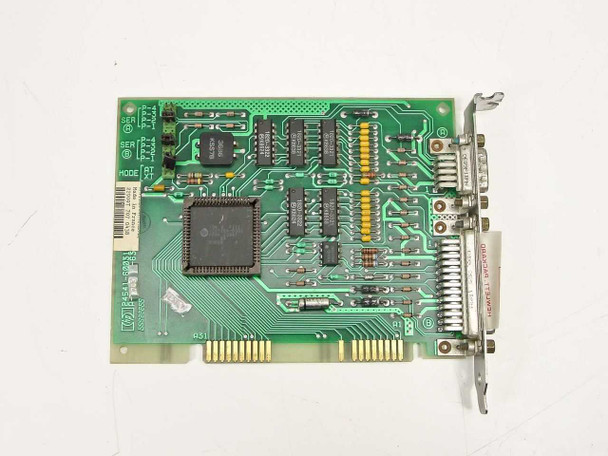

This HP 24541-60031 Vectra 8-bit ISA Dual Serial Card has been inspected and appears to be in good used condition. The PCB is clean with no visible damage, broken traces, or burnt components. The DB25 and DB9 port connectors on the bracket look intact. The card was pulled from a working environment. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Hewlett-Packard |
Model: |
24541-60031 |
MPN: |
24541-60031 |
Type: |
ISA Dual Serial I/O Card |
SKU: |
10204 |
Bus Type: |
ISA (8-bit) |
Interface: |
RS-232 |
Number of Ports: |
2 |
Connector Type 1: |
DB25 (25-pin serial) |
Connector Type 2: |
DB9 (9-pin serial) |
Compatible With: |
HP Vectra Desktop PCs |
Form Factor: |
Half-Length ISA Card |
Country/Region of Manufacture: |
France |
FCC ID: |
DS46LH24541B |
Certifications: |
FCC Class B, UL |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Card only, no accessories included. |
Condition Notes: |
HP 24541-60031 Vectra ISA Dual Serial Card in good used condition. PCB is clean, connectors intact, pulled from a working environment. Inspected; no visible damage. Card only. |
