HP 2345A Distributed Terminal Controller DTC 6-Bay 02345-60003 HP 3000 115V

(No reviews yet) Write a Review
SKU:
15532
MPN:
2345A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
55.00 LBS
Shipping:
Calculated at Checkout

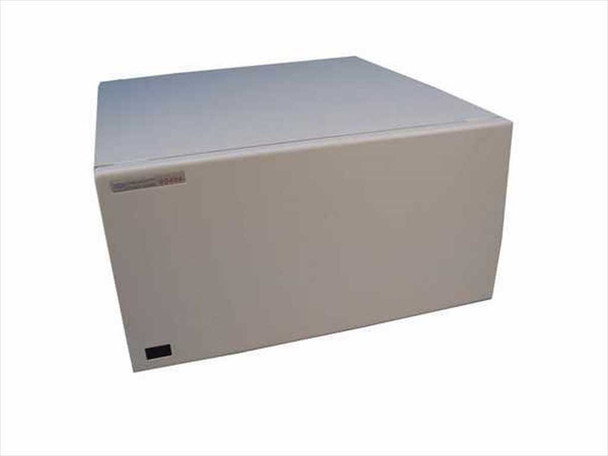

  • HP 2345A Distributed Terminal Controller – front left angled view showing beige desktop chassis

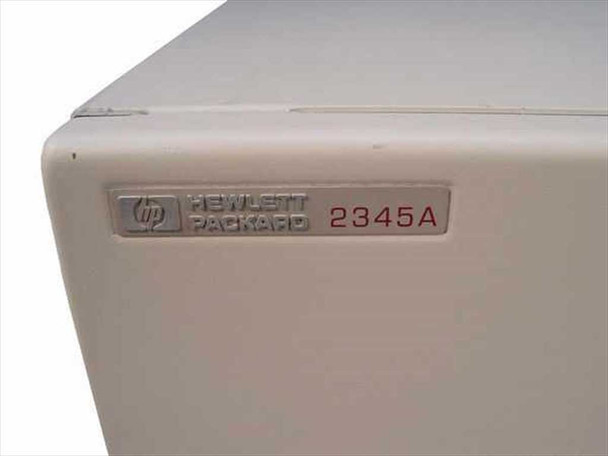

  • HP 2345A Distributed Terminal Controller – close-up of Hewlett-Packard 2345A nameplate badge on front panel
  • HP 2345A DTC – interior chassis open showing installed boards with green LED indicators and configuration label
  • HP 2345A DTC – rear view showing six 02345-60003 boards with serial port connectors and power switch
  • HP 2345A DTC – close-up of rear serial connectors on installed boards numbered 1 and 2 per card

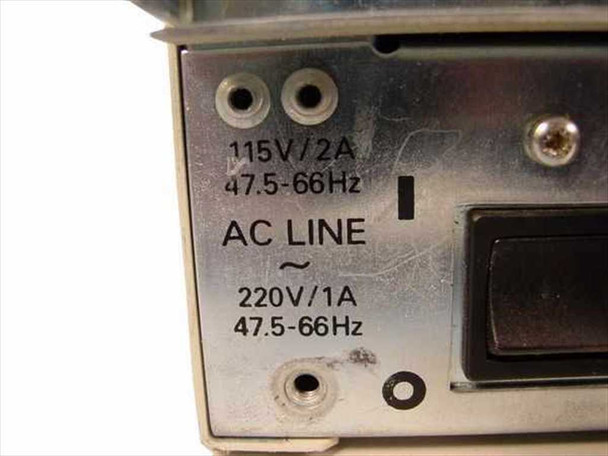

  • HP 2345A DTC – rear power entry panel showing 115V/2A and 220V/1A 47.5-66Hz AC line ratings and power switch

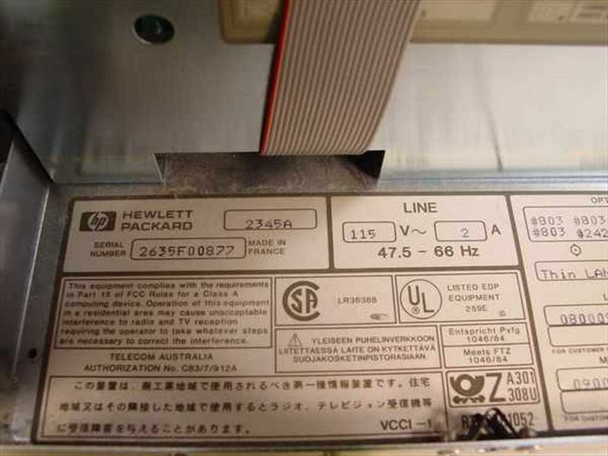

  • HP 2345A DTC – regulatory label showing serial number 2635F00877, Made in France, 115V 2A 47.5-66Hz, CSA and UL marks
  • HP 2345A DTC – additional regulatory and compliance label detail with FCC, VCCI, and international telecom approvals
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

HP 2345A Distributed Terminal Controller DTC 6-Bay 02345-60003 HP 3000 115V

The HP 2345A is a distributed terminal controller designed to manage asynchronous serial communications for HP 3000 Series 900 computers. It functions as a multi-port interface device housing six controller boards in a compact desktop chassis.

Specifications & What's Included

  • Model: HP 2345A (MPN 02345-60003)
  • Configuration: 6-bay chassis with six 02345-60003 boards installed
  • Interface: Asynchronous serial with Mini-DIN connectors
  • Power: 115V/2A or 220V/1A, 47.5-66Hz
  • Dimensions: 19" x 17" x 9"
  • Manufactured: France

Applications

The 2345A series was used in HP 3000 computing environments to expand terminal connectivity and manage remote asynchronous communications. It served as a peripheral interface controller for connecting multiple terminals, printers, and communication devices to HP 3000 systems. These controllers were standard components in enterprise data center deployments from the 1980s through early 2000s.

Condition: Used
This HP 2345A Distributed Terminal Controller powers on and counts up to 40 during its self-test sequence, but could not be fully tested beyond that point. The chassis and installed 02345-60003 boards appear to be in good cosmetic condition with normal wear for the equipment's age. The exterior shows light surface scuffs and typical discoloration consistent with years of use. The rear serial port connectors on all six boards appear intact and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hewlett-Packard
Model:
2345A
MPN:
02345-60003
SKU:
15532
Type:
Distributed Terminal Controller
Number of Bays:
6
Compatible With:
HP 3000 Series 900 Computers
Interface Type:
Asynchronous Serial
Connector Type:
Mini-DIN (visible on rear boards)
Power Requirements:
115V/2A or 220V/1A, 47.5-66Hz
Form Factor:
Desktop Chassis
Dimensions:
19" x 17" x 9"
Country/Region of Manufacture:
France
Condition:
Used – Powers On, Not Fully Tested
Seller Notes:
Includes 02345-60003 boards installed in 6-bay chassis
Condition Notes:
HP 2345A Distributed Terminal Controller powers on and counts to 40 during self-test but could not be fully tested. Six 02345-60003 boards installed. Good cosmetic condition with normal age-related wear. Please contact us with questions.
