HP 216A 02538-2 Pulse Generator Operating & Service Manual 1966 Serials 619+

HP 216A 02538-2 Pulse Generator Operating & Service Manual 1966 Serials 619+

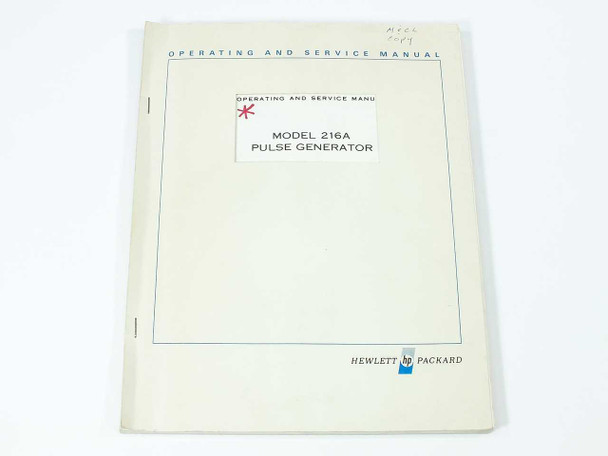

This is the original Hewlett-Packard Operating and Service Manual for the HP 216A Pulse Generator, publication number 02538-2, printed August 1966. The manual covers instruments with serial numbers prefixed 619+ and includes a supplementary note for instruments with other serial prefixes directing users to Section 5. It is the primary technical reference for operating, servicing, and troubleshooting the HP 216A.

Specifications & What's Included

• Manufacturer: Hewlett-Packard
• For Instrument: HP 216A Pulse Generator
• Document Type: Operating and Service Manual
• Publication Number: 02538-2
• Print Date: August 1966
• Serial Number Coverage: Serials Prefixed 619+ (see Section 5 for other serial prefixes)
• Language: English
• Format: Original printed manual, saddle-stitched/bound
• Sections covered: General Information, Installation, Operation, Principles of Operation, Maintenance, Replaceable Parts

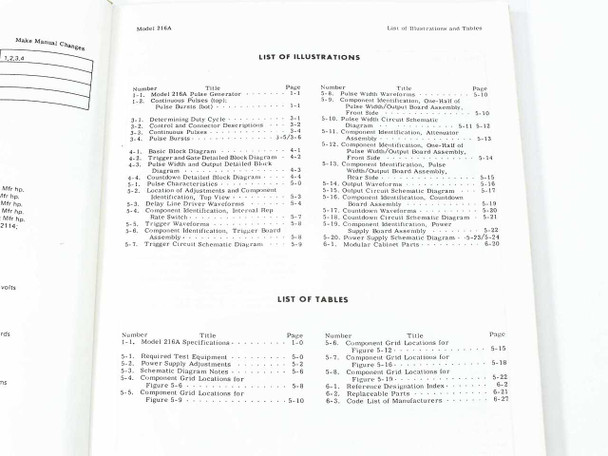

• Includes: Table of Contents, List of Illustrations, List of Tables, fold-out schematics (including power supply circuit diagram), component identification boards, and replaceable parts/ordering information
• Appendix: Model 216A Specifications table

Applications

The HP 216A is a bench-top pulse generator produced by Hewlett-Packard in the early-to-mid 1960s, designed for laboratory and electronic test applications requiring precise, repeatable pulse waveforms. Pulse generators of this type were standard bench instruments in electronics labs, used to drive and characterize digital and analog circuits, test trigger and gate logic, evaluate pulse width and duty cycle behavior, and verify the timing response of other test instruments. The 216A was part of HP's broad line of general-purpose test equipment from this era, when Hewlett-Packard was establishing itself as a leading supplier of precision electronic instrumentation. This manual is the essential reference for technicians maintaining, repairing, or restoring the 216A — providing full circuit schematics, component identification, alignment procedures, and an illustrated parts list. Collectors and vintage test equipment enthusiasts also seek original HP manuals from this period for documentation of classic instruments.
