Description
HP 463552-004 N193 18.5V 65W AC Laptop Adapter PSU Compaq Notebook 463958-001
The HP 463552-004 is an 18.5V, 65W AC power adapter for HP and Compaq laptop computers, identified by the model code N193 on its label. It converts standard AC wall power to the regulated DC output HP notebooks require, connecting via a 7.4mm x 5.0mm barrel connector. The HP spare part number is 463958-001.
Specifications & What's Included
- HP Part Number: 463552-004
- HP Spare Part Number: 463958-001
- Model Code: N193
- Output Voltage: 18.5V DC
- Output Current: 3.5A
- Power Output: 65W
- Input: 100–240V AC, 50/60Hz (universal input)

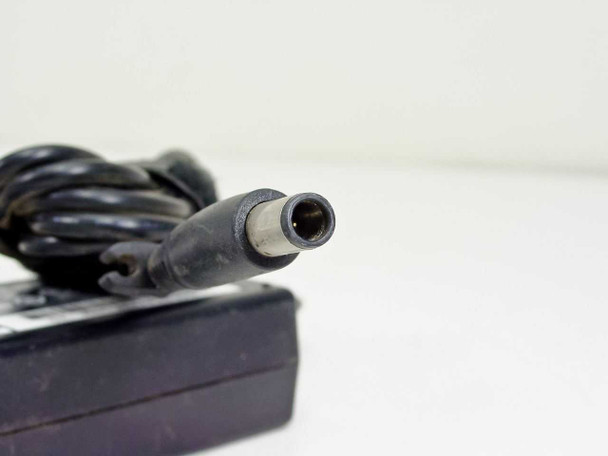

- DC Output Connector: 7.4mm x 5.0mm barrel with center pin

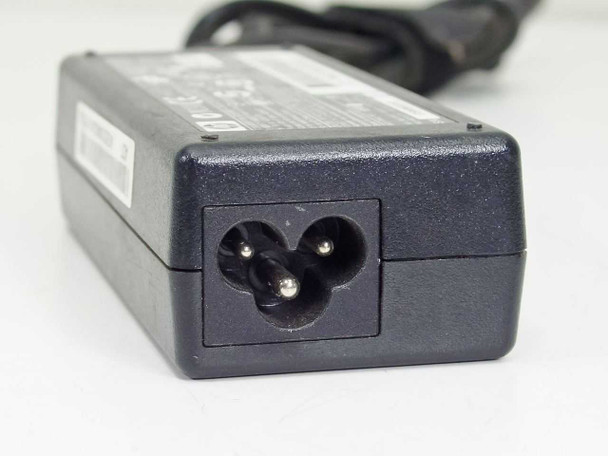

- AC Input: IEC C7 figure-8 two-prong inlet (AC wall cord not included)
- Cable: integrated DC output cable with Velcro tie wrap
- Form Factor: external brick
- Made in China
- Includes: adapter brick with DC output cable only — no AC wall cord
Applications
The HP 463552-004 is a genuine OEM AC adapter designed for HP and Compaq notebook computers that require an 18.5V, 65W power supply. Adapters in this family were widely used with HP Pavilion, HP Compaq Presario, and HP EliteBook/ProBook laptop lines from the mid-2000s through the early 2010s. The 7.4mm barrel connector was HP's standard notebook DC connector during this era, used across many models before HP transitioned to the smaller 4.5mm Smart Pin connector around 2012. This adapter is a direct replacement for a lost, damaged, or failed original charger, and can also serve as a spare or office/travel unit. The universal 100–240V AC input makes it compatible with power outlets worldwide.

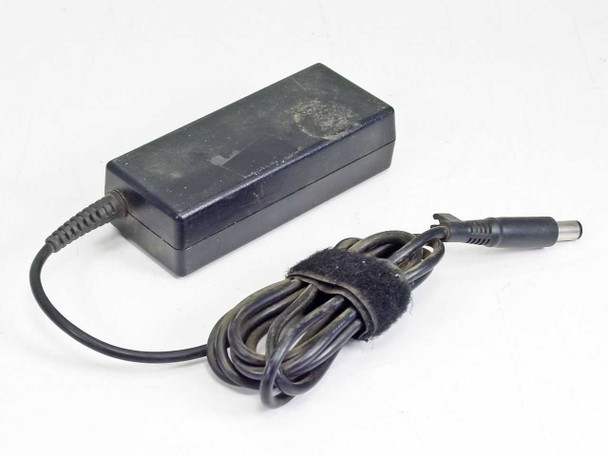

This HP 463552-004 (N193) 18.5V 65W laptop AC adapter has been tested and is in good working order. The housing shows surface dust and scuffing on the top — typical of used equipment — and the DC output cable and barrel connector are intact and undamaged. The IEC C7 AC inlet on the brick is clean. No AC wall cord is included — the adapter brick and DC output cable only. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
HP |
Model: |
N193 |
MPN: |
463552-004 |
Secondary Model: |
463958-001 |
Type: |
AC Adapter / Laptop Charger |
SKU: |
41576 |
Output Voltage: |
18.5V DC |
Output Current: |
3.5A |
Power Output: |
65W |
Input Voltage: |
100-240V AC |
Input Frequency: |
50/60Hz |
DC Connector Type: |
7.4mm x 5.0mm barrel |
AC Input Connector: |
IEC C7 (figure-8 / 2-prong) |
Compatible With: |
HP and Compaq notebook / laptop computers |
Seller Notes: |
Adapter with DC output cable included. No AC wall cord included. |
Country/Region of Manufacture: |
China |
Form Factor: |
External Brick |
Condition Notes: |
This HP 463552-004 N193 18.5V 65W laptop AC adapter has been tested and is in good working order. Housing shows surface dust and scuffing typical of used equipment. DC cable and barrel connector are intact. No AC wall cord included. |
