HP 0950-4392 AC Power Adapter 32V 500mA 15V 530mA 18W 3-Pin IEC 60950

HP 0950-4392 AC Power Adapter 32V 500mA 15V 530mA 18W 3-Pin IEC 60950

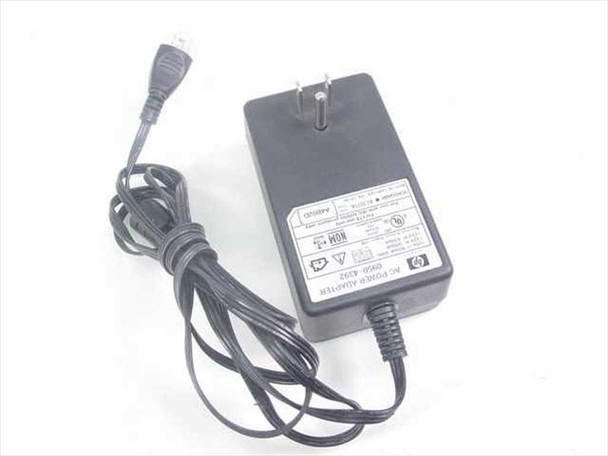

The HP 0950-4392 is an original Hewlett-Packard AC power adapter providing dual DC output rails — 32V at 500mA and 15V at 530mA — with a maximum output power of 18W. It accepts a standard 120V AC / 60Hz input and terminates in a 3-pin proprietary output connector. The adapter is rated for I.T.E. (Information Technology Equipment) use only and is certified for use with IEC 60950 products.

Specifications & What's Included

• Part Number: 0950-4392
• Type: AC Power Adapter (wall-mount brick)
• Input: 120V AC, 400mA, 60Hz
• Output 1: +32V DC, 500mA
• Output 2: +15V DC, 530mA
• Maximum Output Power: 18W
• Output Connector: 3-pin proprietary
• AC Plug: Standard US 2-prong (NEMA 1-15)
• Safety Rating: For I.T.E. use only — IEC 60950 products
• Certifications: UL Listed (E131456), LPS, NOM, NYCE
• Includes: AC adapter with attached output cable

Applications

The HP 0950-4392 is an OEM power adapter used across a range of HP inkjet printers and all-in-one devices that require a dual-voltage DC supply. HP designed these compact wall-mount adapters for desktop inkjet and multifunction printer lines produced in the late 1990s and early 2000s — equipment that needed both a higher 32V rail for the print mechanism and carriage motor, and a lower 15V rail for logic and control circuitry. This specific part number appears across multiple HP Deskjet, Officejet, and PSC series models that share the same 3-pin power interface. It is a direct OEM replacement for HP printers that originally shipped with this adapter, and is also sought by repair technicians and hobbyists working on compatible HP equipment.
