Description
HP 0950-3426 Delta DPS-110MB-1 110W 20-Pin ATX Power Supply 100-240V PSU
This is a 110W ATX power supply unit manufactured by Delta Electronics for HP desktop computers. It converts AC input to regulated DC output across multiple voltage rails via a standard 20-pin ATX main connector.
Specifications & What's Included

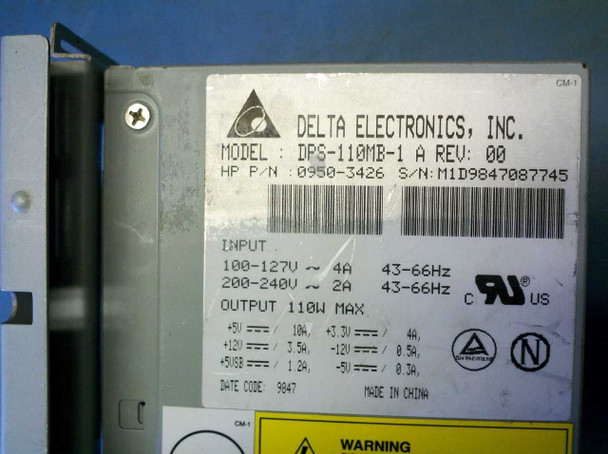

- Model: DPS-110MB-1 A (MPN: 0950-3426)
- Power Output: 110W maximum
- Input: 100–240V AC, 43–66 Hz
- Output Rails: +5V/10A, +3.3V/4A, +12V/3.5A, -12V/0.5A, -5V/0.3A, +5VSB/1.2A

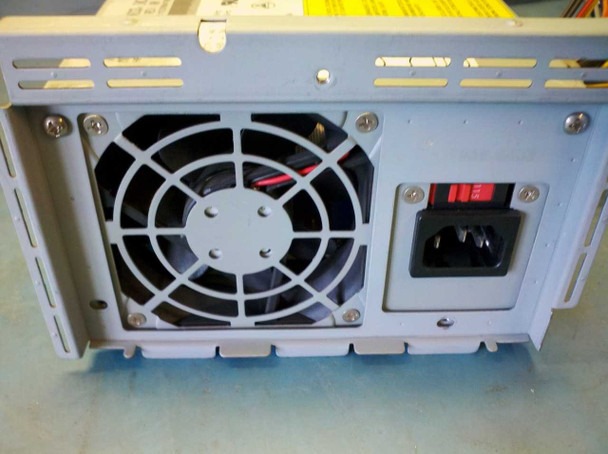

- Connector: 20-pin ATX with IEC C14 AC inlet
- Certifications: UL, CUL
- Includes all attached output harness cables
Applications
This supply was used in HP desktop computers, particularly small form factor models such as the Vectra and Pavilion SFF series. It is suited for systems requiring modest power delivery in compact configurations. The multiple voltage rails support standard ATX motherboard requirements and peripheral devices.
Condition: Used

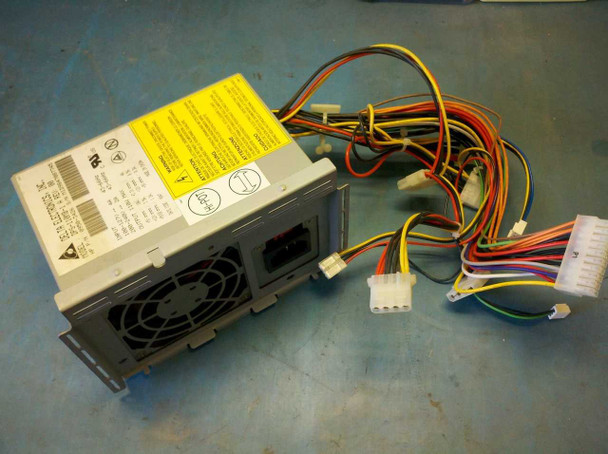

This HP 0950-3426 / Delta DPS-110MB-1 110W ATX Desktop Power Supply has been tested with a hand-held PSU tester at our facility and confirmed to be in good working order. The unit powers on and all voltage rails are functioning. Cosmetically, the unit shows normal wear consistent with prior use — light scuffing on the metal chassis — but is overall in solid used condition. The output cable harness is fully intact with all connectors present. Please view our photo set and contact us if you have any questions.
This HP 0950-3426 / Delta DPS-110MB-1 110W ATX Desktop Power Supply has been tested with a hand-held PSU tester at our facility and confirmed to be in good working order. The unit powers on and all voltage rails are functioning. Cosmetically, the unit shows normal wear consistent with prior use — light scuffing on the metal chassis — but is overall in solid used condition. The output cable harness is fully intact with all connectors present. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
HP (Hewlett-Packard) |
Manufacturer: |
Delta Electronics, Inc. |
Model: |
DPS-110MB-1 A |
Secondary Model: |
DPS-110MB-1 |
MPN: |
0950-3426 |
SKU: |
19947 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Includes all attached output harness cables. No additional accessories. |
Form Factor: |
Desktop / Small Form Factor ATX |
Power Output: |
110W Max |
Input Voltage: |
100–127V AC @ 4A / 200–240V AC @ 2A |
Input Frequency: |
43–66 Hz |
Output Voltages: |
+5V, +12V, +3.3V, -12V, -5V, +5VSB |
Output Rails: |
+5V/10A, +3.3V/4A, +12V/3.5A, -12V/0.5A, -5V/0.3A, +5VSB/1.2A |
Connector Type: |
20-Pin ATX Main Connector |
Power Connector: |
IEC C14 AC inlet |
Certifications: |
UL, CUL |
Country of Manufacture: |
China |
Hardware Revision: |
Rev 00 |
Compatible With 1: |
HP desktop computers (small form factor) |
Compatible With 2: |
HP Vectra, HP Pavilion SFF series |
Type: |
ATX Power Supply Unit (PSU) |
Condition Notes: |
This HP 0950-3426 / Delta DPS-110MB-1 110W ATX Desktop Power Supply has been tested with a hand-held PSU tester at our facility and confirmed to be in good working order. The unit powers on and all voltage rails are functioning. |
