Hiwin HGH15CAH HG15 Linear Guideway Slide 160mm Rail Heavy Load 74043-1

Hiwin HGH15CAH HG15 Linear Guideway Slide 160mm Rail Heavy Load 74043-1

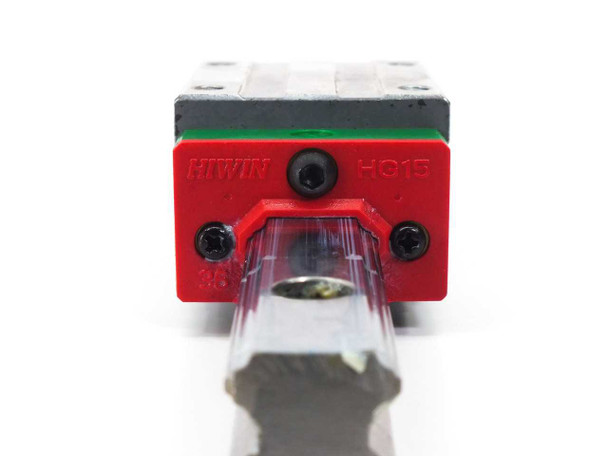

The Hiwin HGH15CAH is a heavy-load linear guideway from Hiwin's HG15 series, consisting of a 160mm profiled steel rail and a square carriage block (part number 74043-1). The carriage mounts from the top and rides on recirculating ball bearings for smooth, precise linear motion. This unit is new and unused.

Specifications & What's Included

• Manufacturer: Hiwin
• Model: HGH15CAH
• Part Number: 74043-1
• Series: HG15
• Rail Length: 160 mm
• Rail Width: 15 mm
• Carriage Platform Length: 40 mm
• Carriage Platform Width: 35 mm
• Load Rating: Heavy Load (H designation)
• Carriage Style: Square type, top-mount configuration

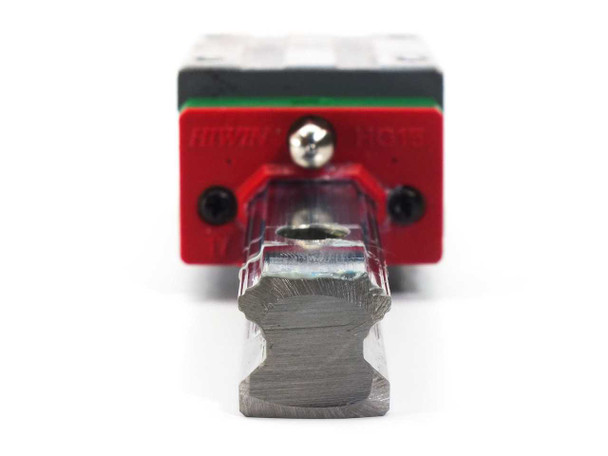

• End Seals: Red polymer end caps with lubrication port
• Includes: One 160mm HG15 rail and one HGH15CAH carriage block

Applications

Hiwin HG15 series linear guideways are widely used in CNC machine tools, laser cutters, 3D printers, pick-and-place equipment, semiconductor handling systems, and precision automation machinery. The HGH carriage designation indicates a standard-height, square-body block, which is the most common configuration for applications requiring high rigidity and load capacity in a compact form factor. The heavy-load (H) rating makes this guideway suitable for cutting and machining axes where both radial and moment loads are significant. The top-mount hole pattern allows direct bolting to a carriage plate or machine saddle without side access. Hiwin is a Taiwanese manufacturer and one of the dominant suppliers of profiled linear guideways worldwide, with the HG15 series being a standard 15mm-width class used across a broad range of industrial and motion-control applications.
