Hitachi GD-2500 DVD-ROM Drive IDE Interface Sound Port 5.25" For Parts

Hitachi GD-2500 DVD-ROM Drive IDE Interface Sound Port 5.25" For Parts

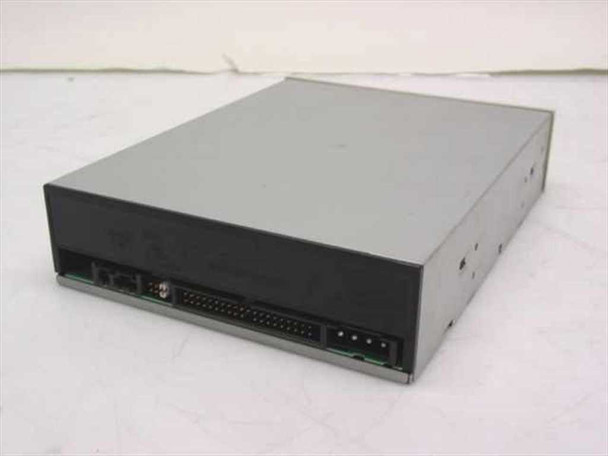

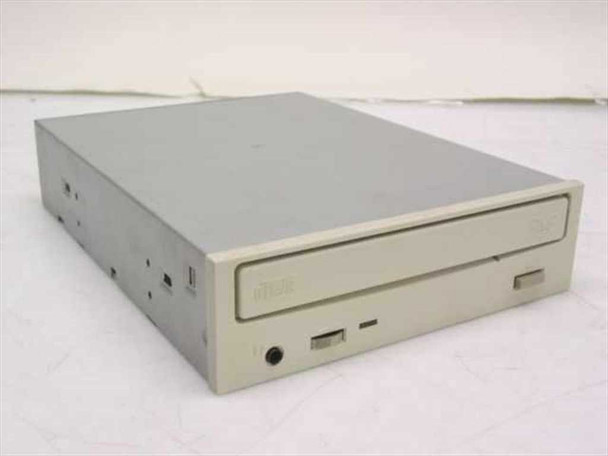

The Hitachi GD-2500 is a 5.25" half-height internal DVD-ROM drive using a 40-pin IDE (ATAPI) interface. It connects to standard desktop PC motherboards via an IDE ribbon cable and draws power from a 4-pin Molex connector. The drive also features an analog audio output (sound port) on the front panel for direct headphone or audio cable connections. This unit was manufactured in February 1999 and carries Hardware Revision A0, Type BX+.

Specifications & What's Included

• Make / Model: Hitachi GD-2500
• Drive Type: DVD-ROM (reads DVD and CD media)
• Interface: IDE / ATAPI, 40-pin ribbon connector
• Form Factor: 5.25" half-height internal desktop drive
• Power Connector: 4-pin Molex
• Audio Output: Analog sound port on front panel
• Hardware Revision: Rev A0, Type BX+
• Country of Manufacture: Japan
• Manufacture Date: February 1999
• Certifications visible on label: FCC, TÜV, Canadian ICES-003
• Drive only — no cables, software, or mounting hardware included

Applications

The GD-2500 is a late-1990s IDE DVD-ROM drive from Hitachi's early DVD lineup, released around the time DVD-ROM was just becoming standard in desktop PCs. Drives like this were used in tower and desktop computers running Windows 98, Windows 2000, and early Windows XP, and were common in office and consumer systems from roughly 1998–2001. The IDE/ATAPI interface was the dominant optical drive interface of that era before SATA took over in the mid-2000s. Today, units like this are sought by collectors restoring period-correct builds, hobbyists maintaining legacy PCs, or technicians needing a parts source for compatible IDE drives. The analog audio output was a standard feature of the era, allowing CD audio to route directly to a sound card's CD-in header before digital audio extraction became universal.
