Himel Control Box w/ Omron E2K-C25ME1 Capacitive Proximity Switch & UE J54

Himel Control Box w/ Omron E2K-C25ME1 Capacitive Proximity Switch & UE J54 Pressure Switch

This is an enclosed Himel industrial control box housing a relay panel, SMC solenoid valves, and associated wiring, sold together with two Omron E2K-C25ME1 capacitive proximity switches and a United Electric Controls J54-24 pressure switch. The enclosure features a hinged front door with a rotary handle interlock and a green indicator light, with multiple liquid-tight conduit fittings on top for cable entry. Wall-mount flanges are integrated on the sides of the enclosure.

Specifications & What's Included

• Himel wall-mount hinged-door industrial control enclosure

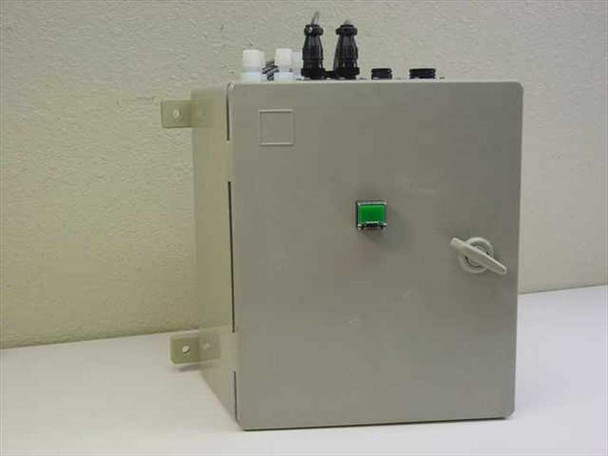

• Front panel: green indicator pilot light, rotary handle/door interlock

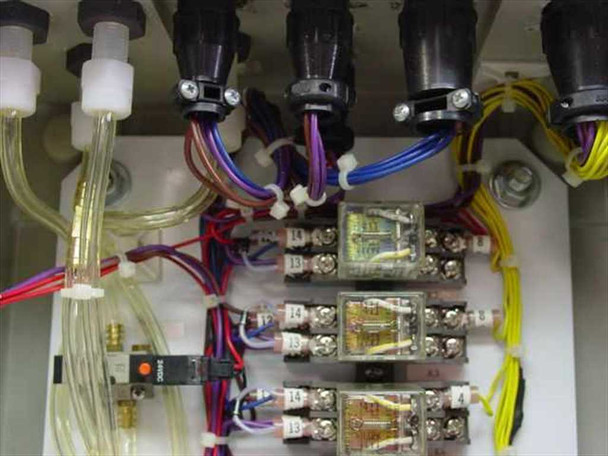

• Internal relay bank: multiple relays mounted on DIN rail with numbered terminal blocks (relay brand/model not fully legible in photos)
• SMC solenoid valves: approximately 3 units visible internally with pneumatic tubing
• Multiple liquid-tight conduit fittings on top for wiring entry/exit

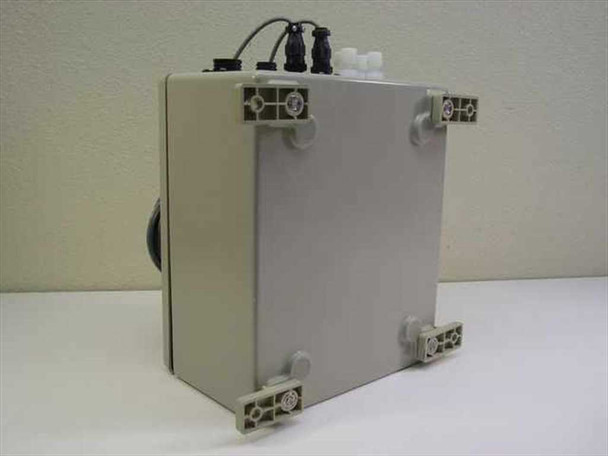

• Mounting: 4-corner wall-mount flanges
• Omron E2K-C25ME1 Capacitive Proximity Switch (qty: 2) — one enclosed inside the box, one external with mounting bracket
• Proximity switch type: Capacitive, NPN-NO output
• Proximity switch wiring: Brown (positive), Black (signal/output), Blue (negative)
• Proximity switch output current: 200 mA
• Proximity switch cable with quick-disconnect connector
• United Electric Controls J54-24 Pressure Switch (Stock No. 9637)
• Pressure range: 3–30 PSI / 20–200 KPA
• Proof pressure: 200 PSI / 1.4 MPa over set point
• Electrical rating: 15A, 480 VAC
• Wetted materials: BUNA-N, Aluminum
• Pressure switch listing: UL Listed Industrial Control Equipment (EQ 549A)
• Pressure switch cable with quick-disconnect connector and tubing ports

Applications

Industrial control enclosures of this type are used in automated manufacturing, fluid handling, and process control systems where relay switching, proximity sensing, and pressure monitoring need to be integrated in a single protected assembly. The Omron E2K-C25ME1 is a capacitive proximity sensor widely used to detect liquid levels, granular materials, or non-metallic targets through a container wall — commonly found in filling lines, packaging machinery, and chemical processing equipment. The United Electric Controls J54 series pressure switch is a well-established industrial pressure control device used in hydraulic, pneumatic, and process systems to trigger or interrupt circuits at a set pressure threshold; the J54-24's 3–30 PSI range and 480VAC rating make it suitable for low-to-medium pressure control in industrial AC-powered machinery. Together, this assembly represents a compact, wired-ready control solution suited to OEM machine builders, systems integrators, and maintenance technicians replacing or repurposing a control sub-system in automated equipment.
