Description
High Point Air Dryer Loader Plastic Pellet Desiccant Wheel 380V 3-Phase SS Hopper
The High Point Air Dryer/Loader is a floor-standing industrial desiccant wheel plastic pellet drying and conveying system. It combines hot-air drying with pneumatic pellet loading to remove moisture from hygroscopic plastic resins before injection molding or extrusion — a critical step for materials like polycarbonate, ABS, PET, and nylon where residual moisture causes defects in finished parts. This unit was in active service at a DVD disc manufacturing facility, where it dried polycarbonate pellets prior to injection molding of optical discs.
Specifications & What's Included
- Type: Desiccant wheel plastic pellet air dryer / loader (combined drying and pneumatic conveying system)
- Hopper material: Stainless steel
- Interior chamber: 16" diameter × 34" high (not including cone ends)
- Power: 380V, 3-phase
- Drying system: Desiccant wheel (rotary desiccant rotor)
- Filtration: HEPA filtered process air
- Filter requirements: 4 cylinder cartridge filters + 2 HEPA filters (filters not confirmed included — see photos)

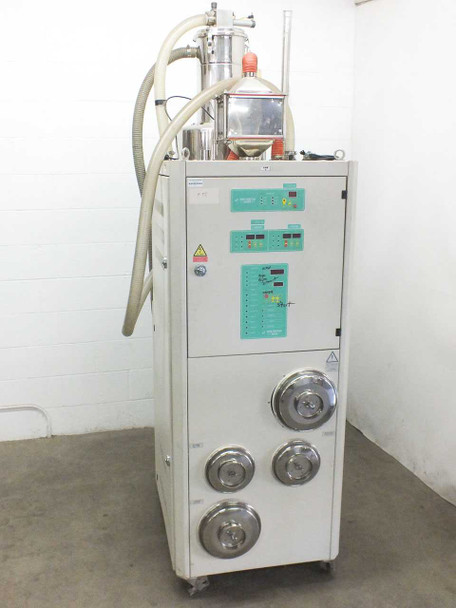

- Four stainless steel cartridge filter housings mounted on lower cabinet front panel
- Three-zone green digital control panel with LED indicator modules (visible: loader control, dryer temperature, and process/sequencing controller)

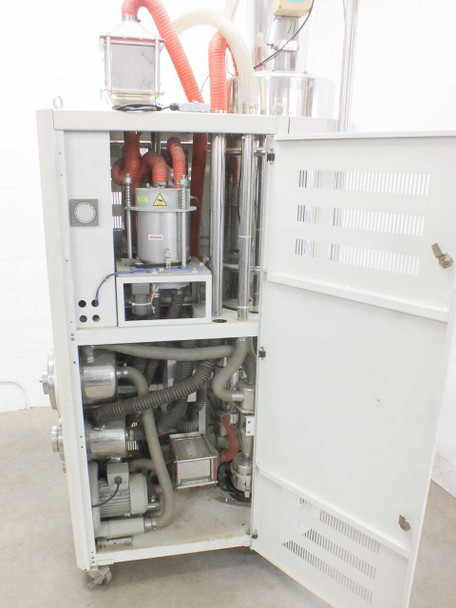

- Internal regenerative blower motors (two visible units in lower cabinet bay)
- Internal heating elements/transformer assembly (visible in upper cabinet bay)
- Pneumatic conveying manifold and actuator assembly at hopper base
- Full electrical cabinet: contactor bank, relay modules, terminal strips, and control circuit boards
- Mobile cabinet on casters
- Previously configured for polycarbonate pellet drying (injection molding of CD/DVD optical discs)
Applications
Desiccant wheel dryer/loader systems like this High Point unit are standard equipment in plastic injection molding and extrusion facilities handling hygroscopic resins. Polycarbonate, nylon, PET, ABS, and similar engineering-grade plastics absorb atmospheric moisture and must be dried to precise dew-point levels before processing — otherwise the moisture vaporizes during molding and causes splay, bubbles, or degraded material properties in the finished part. The desiccant wheel design continuously regenerates the drying medium, allowing sustained low-dew-point output without the downtime of batch desiccant systems. Combined dryer/loader units simultaneously dry and pneumatically convey pellets directly to the injection molding machine throat, eliminating manual handling. This unit served a high-volume optical disc (CD/DVD) manufacturing line, a process that requires exceptionally consistent polycarbonate melt quality. These systems are also used in medical device molding, automotive component production, packaging, and general-purpose engineering plastics processing.
This High Point plastic pellet air dryer/loader has been visually inspected and appears to be in good cosmetic condition overall — the stainless steel hopper interior is clean and shows no visible damage, and the cabinet exterior is intact with normal scuffs and surface marks consistent with industrial use. It came out of a DVD disc manufacturing facility that closed, where it was used to dry polycarbonate pellets for injection molding. We are selling this unit as-is for parts or repair because we do not have the ability to power or test it. The four stainless steel cartridge filter housings are present on the front of the lower cabinet. The electrical cabinet shows a full contactor bank, relay modules, and control circuit boards that appear intact. The internal blower motors, transformer, and plumbing/pneumatic assemblies are visible and present. Some minor wear is visible at the hopper-to-cabinet seam (white material shows surface marks). Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
High Point |
Model: |
High Point Air Dryer Loader |
Type: |
Plastic Pellet Desiccant Wheel Air Dryer / Loader |
SKU: |
45407 |
Condition: |
As-Is / For Parts or Not Working |
Hopper Material: |
Stainless Steel |
Interior Chamber Diameter: |
16 inches |
Interior Chamber Height: |
34 inches (not including cone ends) |
Power Requirements: |
380V, 3-Phase, 50/60Hz |
Phase: |
Three Phase |
Voltage: |
380V |
Filtration: |
HEPA Filtered; requires 4 cylinder cartridge filters + 2 HEPA filters |
Filter Requirements: |
4 cylinder cartridge filters and 2 HEPA filters |
Application: |
Plastic pellet / resin drying for injection molding |
Compatible Materials: |
Polycarbonate, ABS, PET, Nylon and other hygroscopic resins |
Seller Notes: |
Sold as-is for parts or repair; cannot test. Ex-DVD manufacturing facility. |
Provenance: |
Removed from DVD disc manufacturing facility; used for injection molding pellet drying |
Form Factor: |
Floor-Standing / Mobile Cabinet on Casters |
Country/Region of Manufacture: |
Japan |
Condition Notes: |
High Point plastic pellet air dryer/loader. Inspected — good cosmetic condition. Pulled from a closed DVD manufacturing facility. Sold as-is for parts or repair; we cannot power or test it. No functionality guaranteed. |
