Hi Capacity AC-C25H Notebook AC Adapter 19V 4.74A Barrel Plug 90W LE-0112A-19
The Hi Capacity AC-C25H is a 90-watt notebook AC adapter designed to power laptops and portable devices requiring a 19V DC barrel-plug supply. Manufactured by Hi Capacity Power Products, it accepts universal AC input (100–240V, 50/60Hz) and delivers a regulated 19V / 4.74A DC output via a standard barrel plug connector.
Specifications & What's Included

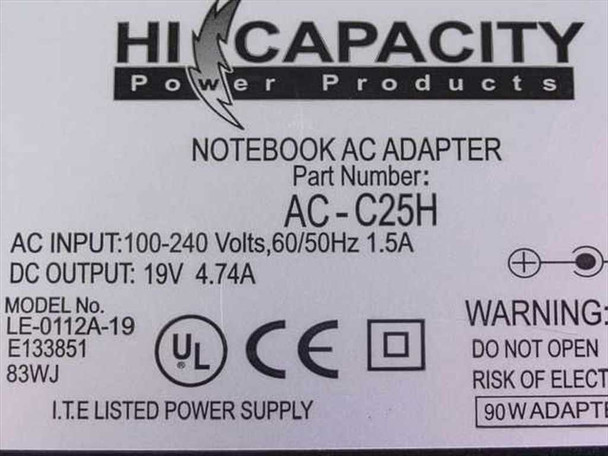

- Part Number: AC-C25H
- Secondary Model Number: LE-0112A-19
- Type: Notebook / Laptop AC Adapter (I.T.E. Listed Power Supply)
- AC Input: 100–240V, 50/60Hz, 1.5A (universal voltage)
- DC Output: 19V, 4.74A
- Power Rating: 90W
- Output Connector: Barrel plug
- Input Connector: IEC C7 figure-8 (2-prong)
- Certifications: UL Listed (E133851), CE marked

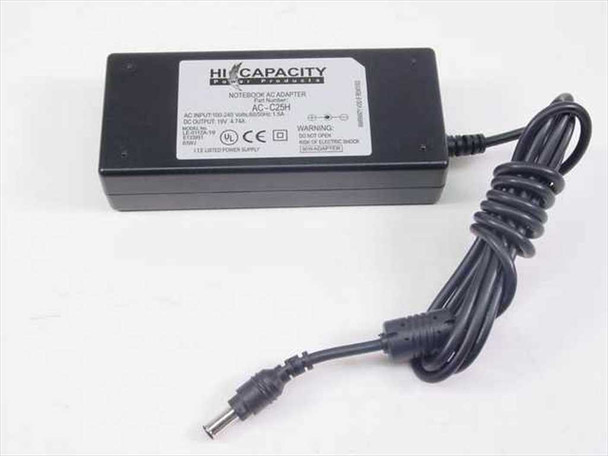

- Includes: Adapter unit with attached DC output cable and barrel plug; IEC C7 input end (AC cord not included)
Applications
Universal-input notebook AC adapters like the AC-C25H are widely used to power laptops and portable computing devices that run on 19V DC. Hi Capacity Power Products has supplied replacement and OEM-style adapters for a broad range of notebook platforms, and the AC-C25H's 100–240V input makes it suitable for use in North America and internationally. The barrel plug output is a common connector type found on many Toshiba, Acer, Asus, and compatible laptops from the mid-2000s onward that specified a 19V / 4.74A supply. This adapter is also a typical choice for lab benches, field kits, or anywhere a reliable 19V / 90W regulated supply with a standard barrel plug is needed as a replacement or spare.
This Hi Capacity AC-C25H Notebook AC Adapter has been inspected and appears to be in good used condition. The unit shows light surface wear consistent with normal handling. Both the barrel plug output and the IEC C7 input connector are intact with no visible damage. The adapter has not been powered up or tested at our facility, but it was pulled from a working environment where it was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Hi-Capacity |
Model: |
AC-C25H |
MPN: |
AC-C25H |
Secondary Model: |
LE-0112A-19 |
SKU: |
26170 |
Type: |
Notebook AC Adapter / Laptop Power Supply |
AC Input Voltage: |
100-240V AC |
AC Input Frequency: |
50/60Hz |
AC Input Current: |
1.5A |
DC Output Voltage: |
19V DC |
DC Output Current: |
4.74A |
Power Output: |
90W |
Output Connector: |
Barrel Plug |
Input Connector: |
IEC C7 (Figure-8 / 2-prong) |
Compatibility: |
Laptops and notebooks requiring 19V DC barrel plug |
Certifications: |
UL, CE — I.T.E. Listed Power Supply |
Seller Notes: |
Includes adapter unit with attached output cable and barrel plug connector. |
Country/Region of Manufacture: |
China |
Condition Notes: |
This Hi Capacity AC-C25H Notebook AC Adapter is in good used condition with light surface wear. Barrel plug and IEC input connector are intact. Not tested at our facility; pulled from a working environment. |
