Description

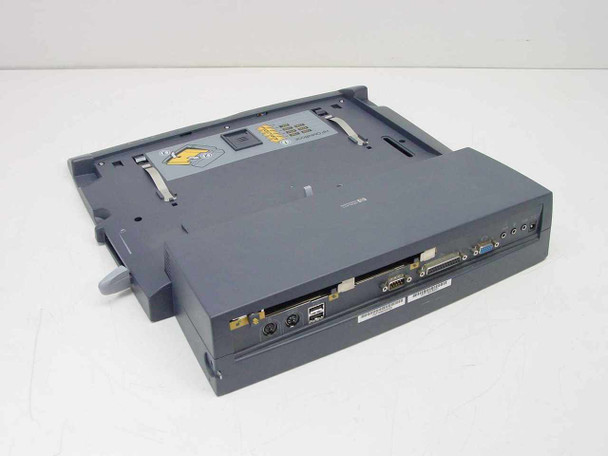

HP F1452A OmniBook Mini Dock 4100 900 6000 Series Laptop Docking Station
The HP F1452A OmniBook Mini Dock is a desktop docking station designed specifically for HP OmniBook 4100, 900, and 6000 series laptops. It expands the laptop's connectivity by adding a full set of desktop-style ports through a single proprietary docking connector, letting users go from mobile to desktop setup without reconnecting individual cables.
Specifications & What's Included
- Manufacturer: Hewlett-Packard (HP)
- Model: F1452A OmniBook Mini Dock
- Compatible with: HP OmniBook 4100, OmniBook 900, OmniBook 6000 series laptops

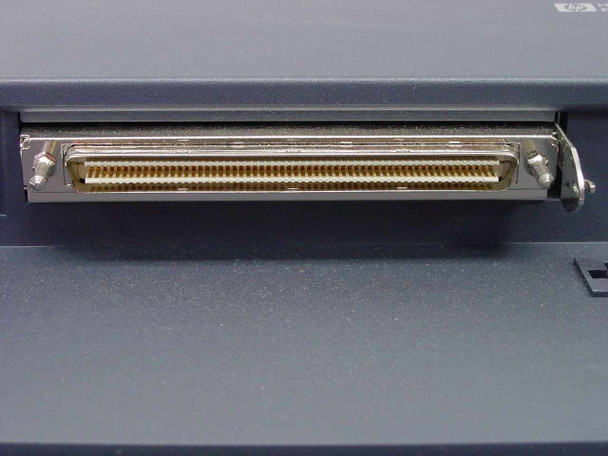

- Docking interface: HP OmniBook proprietary high-density edge connector (visible on top of dock)

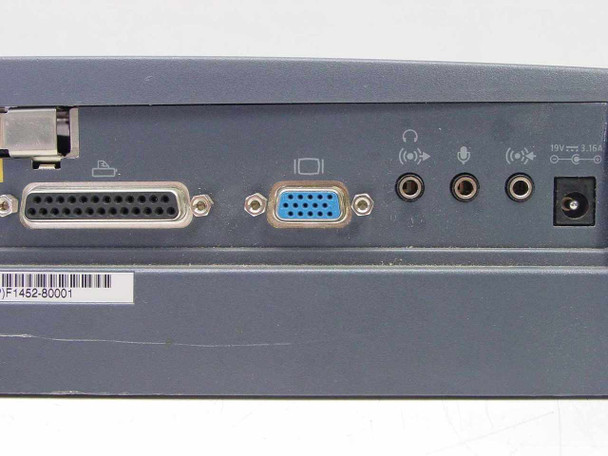

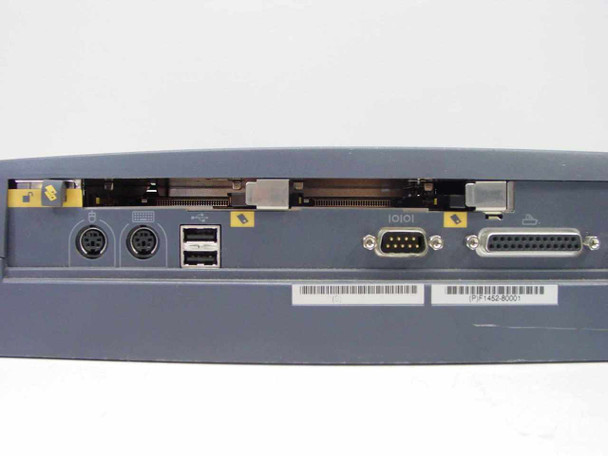

- Rear ports: USB (2x), PS/2 (2x — keyboard and mouse), Serial DB9, Parallel DB25, VGA DB15
- Audio ports: Headphone out, Microphone in, Line in
- DC power input: 19V, 3.16A (power adapter not included)

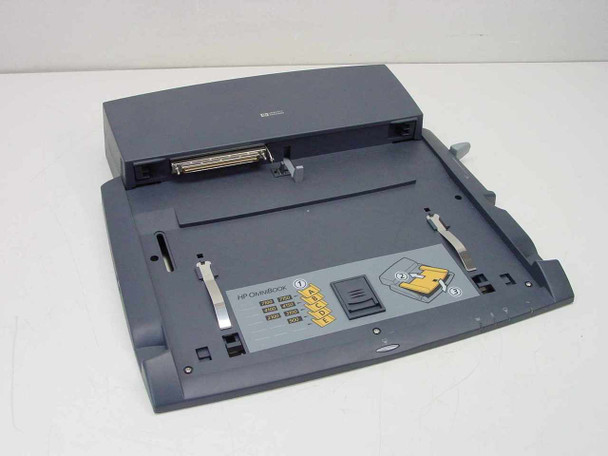

- Form factor: Flat desktop dock with laptop cradle and alignment guides

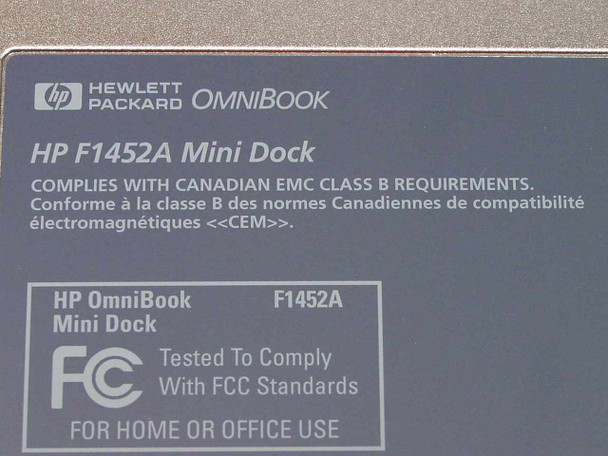

- Compliance: FCC certified; Canadian EMC Class B
- Dock unit only — no power adapter, cables, or laptop included
Applications
HP introduced the OmniBook Mini Dock in the late 1990s to give OmniBook laptop users a convenient way to connect to a full desktop environment — monitor, printer, keyboard, mouse, and other peripherals — with a single docking motion rather than plugging in multiple cables. The F1452A targets the OmniBook 4100, 900, and 6000 series, which were HP's mainstream and business-class thin-and-light laptops of the era. These docks remain useful today for anyone maintaining or actively using one of these OmniBook models, particularly in legacy-support, industrial, or data-recovery contexts where the original platform must be kept running.
This HP F1452A OmniBook Mini Dock has been inspected and appears to be in good used condition. The housing shows light surface wear typical of used equipment, but there are no cracks, breaks, or significant cosmetic damage visible. The docking connector and rear ports appear clean and intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
HP |
Model: |
F1452A |
MPN: |
F1452A |
SKU: |
35963 |
Type: |
Laptop Docking Station / Mini Dock |
Compatible With: |
HP OmniBook 4100, OmniBook 900, OmniBook 6000 Series |
Form Factor: |
Desktop / Flat Dock |
Ports: |
Parallel, Serial (DB9), VGA (DB15), USB, Audio In/Out, DC Power |
Connector Interface: |
HP OmniBook proprietary docking connector |
Power Input: |
19V DC, 3.16A |
Compliance: |
FCC, Canadian EMC Class B |
Seller Notes: |
Dock unit only — no power adapter, cables, or laptop included. |
Condition Notes: |
This HP F1452A OmniBook Mini Dock has been inspected and is in good used condition. Light surface wear is present but no cracks or significant damage. Docking connector and ports appear clean and intact. |
