HP Hewlett Packard F1451A OmniBook 6000 Port Replicator Docking USB VGA Serial

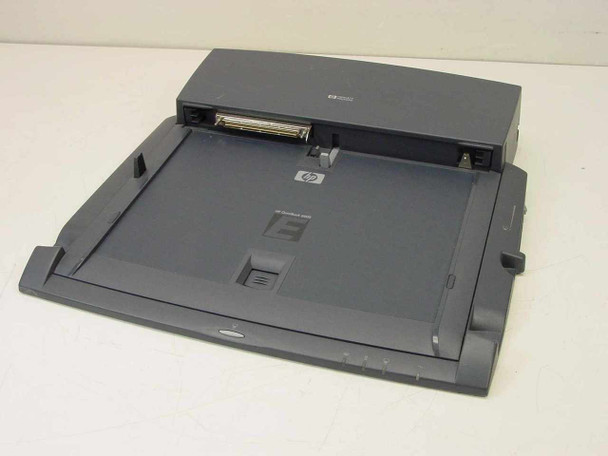

The HP F1451A is a port replicator designed for the HP OmniBook line of laptops, providing a stationary desk setup with a full complement of legacy and standard connectivity ports. The OmniBook slides into the cradle via a proprietary docking connector, instantly extending the laptop's connectivity without plugging and unplugging individual cables each time.
Specifications & What's Included
- Manufacturer: Hewlett-Packard (HP)
- Model: F1451A
- Part Number: F1451-80001
- Type: Port Replicator / Docking Station
- Docking interface: Proprietary HP OmniBook multi-pin connector
- USB: 2x USB ports (rear)
- Video: 1x VGA (DB15) output
- Serial: 1x DB9 serial port
- Parallel: 1x DB25 parallel port
- PS/2: 2x PS/2 ports (mouse and keyboard)
- Audio: Headphone, microphone, and line-in jacks
- PC Card: 1x PC Card / PCMCIA slot (side)
- Power: DC power jack with on/off switch
- Form factor: Desktop port replicator with laptop cradle

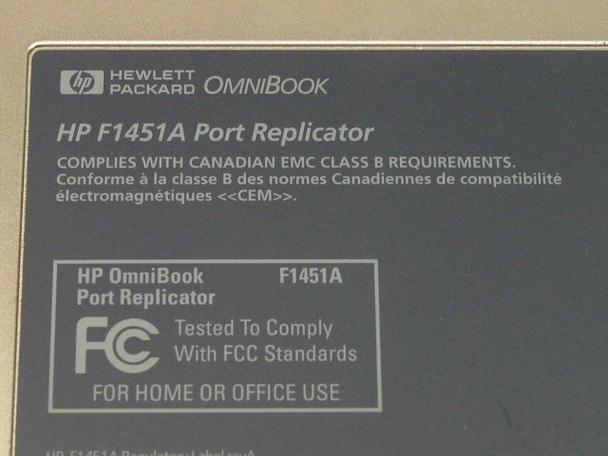

- Compliance: FCC Class B, Canadian EMC Class B

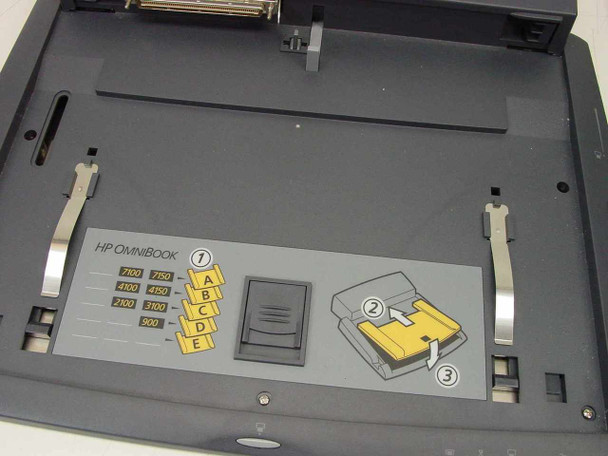

- Compatible models per internal label: HP OmniBook 7100, 7150, 4100, 4150, 2100, 3100, 900, and 6000 series
- Included: Port replicator unit only — no power adapter or cables
Applications
Port replicators like the HP F1451A are designed for users who regularly move their laptop between a mobile environment and a fixed desk setup. Rather than reconnecting a monitor, keyboard, mouse, printer, and other peripherals each time, the laptop drops into the replicator once and all peripherals stay connected. The F1451A was built for the HP OmniBook laptop line of the late 1990s and early 2000s — a series of slim business notebooks aimed at mobile professionals. The OmniBook series was notable for its compact design at a time when most business laptops were considerably bulkier. This replicator remains useful for anyone maintaining or actively using OmniBook hardware, and the standard VGA, serial, parallel, and PS/2 ports also make it relevant in legacy industrial and point-of-sale environments where older peripherals are still in service.

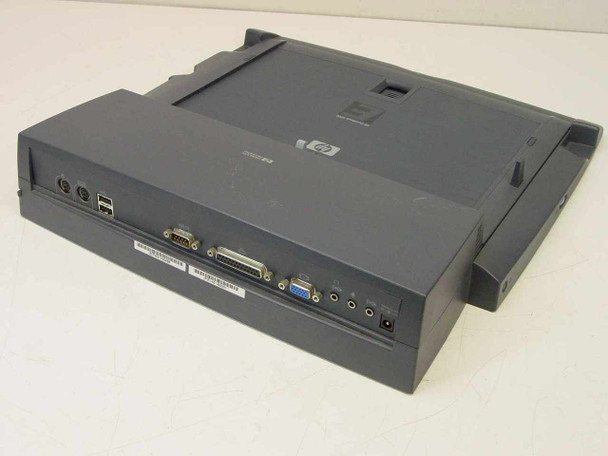

This HP F1451A OmniBook 6000 Port Replicator has been inspected and is in good used condition. The unit shows typical light wear consistent with office use — the dark gray plastic housing is clean with no cracks or significant scuffing visible in the photos. All rear ports (USB, VGA, serial, parallel, PS/2, and audio) appear intact, and the proprietary docking connector shows clean gold pins. The dock was not powered or bench-tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
HP |
Model: |
F1451A |
MPN: |
F1451A |
Secondary Model: |
F1451-80001 |
Type: |
Port Replicator / Docking Station |
SKU: |
35956 |
Compatible With: |
HP OmniBook 6000 |
Compatible With 2: |
HP OmniBook 7100, 7150, 4100, 4150 |
Compatible With 3: |
HP OmniBook 2100, 3100, 900 |
Ports Included: |
USB x2, VGA, Serial DB9, Parallel DB25, PS/2 x2, Audio |
USB Ports: |
2x USB |
Video Output: |
VGA (DB15) |
Serial Port: |
1x DB9 Serial |
Parallel Port: |
1x DB25 Parallel |
PS/2 Ports: |
2x PS/2 (Mouse and Keyboard) |
Audio Ports: |
Headphone, Microphone, Line-In |
Docking Interface: |
Proprietary HP OmniBook connector |
Form Factor: |
Desktop Port Replicator |
Standards: |
FCC Class B, Canadian EMC Class B |
Seller Notes: |
Port replicator only — no power adapter or cables included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This HP F1451A OmniBook 6000 Port Replicator has been inspected and is in good used condition with light cosmetic wear. Ports appear intact. Not powered or bench-tested at our facility. Please view photos and contact us with any questions. |
