HP J3264A JetDirect 500X Token Ring External Print Server Parallel NetWare

HP J3264A JetDirect 500X Token Ring External Print Server Parallel NetWare

The HP JetDirect 500X (model J3264A) is an external print server designed specifically for Token Ring network environments. It allows any parallel-port-equipped printer to be connected directly to a Token Ring LAN, making network printing available to multiple users and workstations simultaneously without requiring a dedicated print host PC. This unit is new and unused, still in its original HP retail box.

Specifications & What's Included

• Model: HP JetDirect 500X — Part Number J3264A, Option ABA (US)
• Type: External print server for Token Ring networks
• Network Interface: Token Ring LAN
• Printer Interface: Parallel port
• Compatible Printers: Any parallel-port printer including HP LaserJet series, HP DeskJet series, HP OfficeJet Pro, HP LaserJet 1100A

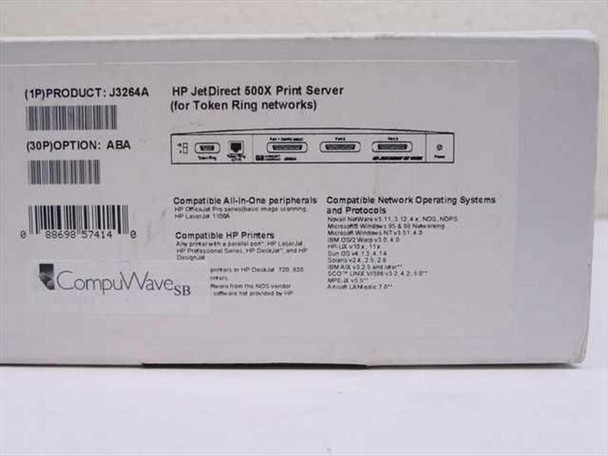

• Supported Network Operating Systems: Novell NetWare v3.11, 3.12, 4.x (NDS, NCP/S); Microsoft Windows 95, 98, NT v3.51 and NT 4.0; IBM OS/2 Warp v3.0 and 4.0; Artisoft LANtastic v5.x, 2.5, 2.8; Banyan VINES; MPC-LAN; NFS (as listed on retail box)
• Compatible HP All-in-One Peripherals: HP OfficeJet Pro series image scanning/fax/copier products
• Form Factor: External desktop unit
• Condition: New in original retail box

Applications

The HP JetDirect 500X was designed for corporate and institutional networks built on the IEEE 802.5 Token Ring standard — the dominant alternative to Ethernet in the late 1980s through the 1990s, widely deployed in IBM-centric environments running OS/2, Novell NetWare, and early Windows NT. Token Ring networks used a deterministic ring topology and were common in banks, hospitals, universities, and large enterprises that standardized on IBM infrastructure. The JetDirect 500X allowed these sites to share printers across the Token Ring LAN without needing a dedicated server to spool print jobs, reducing administrative overhead. Today, Token Ring infrastructure is largely retired, but this unit is valuable to anyone maintaining a legacy Token Ring network or restoring period-correct IBM computing environments. It also suits collectors and institutions preserving 1990s network infrastructure. Novell NetWare and IBM OS/2 environments in particular relied heavily on HP JetDirect print servers for centralized printing.
