HP 54002A 50 Ohm 1 GHz BNC Input Pod HP 54100A 54110D Oscilloscope 5Vrms Max
The HP 54002A is a 50 ohm, 1 GHz BNC input pod designed for use with Hewlett-Packard digitizing oscilloscopes and the HP 54300A Probe Multiplexer. It provides a properly terminated 50 ohm signal path at the oscilloscope input, allowing accurate high-frequency signal acquisition up to 1 GHz without the impedance mismatch and reflections that occur with a standard 1 MΩ input. This unit includes the original HP 54002A Operating Note dated April 1986.
Specifications & What's Included
- Model: HP 54002A
- Type: 50 Ohm Input Pod
- Input Impedance: 50 Ω
- Bandwidth: 1 GHz
- Input Connector: BNC (front-facing)
- Maximum Input: 50Ωdc, 5 Vrms MAX
- Rear Interface: Multi-pin oscilloscope module connector
- Compatible With: HP 54100A, HP 54100D, HP 54110D Digitizing Oscilloscopes; HP 54300A Probe Multiplexer
- Includes: HP 54002A Operating Note, April 1986
Applications
The HP 54002A input pod is used with HP's 54100-series digitizing oscilloscopes — instruments introduced in the mid-1980s that were among the first high-speed digitizing scopes capable of capturing fast single-shot and repetitive signals at gigahertz bandwidths. By presenting a true 50 ohm termination directly at the oscilloscope's input module, the 54002A eliminates standing waves and ensures the signal integrity needed for accurate high-frequency measurements in RF, microwave, digital, and pulse-circuit work. It was designed to replace or supplement the standard 1 MΩ input pod when measuring low-impedance sources such as RF signal generators, transmission lines, or high-speed logic drivers. These pods remain useful today for anyone maintaining or operating a 54100A, 54100D, or 54110D oscilloscope, as the 50 ohm input module is often a wear item or is simply missing from used instruments found on the surplus market.

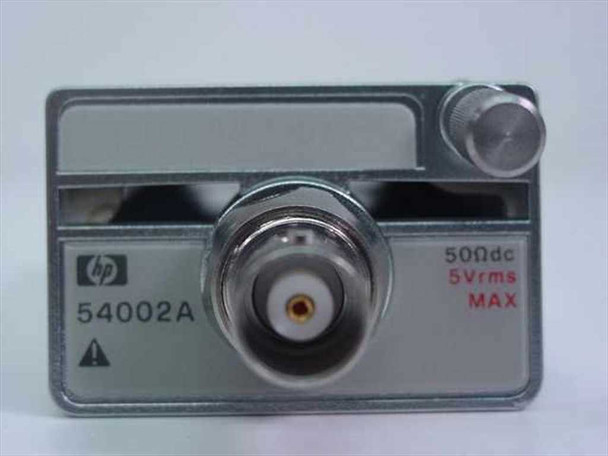

This Hewlett-Packard HP 54002A 50 Ohm Input Pod has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in use. The pod body shows normal light wear consistent with lab use; the BNC connector and rear interface pins appear clean and intact as seen in the photos. The original HP 54002A Operating Note (April 1986) is included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
HP |
Model: |
54002A |
MPN: |
54002A |
SKU: |
26309 |
Type: |
50 Ohm Input Pod |
Input Impedance: |
50 Ohm |
Bandwidth: |
1 GHz |
Connector Type: |
BNC |
Maximum Input Voltage: |
5 Vrms MAX, 50Ω dc |
Compatible With 1: |
HP 54100A Digitizing Oscilloscope |
Compatible With 2: |
HP 54100D Digitizing Oscilloscope |
Compatible With 3: |
HP 54110D Digitizing Oscilloscope |
Compatible With 4: |
HP 54300A Probe Multiplexer |
Form Factor: |
Module / Pod |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes original HP 54002A Operating Note (April 1986). |
Condition Notes: |
This HP 54002A 50 Ohm Input Pod is in good used condition, pulled from a working environment. BNC connector and rear interface pins appear clean and intact. Includes original HP Operating Note (April 1986). |
