Description

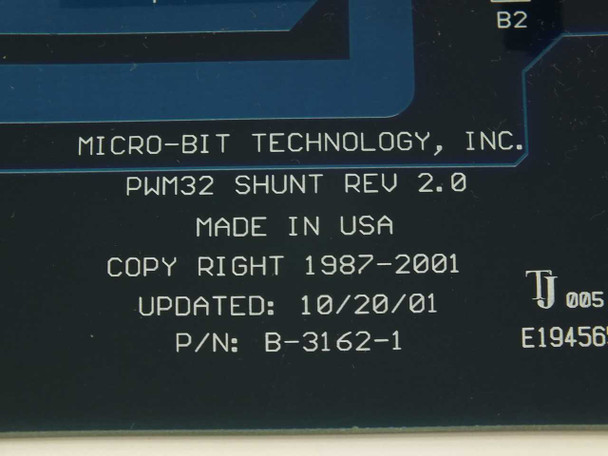

Headway Research B-3162-1 PWM32 Shunt Board Rev 2.0 Micro-Bit Technology
The Headway Research B-3162-1 is a PWM32 Shunt Board (Revision 2.0) manufactured by Micro-Bit Technology, Inc. This board is a direct replacement component for the Headway Research PWM32 Photo Resist Spinner Coater system, providing PWM-based shunt control for spinner motor regulation. It was designed and updated through 2001 and is made in the USA.
Specifications & What's Included
- Part Number: B-3162-1
- Board Designation: PWM32 Shunt Rev 2.0
- Manufacturer: Micro-Bit Technology, Inc.
- Compatible System: Headway Research PWM32 Photo Resist Spinner Coater
- Country of Manufacture: USA
- Copyright / Updated: 1987–2001; last updated 10/20/2001
- Large electrolytic capacitors: four units rated 100V (markings visible on components)
- Gold anodized power resistor (wirewound) mounted on board
- Red LED indicator on board
- Multiple green screw-terminal blocks along all four board edges for system wiring connections
- Small component sub-assembly (daughter section) with additional circuitry
- Four corner mounting holes
- Board only — no additional accessories or packaging
Applications
The Headway Research PWM32 is a well-established photoresist spin coating system widely used in semiconductor device fabrication, MEMS research, microelectronics, and university cleanroom environments. Spin coaters deposit a uniform thin film of photoresist onto wafers or substrates by spinning them at controlled RPM; the PWM shunt board regulates motor speed through pulse-width modulation, enabling precise, repeatable spin profiles critical to consistent resist thickness. Headway Research spinners have been a cleanroom standard since the 1980s, and replacement boards like the B-3162-1 are sought after to keep aging but reliable systems operational. This board is appropriate for labs and fabs maintaining PWM32 systems for continued wafer processing or R&D use.
This Headway Research B-3162-1 PWM32 Shunt Board (Rev 2.0, by Micro-Bit Technology) is a new, unused replacement unit in open-box condition. The board shows no signs of use or installation. Photos show the PCB is clean and undamaged, with all components — capacitors, power resistor, terminal blocks, and sub-assembly — intact and properly mounted. Original packaging may not be included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Micro-Bit Technology |
Model: |
B-3162-1 |
MPN: |
B-3162-1 |
Secondary Model: |
PWM32 Shunt Rev 2.0 |
Type: |
PWM Shunt Control Board |
SKU: |
50086 |
Compatible With: |
Headway Research PWM32 Photo Resist Spinner Coater |
Revision: |
Rev 2.0 |
Country/Region of Manufacture: |
United States |
Updated Date: |
10/20/2001 |
Copyright Date: |
1987–2001 |
Form Factor: |
PCB / Board |
Seller Notes: |
Board only — no additional accessories included. |
Application: |
Photoresist Spin Coating / Semiconductor Wafer Processing |
Condition Notes: |
This Headway Research B-3162-1 PWM32 Shunt Board Rev 2.0 is a new, unused open-box replacement. The PCB is clean and undamaged with all components intact. Original packaging may not be included. |
