Headway Research 800-404A PWM32 Motor Module Spin Coater Spinner System
The Headway Research 800-404A is a PWM32 Motor Module designed as a direct replacement for the Headway Research PWM32 Photo Resist Spinner Coater System. This module provides pulse-width modulated motor drive control for the spinner's DC motor, regulating speed with tachometer feedback and supporting enable, fault, and reset logic via its J2 signal connector. This is a new, open box replacement unit in unused condition.
Specifications & What's Included
- Manufacturer: Headway Research
- Model: PWM32
- Part Number: 800-404A
- Type: PWM Motor Drive Module
- Compatible System: Headway Research PWM32 Photo Resist Spinner Coater
- J1 Connector — Motor Power: Motor (+) Pin 1, Motor (−) Pin 2, GND Pin 3, GND Pin 4, +HV Pin 5

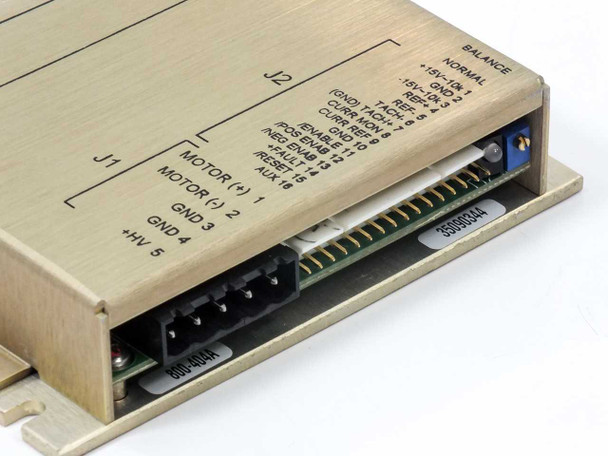

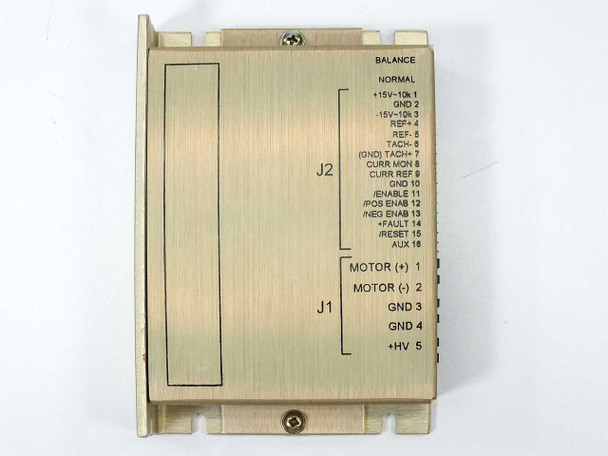

- J2 Connector — Signal/Control (16-pin ribbon): +15V, GND, −15V, REF+, REF−, TACH, (GND) TACH−, CURR MON, CURR REF, GND, /ENABLE, /POS ENAB, /NEG ENAB, +FAULT, /RESET, AUX

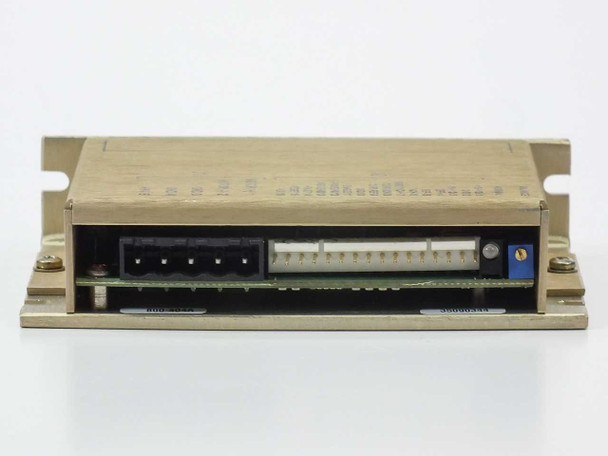

- Additional front-edge card connector visible (PCB edge connector for system backplane interface)
- Enclosed aluminum module housing with integrated mounting brackets

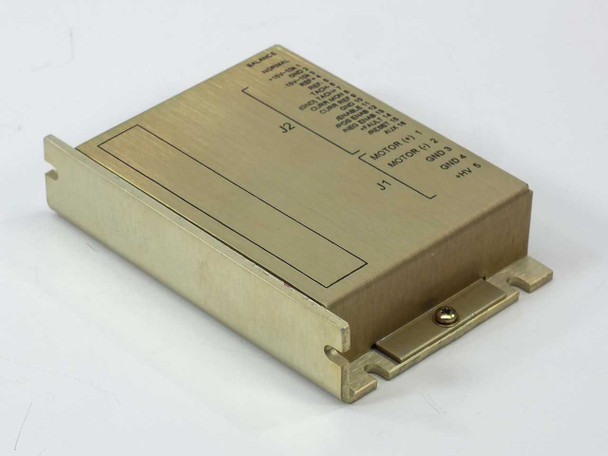

- BALANCE / NORMAL selector label visible on front face
- Module only — no additional cables or accessories included
Applications
The Headway Research PWM32 is a well-established photoresist spin coater platform widely used in semiconductor device fabrication, MEMS research, photolithography labs, and university cleanrooms. The coater deposits uniform thin films of photoresist onto silicon wafers and other substrates by spinning them at controlled RPM. The 800-404A PWM32 Motor Module is the drive and control heart of this system, governing motor speed through closed-loop PWM control with tachometer feedback — critical for achieving repeatable, uniform resist thickness across wafers. Replacement motor modules like this one are sought after by labs maintaining legacy Headway PWM32 systems, as the coater platform has remained in continuous service in academic and industrial fabs for decades. Compatible with Headway Research PWM32 spinner coater systems.
This Headway Research 800-404A PWM32 Motor Module is new and unused — a new open box replacement unit for the Headway Research PWM32 Photo Resist Spinner Coater System. The module shows no signs of use or wear. The housing is clean and all connectors appear intact and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Headway Research |
Model: |
PWM32 |
MPN: |
800-404A |
SKU: |
50087 |
Type: |
PWM Motor Drive Module |
Compatible With: |
Headway Research PWM32 Photo Resist Spinner Coater |
Connector J1: |
Motor (+) 1, Motor (-) 2, GND 3, GND 4, +HV 5 |
Connector J2: |
16-pin signal connector (tach, enable, fault, reset, ref, curr mon) |
Form Factor: |
Enclosed Module / Card Cage Insert |
Application: |
Photoresist spin coating, semiconductor wafer processing |
Seller Notes: |
Module only — no additional cables or accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Headway Research 800-404A PWM32 Motor Module is new and unused — open box replacement for the Headway PWM32 Spin Coater. No signs of use; clean housing, connectors intact. |
