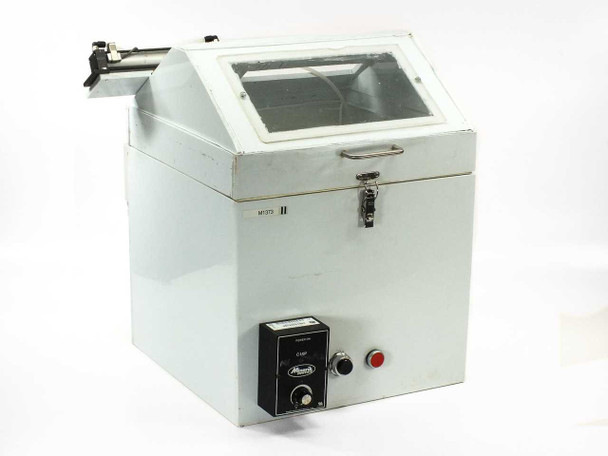

  • HDPE spin coating chamber front-right view showing Minarik C1XP drive controller panel, transparent hinged lid, carry handle, and power buttons

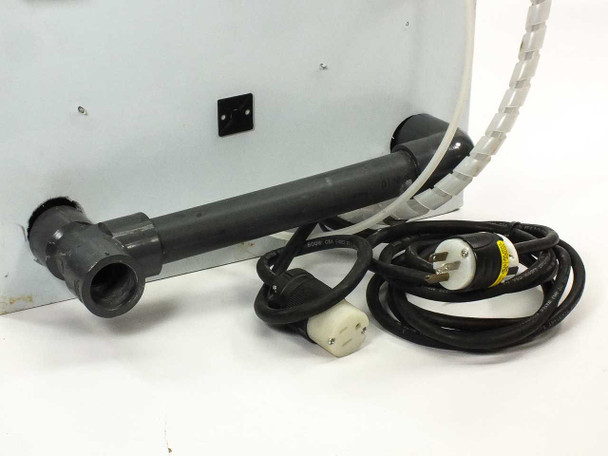

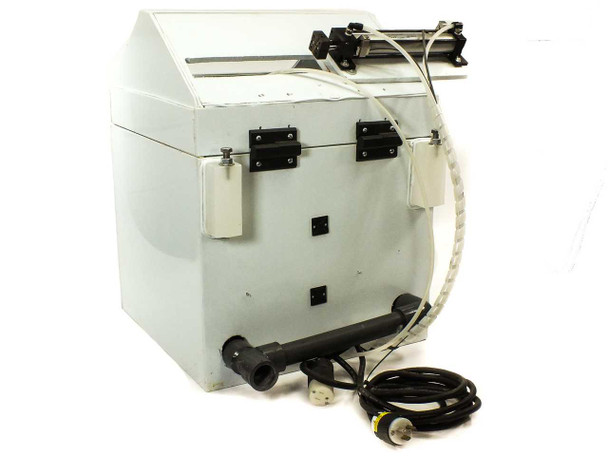

  • HDPE spin coating chamber rear view showing Norgren linear actuator mounted on top, power cable with twist-lock connector, and drain port

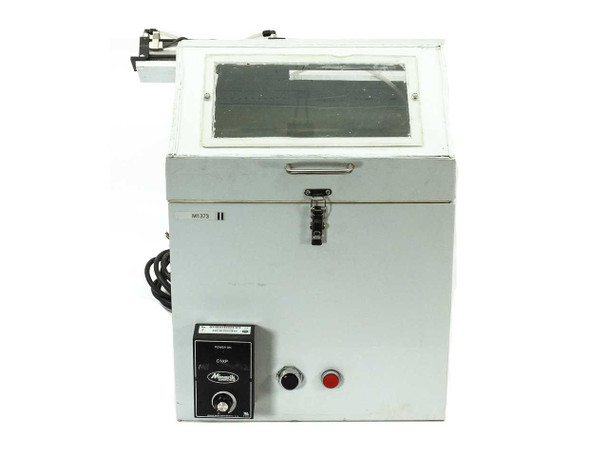

  • HDPE spin coating chamber front-left view showing Minarik Drives C1XP controller with speed knob, power-on indicator, black and red push buttons

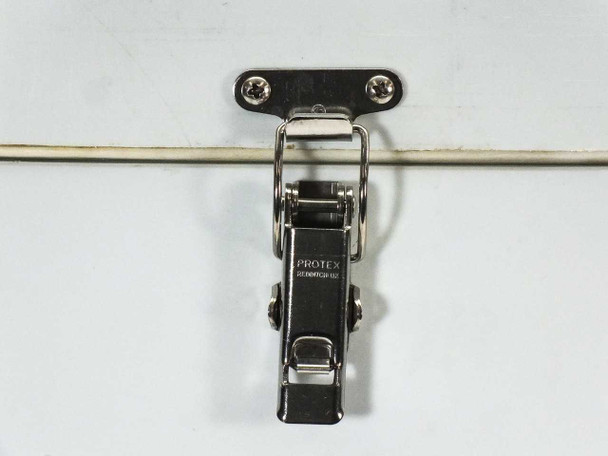

  • Close-up of Protex stainless steel toggle latch securing the chamber lid to the main body

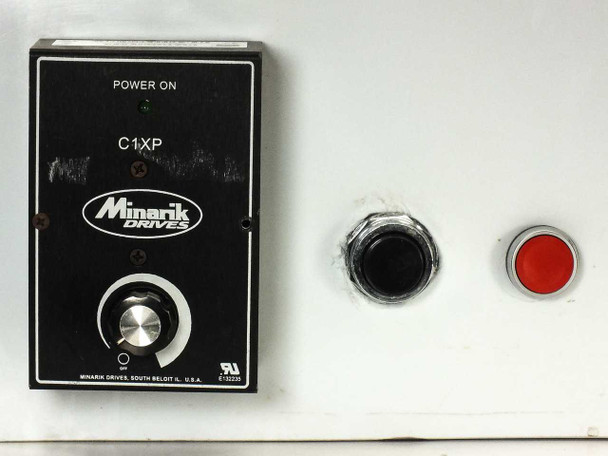

  • Close-up of Minarik Drives C1XP controller face panel showing POWER ON LED, speed control knob, and UL/CSA certification markings

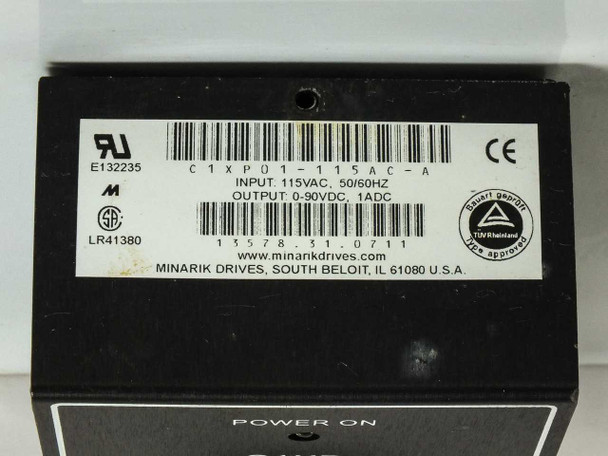

  • Close-up of Minarik C1XP01-115AC-A rating label showing INPUT 115VAC 50/60Hz and OUTPUT 0-90VDC 1ADC specifications

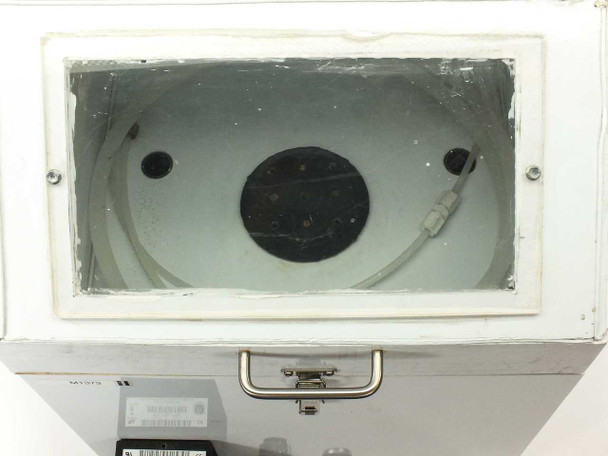

  • Interior chamber view through hinged transparent lid showing circular spin chuck or substrate holder and tubing

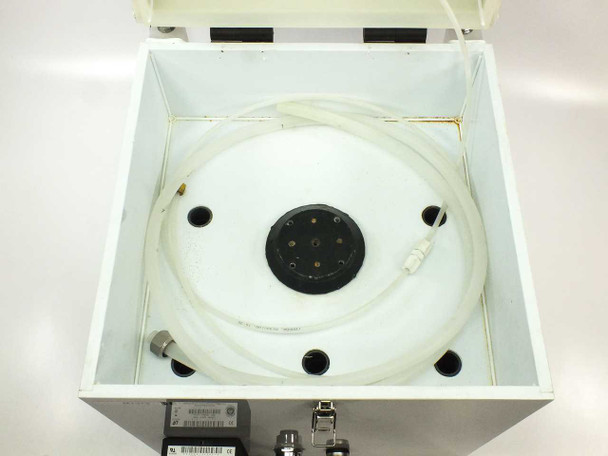

  • Top-down open interior view of HDPE chamber showing circular spin chuck with multi-pin connector, white HDPE coated walls, drain/feed tubing, and fittings

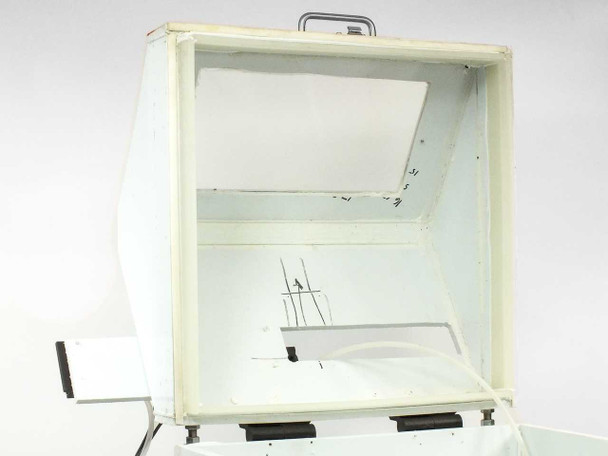

  • Interior view with lid fully open showing white HDPE-lined walls, drain fitting, and handwritten measurement markings

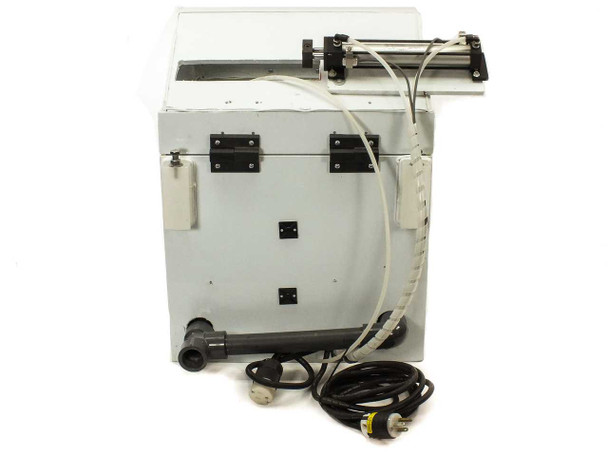

  • HDPE spin coating chamber rear view showing Norgren linear actuator assembly on top rail, power cord, drain tube, and rear panel hardware
  • HDPE Spinning Chamber w/ Miniarik Drive Controller and Norgren Linear Actuator
  • HDPE Spinning Chamber w/ Miniarik Drive Controller and Norgren Linear Actuator
  • HDPE Spinning Chamber w/ Miniarik Drive Controller and Norgren Linear Actuator
  • HDPE Spinning Chamber w/ Miniarik Drive Controller and Norgren Linear Actuator
  • HDPE Spinning Chamber w/ Miniarik Drive Controller and Norgren Linear Actuator
  • HDPE Spinning Chamber w/ Miniarik Drive Controller and Norgren Linear Actuator
  • HDPE Spinning Chamber w/ Miniarik Drive Controller and Norgren Linear Actuator
  • HDPE Spinning Chamber w/ Miniarik Drive Controller and Norgren Linear Actuator
  • HDPE Spinning Chamber w/ Miniarik Drive Controller and Norgren Linear Actuator
  • HDPE Spinning Chamber w/ Miniarik Drive Controller and Norgren Linear Actuator
  • HDPE Spinning Chamber w/ Miniarik Drive Controller and Norgren Linear Actuator
$500.00
Was: $1,000.00
Current Stock: 1

Sold Out

Description

HDPE Spin Coating Chamber Minarik C1XP01-115AC-A Norgren NB07A Linear Actuator

This is an HDPE-lined spin coating chamber assembly integrating a Minarik Drives C1XP01-115AC-A DC motor drive controller and a Norgren NB07A pneumatic linear actuator. The chamber features a hinged, transparent-lidded enclosure with Protex toggle latches and a front-panel speed control, designed to house a spinning substrate during coating processes. The circular spin chuck, internal fluid tubing, and fittings are present inside the chamber.

Specifications & What's Included

  • Chamber material: HDPE (High-Density Polyethylene) lined enclosure
  • Interior dimensions (excluding lid volume): 15.5" W × 15.5" D × 5" H
  • Lid: hinged transparent viewing lid with Protex stainless steel toggle latch
  • Carry handle on lid
  • DC Drive Controller: Minarik Drives C1XP01-115AC-A
  • Drive input: 115VAC, 50/60Hz
  • Drive output: 0–90VDC, 1ADC
  • Front panel: speed control knob, POWER ON LED indicator, black and red push buttons
  • Linear actuator: Norgren NB07A-E02-AABMO
  • Actuator bore: 1-1/8 inch; stroke: 7 inches
  • Actuator mounted on rear top-rail assembly
  • Internal circular spin chuck with multi-pin connector
  • Internal white HDPE-coated walls with fluid drain/feed tubing and fittings
  • Power cord with twist-lock plug included
  • Drain port tube on rear panel

Applications

Spin coating chambers like this one are used in photolithography, thin-film deposition, and semiconductor wafer processing to apply uniform layers of photoresist, sol-gel solutions, polymers, or other liquid coatings onto flat substrates. The enclosed HDPE chamber contains solvent fumes and protects the spin process from contamination, while the transparent lid allows visual monitoring during operation. The integrated Minarik DC drive provides variable-speed control of the spin chuck motor, and the Norgren linear actuator typically drives a lid or substrate-positioning mechanism. This type of equipment is found in university cleanrooms, R&D semiconductor labs, MEMS fabrication, optical coating research, and small-scale electronics manufacturing environments. HDPE construction is chosen for its chemical resistance to the acids, solvents, and developers commonly used in photolithography processes.

Condition: Used
This HDPE Spin Coating Chamber with Minarik C1XP01-115AC-A DC drive controller and Norgren NB07A linear actuator has been inspected and appears to be in good used condition. The white painted exterior shows some scuffing and minor surface marks consistent with prior lab use. The interior HDPE lining is intact with no visible cracking; the circular spin chuck and internal tubing are present. The Protex lid latch operates normally, and the transparent viewing lid is present and intact. The Minarik C1XP01-115AC-A controller and speed-control knob are present on the front panel. The Norgren linear actuator is mounted and present on the rear rail assembly. Power cord with twist-lock plug is included. Please view our photo set and contact us if you have any questions.
