Description
Hayes Accura 144+Fax 5302AM ISA Modem 04-00726 V4.0 8-Bit 14.4K 1994
The Hayes Accura 144+Fax 5302AM is a vintage 8-bit ISA internal modem from 1994, designed for dial-up data and fax communication in IBM-compatible desktop PCs. It connects to a standard phone line via RJ-11 and supports both data transmission at up to 14.4 Kbps (V.32bis) and Group 3 fax capability. A second RJ-11 port allows a handset or telephone to share the line.
Specifications & What's Included
- Brand: Hayes Microcomputer Products
- Model: 5302AM (Accura 144+Fax)
- Part Number: 04-00726
- Hardware Revision: V4.0
- Bus Interface: 8-bit ISA
- Max Data Speed: 14.4 Kbps (V.32bis)
- Fax Speed: 14.4 Kbps (Class 2 fax)
- Connectors: 2x RJ-11 (Line In and Phone/Handset)
- Status Indicator LEDs on bracket (visible on bracket face)
- Main chipset: STARTECH controller (visible on PCB)
- On-board speaker for call-progress audio
- Country of manufacture: Canada (per PCB marking)

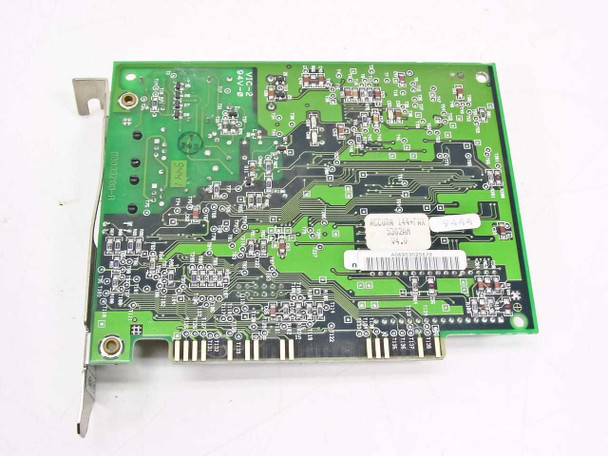

- Date code: Q44 1994 (per PCB label)
- Card only — no software, cables, or documentation included
Applications
The Hayes Accura 144+Fax line was among the most widely deployed internal modems of the early-to-mid 1990s DOS and Windows 3.x era, when Hayes was the dominant name in PC dial-up communications and the "AT command set" it pioneered became the de facto industry standard for modem control. This 8-bit ISA form factor made the card compatible with a broad range of IBM PC/XT/AT and 386/486-class machines — virtually any ISA-equipped desktop of the period. At 14.4 Kbps it represented the mainstream performance tier of its day, used for BBS access, early internet dial-up via CompuServe or AOL, and PC-based faxing before broadband made these cards obsolete. Today, Hayes ISA modems are sought by vintage PC enthusiasts and retro computing hobbyists restoring period-correct machines, as well as by those maintaining legacy industrial or embedded systems that still rely on dial-up connectivity or POTS-based fax.
This Hayes Accura 144+Fax 5302AM 8-bit ISA modem has been inspected and is in good used condition. It was pulled from a working environment where it was previously in use and functional. The PCB is clean with no obvious damage, broken traces, or missing components. The RJ-11 ports and bracket appear intact. Normal light wear consistent with prior installation is present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Hayes |
Model: |
5302AM |
MPN: |
04-00726 |
Secondary Model: |
Accura 144+Fax |
Hardware Revision: |
V4.0 |
Type: |
Internal Fax Modem |
SKU: |
44558 |
Condition: |
Used – Pulled from Working Environment |
Form Factor: |
8-Bit ISA Card |
Bus Interface: |
ISA (8-bit) |
Max Data Rate: |
14.4 Kbps (V.32bis) |
Fax Speed: |
14.4 Kbps (Class 2) |
Connector Type: |
RJ-11 (Line + Phone) |
Number of Ports: |
2 (Line In, Phone/Handset) |
Chipset: |
STARTECH (visible on PCB) |
Date Code / Year: |
1994 (Q44 date code on PCB label) |
Compatible With: |
IBM PC/XT/AT, DOS, Windows 3.x |
Country/Region of Manufacture: |
Canada |
Seller Notes: |
Card only; no software, cables, or documentation included. |
Condition Notes: |
Hayes Accura 144+Fax 5302AM ISA modem. Inspected, good used condition. Pulled from a working environment where it was in use and functional. PCB clean, ports intact. Please view photos and contact us with questions. |
