Description
Hauppauge WinTV 470000-06 ISA TV Tuner Video Capture Card ICS1572M Windows 9x

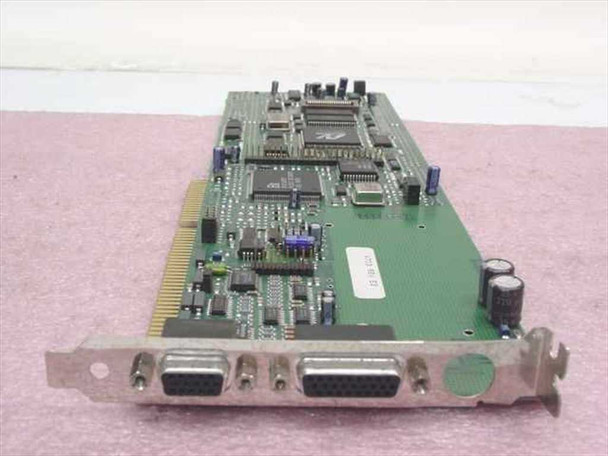

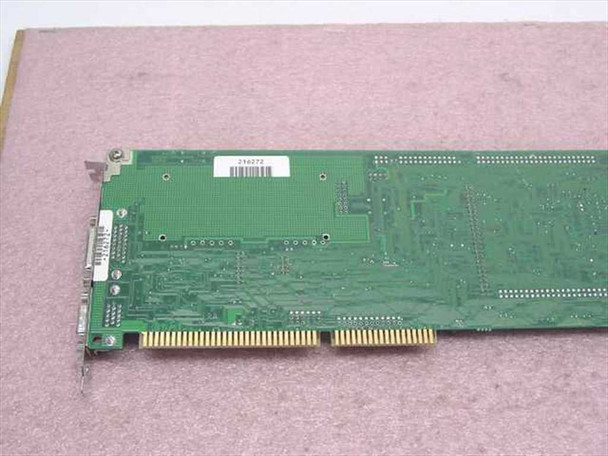

The Hauppauge WinTV 470000 is an ISA bus TV tuner and analog video capture card produced by Hauppauge Computer Works, Inc. in Hong Kong. Designed for installation in IBM PC/AT-compatible desktop computers equipped with an ISA slot, it allows the host PC to receive analog broadcast and cable TV signals and capture video input through its onboard tuner and video processing hardware. This example carries PCB revision 470000-06 and includes the ICS1572M clock synthesizer IC (ICS 9516-301) among its onboard components.
Specifications & What's Included
- Manufacturer: Hauppauge Computer Works, Inc.
- Product line: WinTV
- Model / Part Number: 470000 (PCB revision 470000-06)
- Bus interface: ISA (Industry Standard Architecture) — full-length ISA card
- Signal type: Analog TV tuner / composite video capture
- Bracket connectors: Two DB-15 female connectors and one DB-9 connector
- Notable onboard IC: ICS1572M clock synthesizer (ICS 9516-301 AT500M43A)
- Country of manufacture: Hong Kong (per PCB silkscreen)
- Included: Card only — no cables, drivers, or software
Applications
The Hauppauge WinTV series were among the most widely used TV tuner and video capture cards of the mid-to-late 1990s, designed for Windows 95 and Windows 98 PCs with available ISA slots. They enabled desktop computers to display live analog broadcast and cable television, capture video to disk, and in some configurations output to an external monitor via a VGA passthrough. The WinTV ISA cards are now primarily of interest to collectors and hobbyists restoring period-correct Windows 9x systems, as well as builders of vintage PC projects requiring analog TV input. ISA-bus expansion cards of this generation predate PCI TV tuners and represent an earlier approach to multimedia PC expansion from the early Windows era.
This Hauppauge WinTV 470000-06 ISA TV Tuner and Video Capture Card is being sold AS-IS for parts or repair. The card appears to power up, but we do not have the necessary drivers to perform a full functional test and cannot confirm working order. It is sold with no functionality guarantee. The card is in used condition with normal wear consistent with age and previous installation. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Hauppauge |
Model: |
WinTV 470000 |
MPN: |
470000-06 |
Type: |
ISA TV Tuner / Video Capture Card |
SKU: |
34372 |
Seller Notes: |
Card only — no cables, drivers, or software included. |
Country/Region of Manufacture: |
Hong Kong |
Form Factor: |
ISA Card |
Bus Interface: |
ISA (Industry Standard Architecture) |
Chipset: |
ICS1572M (ICS 9516-301 AT500M43A clock synthesizer) |
PCB Revision: |
470000-06 |
Connector Types: |
DB-15, DB-9 |
Compatible Platform: |
IBM PC / AT compatible, ISA slot required |
Signal Type: |
Analog TV / Composite Video |
Manufacturer: |
Hauppauge Computer Works, Inc. |
Condition Notes: |
This Hauppauge WinTV 470000-06 ISA TV Tuner Card is sold AS-IS for parts or repair. Drivers unavailable for full testing — cannot confirm working order. No functionality guarantee. Please review photos and contact us with questions. |
