Haskris LX3-A2 Indoor Lab Water Chiller Air-Cooled 6.6kW R407C 208-230V

Haskris LX3-A2 Indoor Lab Water Chiller Air-Cooled 6.6kW R407C 208-230V

The Haskris LX3-A2 is an indoor, air-cooled precision water chiller designed for laboratory and process cooling applications. It uses R407C refrigerant and delivers 6.6 kW of cooling capacity through a dual-fan air-cooled condenser, with tight supply temperature stability of ±0.05°C. The unit stands on casters for easy positioning and connects to process water via standard 1/2-inch female NPT fittings.

Specifications & What's Included

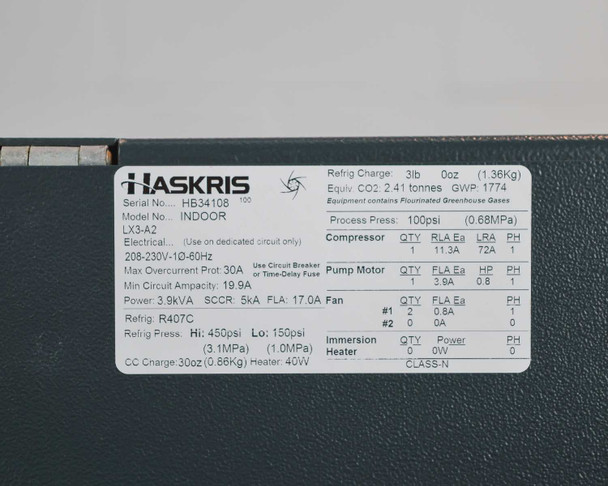

• Model: Haskris LX3-A2 (Indoor)
• Cooling Capacity – Air-Cooled Condenser: 6.6 kW
• Cooling Capacity – Water-Cooled Condenser: 6.9 kW
• Refrigerant: R407C
• Refrigerant Charge: 3 lb 0 oz (1.36 kg)
• Equivalent CO₂: 2.41 tonnes GWP 1774
• Electrical: 208–230V, Single Phase, 60Hz (dedicated circuit required)
• Min Circuit Ampacity: 19.9A
• Max Overcurrent Protection: 30A (circuit breaker or time-delay fuse)
• Estimated Power: 3.9 kVA; SCCR: 5 kA; FLA: 17.0A (fan)
• Compressor: Siam PE36NTBMT refrigerant compressor, 2400W, 208–230V 60Hz; RLA 11.3A, LRA 72A; manufactured 06/2017

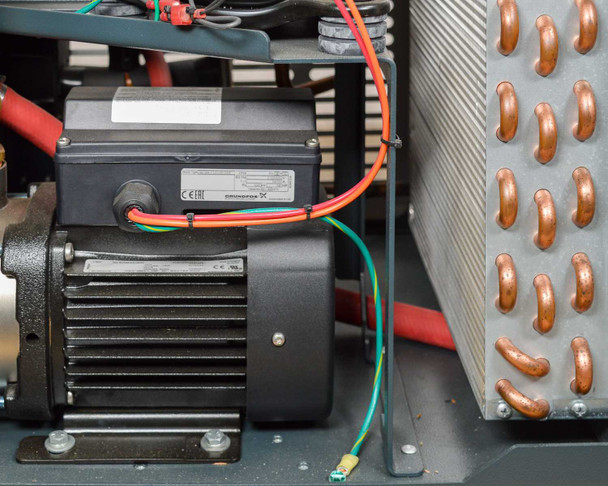

• Pump Motor: Grundfos circulation pump; 3.9A FLA, 0.8 HP
• Condenser: Dual air-cooled condenser fans (visible on rear panel)
• Min Flow Capacity: 3.5 GPM
• Supply Temperature Stability: ±0.05°C
• Water Connection Size: 1/2 inch Female NPT
• Reservoir Volume: 2.4 gal
• Process Pressure: 100 psi (0.68 MPa)
• Refrigerant Pressure – High: 450 psi (3.1 MPa)
• Refrigerant Pressure – Low: 150 psi (1.0 MPa)
• CC Charge: 30 oz (0.86 kg); Heater: 40W

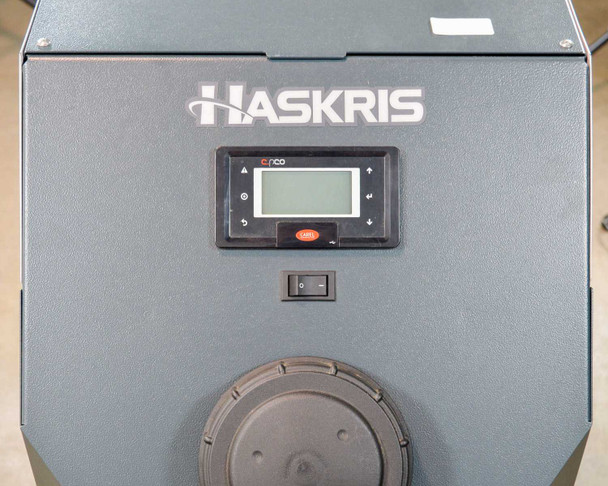

• Controller: E-ico digital display with LCD readout and navigation buttons

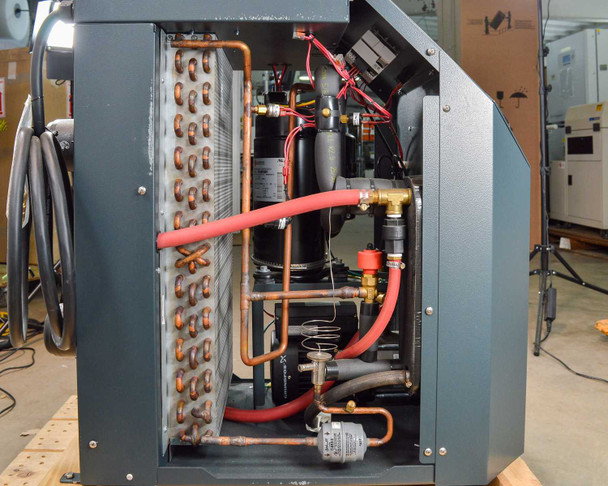

• Refrigerant filter-drier: CatchAll C-053-S (Sporlan Valve Company) inline on refrigerant circuit
• Certifications: ETL Listed – Conforms to UL STD 471; Certified to CSA STD C22.2 No. 120 (Intertek 4007522)
• Mobility: Floor-standing on casters
• Includes: Unit as shown; hoses/cables visible in photos

Applications

Precision laboratory water chillers like the Haskris LX3-A2 are used wherever a stable, controlled coolant supply is required — including laser systems (solid-state, CO₂, and diode lasers), electron microscopes and SEM/TEM instruments, NMR spectrometers, semiconductor process tools, analytical instruments, and general laboratory bench equipment with liquid-cooling requirements. The ±0.05°C temperature stability makes the LX3-A2 well suited to applications that are sensitive to coolant temperature variation. Air-cooled indoor units like this one are particularly convenient for facilities without facility water or cooling tower access — the unit exhausts heat into the room air via the dual rear condenser fans and requires only a power connection and process water loop to operate. Haskris has been a recognized manufacturer of laboratory and industrial recirculating chillers for decades, with units in service at universities, government labs, and semiconductor facilities worldwide.
