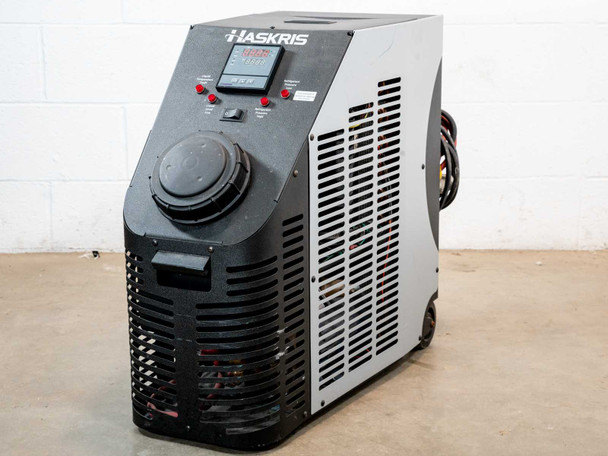

Haskris LX2-A2 Air-Cooled Lab Water Chiller 2.3kVA 208V R407C ±0.05°C

Haskris LX2-A2 Air-Cooled Lab Water Chiller 2.3kVA 208V R407C ±0.05°C

The Haskris LX2-A2 is a compact, air-cooled recirculating water chiller designed for precision temperature control in laboratory and light industrial applications. It uses R407C refrigerant and a Carel PLC controller to maintain coolant temperature to within ±0.05°C of set point (±0.005°C with optional upgrade), making it well suited for laser systems, analytical instruments, electron beam equipment, and other process loads that require stable, closely regulated coolant temperature. The unit is floor-standing and self-contained, with an integrated air-cooled condenser requiring no external cooling water.

Specifications & What's Included

• Model: Haskris LX2-A2
• Serial Number: HB32220
• Power: 2.3 kVA
• Electrical: 208–230V, Single Phase, 60 Hz
• Max Overcurrent Protection: 15A
• Minimum Circuit Ampacity: 11.7A
• SCCR: 5 kA
• Refrigerant: R407C
• Refrigerant Charge: 2 lbs 3 oz (0.99 kg)
• Cooling Capacity – Air-Cooled Condenser: 3.4 kW
• Cooling Capacity – Water-Cooled Condenser: 3.8 kW
• Minimum Flow Capacity: 3.5 GPM
• Supply Temperature Stability: ±0.05°C (±0.005°C optional)
• Reservoir Volume: 1.4 gallons
• Water Connection Size: 1/2" Female NPT
• Process Pressure: 100 psi (0.6 MPa)
• Dimensions (W × D × H): 15 × 32 × 35 inches
• Controller: Carel PLC with digital display
• Front Panel Indicators: Liquid Temperature Fault, Liquid Level Low, Refrigerant Pressure Low, Refrigerant Pressure High
• Pump Motor: 0.3 HP, 2.9A FLA, single phase
• Compressor: 3.4A RLA, 38A LRA
• Fan Motors: 2 × 0.28A FLA, single phase
• CC Heater: 40W
• Condenser Type: Air-Cooled (indoor use)
• Form Factor: Floor-standing / freestanding on casters
• Includes: External filter canister (clear housing) and coolant hoses as shown in photos

Applications

Haskris recirculating chillers are used throughout semiconductor fabrication, photonics, laser manufacturing, and precision analytical instrument labs where stable coolant temperature is critical to process performance or equipment protection. The LX2-A2's ±0.05°C stability makes it appropriate for cooling loads such as ion lasers, UV laser systems, electron microscopes, X-ray sources, plasma etch tools, and high-power RF or microwave components — any application where temperature drift in the coolant loop would cause measurement error or equipment stress. Because it is air-cooled, the LX2-A2 does not require a facility chilled-water loop, making it practical for smaller labs or clean rooms that lack centralized process cooling infrastructure. Haskris introduced the LX series as a compact, high-stability alternative to larger floor-standing chillers; the line has been a standard in semiconductor and photonics labs since the 1990s and remains widely used in those environments today.
