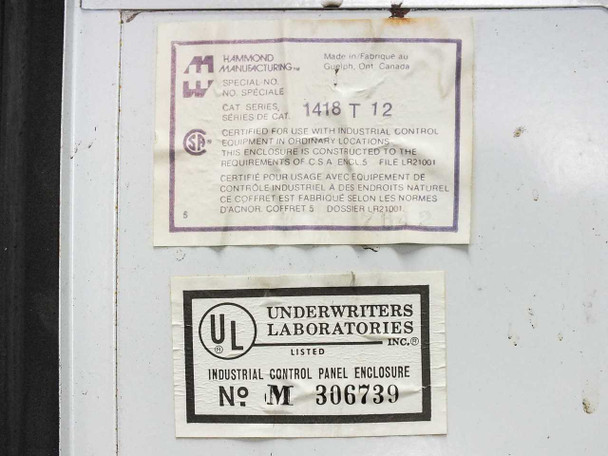

The Hammond Manufacturing 1418 T12 is a heavy-duty, free-standing floor mount steel control panel enclosure designed for housing industrial electrical and drive equipment. This unit is UL Listed as an Industrial Control Panel Enclosure (No. M 306739) and CSA certified to CSA Encl.5 standard (File LR21001), making it suitable for use with industrial control equipment in ordinary locations per both North American certification bodies. The enclosure features an electrically interlocked door — the latch cannot be released without first removing power to the enclosure — a safety feature standard on enclosures housing high-voltage drive equipment.

Specifications & What's Included

• Manufacturer: Hammond Manufacturing (Guelph, Ontario, Canada)
• Cat Series / Model: 1418 T12
• Type: Floor Mount / Free-Standing Industrial Control Panel Enclosure
• UL Listed: Industrial Control Panel Enclosure — Listing No. M 306739
• CSA Certified: CSA Encl.5, File LR21001
• Door Dimensions: 58 x 34 x 1 in
• Interior Dimensions: 58 x 34 x 11 in
• Mounting: Integral floor-mount legs (four-leg base)
• Door: Single door with electrically interlocked cam latch
• Pre-existing cutouts: Two (2) 2" diameter holes on top for conduit/cable entry; one 2×4" rectangular cutout in top-right corner of door
• Interior backplate: White-painted steel with numerous threaded standoffs and knockout slugs installed
• Previously housed: Volkmann Electric 70490AA 30 KVA Adjustable Frequency AC Drive (drive not included)
• Includes: Enclosure with door, backplate, and floor legs — no internal components

Applications

Hammond 1418-series floor mount enclosures are a long-established product line used across industrial facilities for housing motor control centers, variable frequency drives (VFDs), programmable logic controllers (PLCs), power distribution components, and custom control panel assemblies. The 1418 T12's large interior depth and dual-certified construction make it well suited for retrofitting with new drive or control equipment, replacement of a damaged enclosure in an existing installation, or custom panel builds where a UL-listed enclosure is required by code. Floor-mount enclosures of this type are commonly found in manufacturing plants, water treatment facilities, HVAC installations, and process control environments where free-standing electrical cabinets are preferred over wall-mount units. The electrically interlocked door is standard for enclosures housing high-voltage equipment and is a required or preferred feature in many industrial safety programs. This enclosure previously served as the housing for a Volkmann 70490AA 30 KVA adjustable frequency AC drive system.
