Description
Hammond 1418 T12 Type 12 Industrial Control Panel Enclosure 58x34 A-B Handle UL

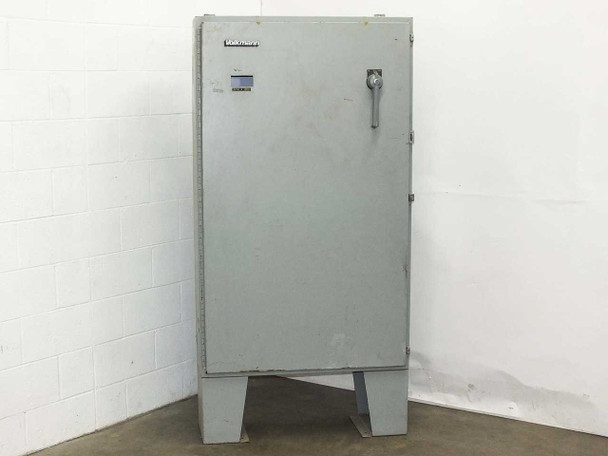

The Hammond Manufacturing 1418 T12 is a floor-standing Type 12 steel industrial control panel enclosure rated for use with industrial control equipment in ordinary locations. It is UL Listed (No. N275154) and CSA certified, built to C.S.A. Encl. 5 File LR2001. This unit was previously configured as a drive enclosure for a Volkmann 70545AA 40 KVA Adjustable Frequency AC Drive and retains its Allen-Bradley door-mounted disconnect operator handle and internal disconnect/fuse hardware.
Specifications & What's Included
- Manufacturer: Hammond Manufacturing — Made in Guelph, Ontario, Canada
- Catalog Series: 1418 T 12
- Enclosure Type: Type 12 (dust-tight, drip-tight steel enclosure)
- UL Listed: Industrial Control Panel Enclosure No. N275154
- CSA Certified: C.S.A. Encl. 5, File LR2001
- Door Dimensions: 58 x 34 x 1 in
- Interior Dimensions: 58 x 34 x 11 in
- Mounting: Floor-standing with integral welded leg base
- Material: Painted steel, gray finish

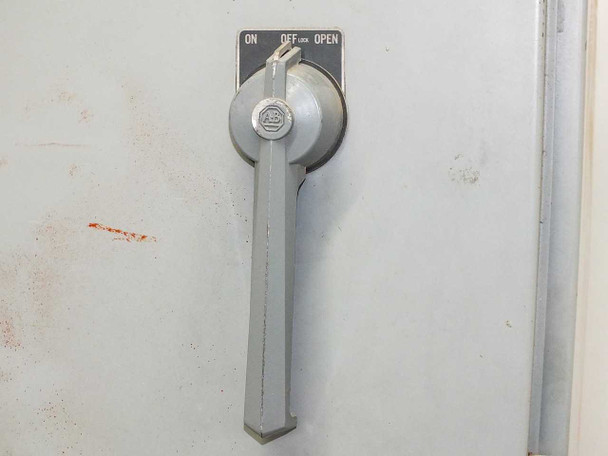

- Door Operator: Allen-Bradley door-mounted disconnect operator handle (ON / OFF / OPEN positions)

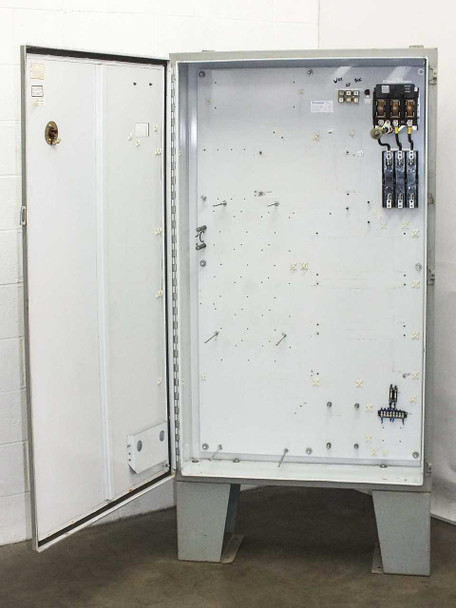

- Interior backplate with extensive punch-out mounting holes and terminal strip mounting points

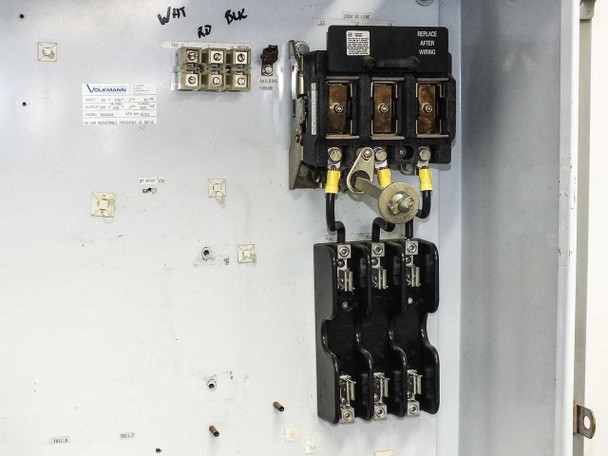

- 3-pole disconnect/fuse block assembly installed (upper right interior)
- Terminal block assembly installed (lower right interior and motor/ground terminal strip)
- DC Fuse: 10A (labeled on backplate)
- Disconnect Limits — Three Phase: 208–230V / 30A; 460V / 60A; 575V / 75A
- Disconnect Limits — Single Phase: 115V / 100A; 230V / 100A
- Disconnect Limits — DC: 125V / 10A

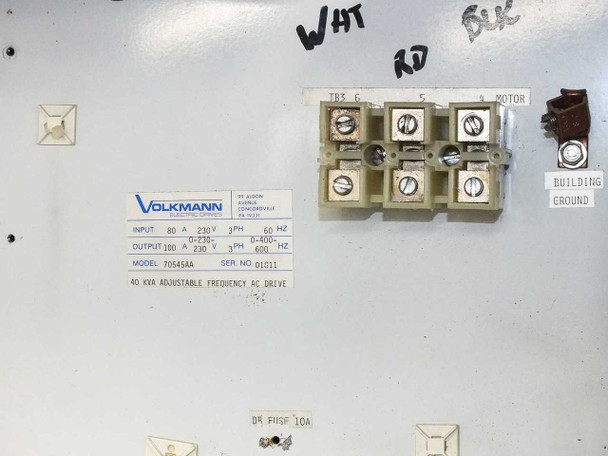

- Previously housed: Volkmann 70545AA 40 KVA Adjustable Frequency AC Drive (Input: 80A 230V 3PH 60Hz; Output: 100A, 0–230/0–400V, 3PH, 0–600Hz) — drive unit NOT included
- Door modifications from prior installation: two holes drilled in top; 2x4 in cutout in door
Applications
Hammond Type 12 enclosures are NEMA/CSA-rated steel cabinets designed to house industrial control equipment — motor drives, PLCs, power distribution components, and custom control assemblies — in manufacturing and process environments where protection from dust, dripping water, and light oil splash is required. This size class (approximately 58 x 34 x 11 in interior) is well suited to housing variable frequency drives (VFDs), soft starters, or multi-component motor control centers in machine shops, pump stations, HVAC systems, and general industrial plant floors. The existing disconnect hardware and terminal infrastructure inside make this a practical starting point for a new control build or drive enclosure retrofit, potentially saving significant panel fabrication time versus a bare enclosure. Type 12 enclosures of this style have been a staple of North American industrial control design since the mid-20th century and remain in active use wherever NEMA 12 protection is specified.

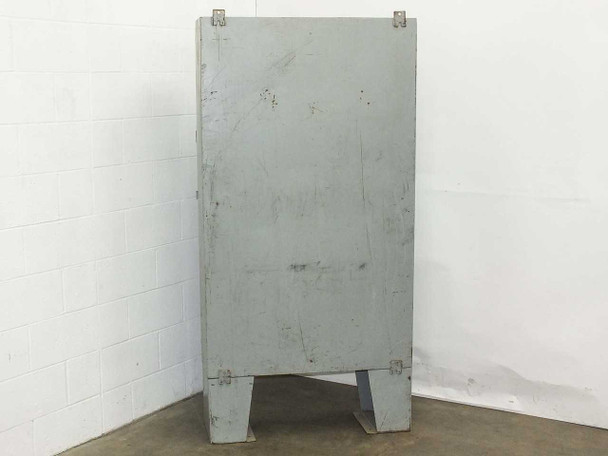

This Hammond Manufacturing 1418 T12 Type 12 Industrial Control Panel Enclosure is in fair used condition. The exterior shows surface imperfections and rust, most notably rust spots around the door and discoloration on the painted steel — consistent with prior industrial service. The rear panel shows surface scuffs and scratches. The interior backplate is largely intact with the Allen-Bradley disconnect operator handle and internal disconnect hardware still in place. Note that the door has two holes drilled in the top and a 2x4-inch cutout in the door from its previous installation. Door dimensions are 58 x 34 x 1 in; interior dimensions are 58 x 34 x 11 in. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Hammond Manufacturing |
Model: |
1418 T12 |
MPN: |
1418 T12 |
Type: |
Industrial Control Panel Enclosure |
SKU: |
48294 |
Enclosure Type: |
Type 12 (Dust-tight, Drip-tight) |
UL Listing Number: |
N275154 |
Certifications: |
UL Listed, CSA Certified |
Interior Dimensions: |
58 x 34 x 11 in |
Door Dimensions: |
58 x 34 x 1 in |
Material: |
Painted Steel |
Color: |
Gray |
Operator Handle: |
Allen-Bradley Door-Mounted Disconnect Operator (ON/OFF/OPEN) |
Disconnect Rating – 3 Phase: |
208-230V/30A; 460V/60A; 575V/75A |
Disconnect Rating – Single Phase: |
115V/100A; 230V/100A |
Disconnect Rating – DC: |
125V/10A |
Mounting: |
Floor-Standing with Integral Legs |
Country/Region of Manufacture: |
Canada |
Previously Used With: |
Volkmann 70545AA 40 KVA Adjustable Frequency AC Drive |
Seller Notes: |
Includes enclosure with A-B disconnect operator handle and internal disconnect hardware. No drive unit included. |
Condition Notes: |
This Hammond 1418 T12 Type 12 Industrial Control Panel Enclosure is in fair used condition. Exterior shows rust and surface imperfections; interior backplate is intact with disconnect hardware. |
