Description
Haitima 1000WOG 1/2" NPT Full Port Ball Valve 3-Piece SS CF8M Sliding Lock

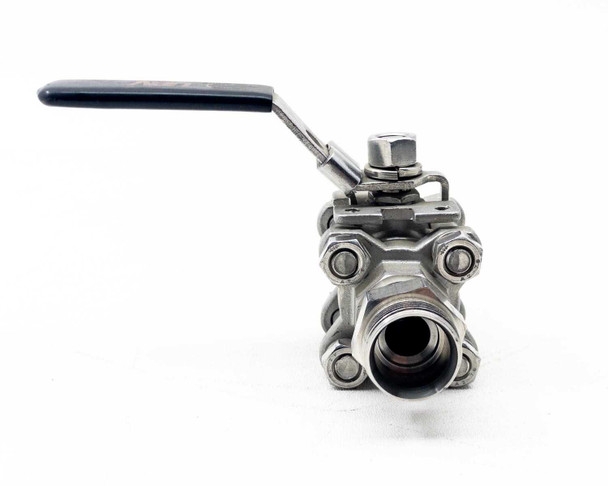

This is a Haitima 1/2" NPT full port ball valve rated at 1000 WOG (Water, Oil, Gas). It is a 3-piece design constructed from CF8M stainless steel — the cast equivalent of 316 SS — with a lever handle and an integrated sliding lock mechanism that prevents inadvertent operation. The full port bore allows unrestricted flow with minimal pressure drop across the valve.
Specifications & What's Included
- Brand: Haitima (UBV-branded handle)
- Pressure Rating: 1000 WOG (Water, Oil, Gas)
- Pipe Size: 1/2"
- Connection Type: NPT (National Pipe Thread)
- Body Material: CF8M Stainless Steel (cast 316 SS equivalent)
- Body Style: 3-piece bolted construction with tie rods
- Port: Full port (bore matches pipe ID for maximum flow)
- Handle: Lever-type with ON/OFF position markings
- Locking Mechanism: Sliding lock — prevents accidental actuation
- End Connections: Male NPT thread on one end; hose barb fitting on the opposite end (as photographed)
Applications
3-piece stainless steel ball valves rated at 1000 WOG are a standard component in industrial, commercial, and process piping systems where corrosion resistance and ease of in-line maintenance are required. The 3-piece body design allows the valve to be removed from the line for cleaning or repair without disturbing adjacent piping — a practical advantage in systems that handle aggressive media. CF8M (316 SS equivalent) construction is well suited for use with water, oils, gas, mild chemicals, and other corrosive media. Common applications include chemical processing, food and beverage lines, compressed air and gas distribution, hydraulic systems, and general industrial plumbing. The sliding lock is particularly useful in safety-conscious installations where unintended valve actuation must be prevented. The 1/2" NPT size and full port bore make this valve appropriate for moderate-flow applications where pressure drop must be kept to a minimum.
This Haitima 1000WOG 1/2" NPT 3-piece CF8M stainless steel ball valve has been inspected and is in good condition. The lever handle rotates freely and the sliding lock engages and releases correctly. The valve body and tie rods show normal surface wear consistent with prior storage or light use, but there is no visible damage or corrosion. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Haitima |
Model: |
1000WOG |
MPN: |
1000WOG |
Type: |
Full Port Ball Valve |
SKU: |
44082 |
Material: |
CF8M Stainless Steel (316 SS) |
Pipe Size: |
1/2" |
Connection Type: |
NPT (National Pipe Thread) |
Pressure Rating: |
1000 WOG (Water, Oil, Gas) |
Body Style: |
3-Piece |
Port: |
Full Port |
Locking Mechanism: |
Sliding Lock |
Handle Type: |
Lever Handle |
Media: |
Water, Oil, Gas |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
Handle rotates freely; sliding lock functions correctly. |
Condition Notes: |
This Haitima 1000WOG 1/2" NPT 3-piece CF8M ball valve has been inspected and is in good condition. Handle rotates freely; sliding lock functions correctly. Normal surface wear. Please view photos and contact us with any questions. |
