Haake F3 K Circulating Water Bath Chiller Heater 0.5–99°C 115V Air Cooled

Haake F3 K Circulating Water Bath Chiller Heater 0.5–99°C 115V Air Cooled

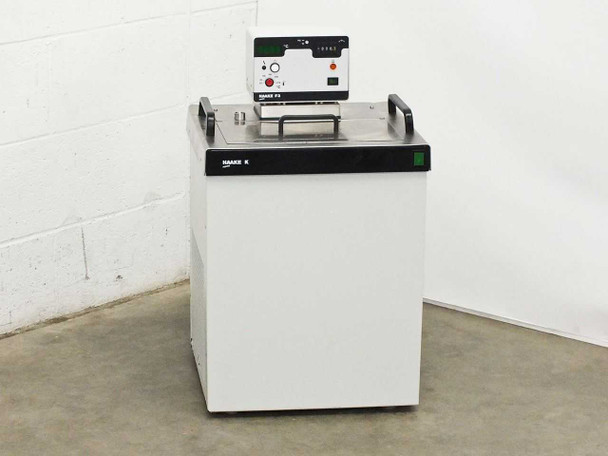

The Haake F3 K is a combined circulating water bath and refrigerated chiller/heater system consisting of two integrated units: the Haake F3 temperature controller/bath head and the Haake K refrigerated compressor cabinet. Together they form a closed-loop temperature control system capable of precise heating and cooling from 0.5°C to 99°C. This unit has been tested across that full temperature range and is in working condition. Some rust and corrosion is present on the bottom of the unit — please review photos carefully before purchasing.

Specifications & What's Included

• Manufacturer: Haake (Haake Fisons), Karlsruhe, Germany

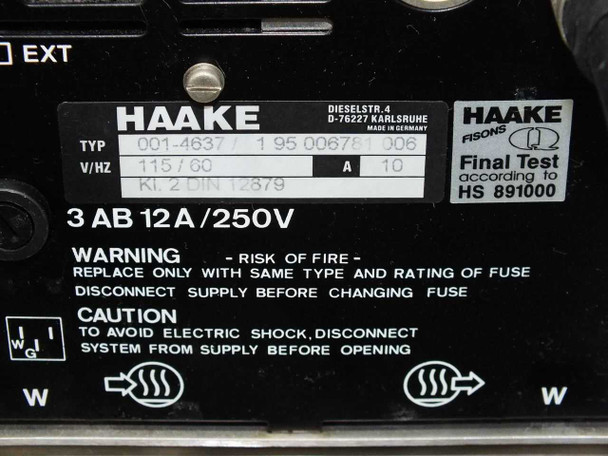

• Controller/Bath Unit: Haake F3 — TYP 001-4637 / 1 95 006781 006

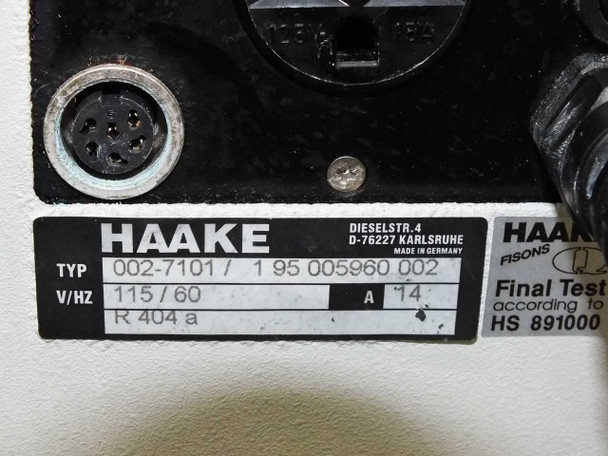

• Compressor/Chiller Unit: Haake K — TYP 002-7101 / 1 95 005960 002
• Temperature Range: 0.5°C to 99°C (tested)
• Power Input: 115V / 60Hz
• F3 Controller Current: 10A (per rating plate)
• K Compressor Current: 14A (per rating plate)
• Fuse: 3AB 12A / 250V
• Refrigerant: R404a
• Cooling Method: Air cooled
• Bath Volume: Approx. 0.40 cubic feet
• Bath Opening Dimensions: 11.5 × 7.5 × 6 in
• Bath Interior Dimensions: 12 × 11 × 5 in
• Overall Dimensions: 19 × 16 × 26 in (approx.)
• Bath construction: Stainless steel interior with circulation impeller
• Front panel: Digital temperature display (°C), analog set-point dial, green power button, INT/EXT control switch

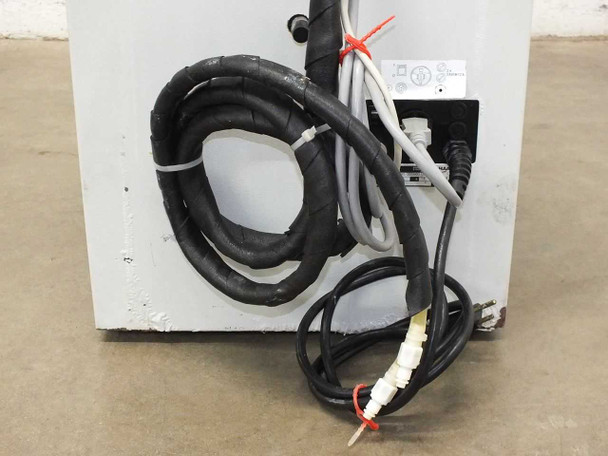

• Rear connectors: DIN-type sensor/control ports (positions 1, 2, 4), fluid inlet/outlet ports
• Certified: Haake Fisons Final Test per HS 891000; Kl. 2 DIN 12879
• Made in Germany

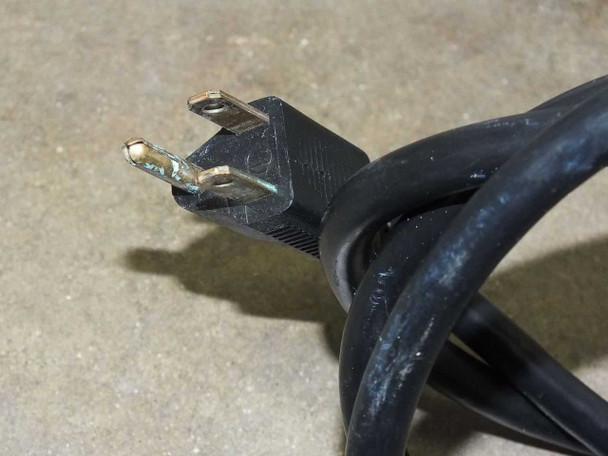

• Includes: Unit with power cord and fluid tubing as shown in photos

Applications

Haake circulating water bath systems like the F3 K are standard laboratory instruments used wherever precise, stable temperature control of a fluid bath is required. Common applications include viscometry (the Haake K series was widely paired with Haake viscometers and rheometers), sample incubation, reaction temperature control, and temperature conditioning of external process equipment via external fluid circulation loops. The F3 controller drives a pump that continuously circulates temperature-controlled water through both the internal bath and, when connected, an external circuit — making this system useful for jacketed vessels, column-temperature control in chromatography, and thermal cycling in analytical chemistry. The refrigerated K compressor cabinet allows the system to cool below ambient temperature, which distinguishes it from a simple heater-only bath. This configuration — the F3 head mounted on the K refrigerated cabinet — dates from Haake's Fisons-era instruments of the late 1980s to mid-1990s, when Haake was operated under the Fisons Scientific Equipment group before being acquired by Thermo Electron. These units remain in active use in research and QC labs that require a reliable, compact recirculating bath with both heating and sub-ambient cooling capability.
