Description
Haake F 4391 Recirculating Water Bath Chiller Heater 13°F–212°F 1 Gal

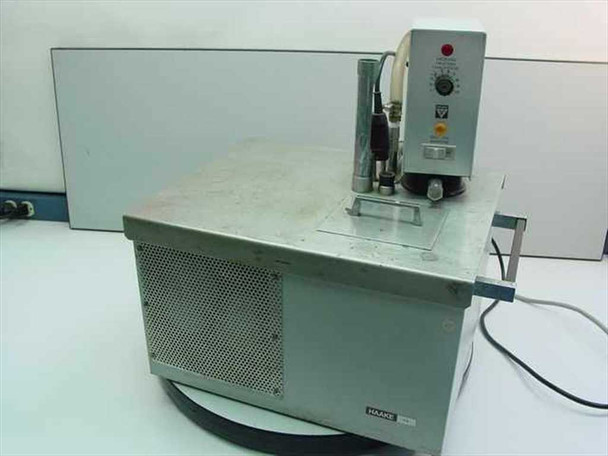

The Haake F 4391 is a benchtop recirculating water bath combining a refrigeration (chilling) unit and an electric heater in a single compact housing. It circulates temperature-controlled fluid through an internal tank and can supply cooled or heated fluid to external equipment via the circulation ports. This unit has been tested: the cooling side reached 13°F and the heater side reached 212°F.
Specifications & What's Included
- Model: Haake F 4391
- Voltage: 115V
- Power: 1000 VA (1000W)
- Country of Manufacture: Germany (Haake Medingen, Karlsruhe)
- Cooling range: tested down to 13°F (−10.6°C) — AC refrigeration side, on/off only (no variable temperature control on cooling side)
- Heating range: tested to 212°F (100°C) — dial control, scale 0–10
- Tank capacity: approximately 1 gallon; requires 104 oz. of fluid to cover heat exchangers

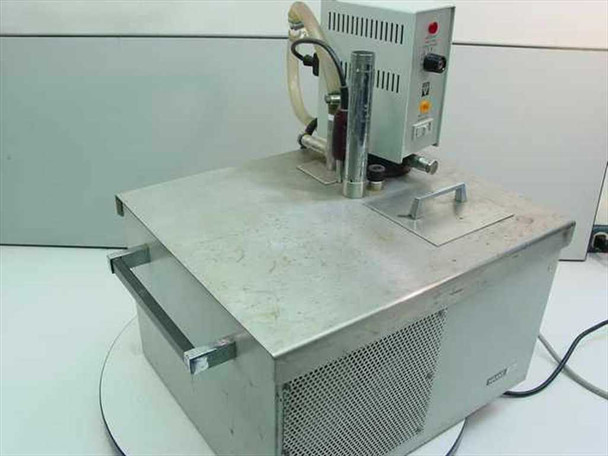

- Tank access opening: 4 × 4.25 inches

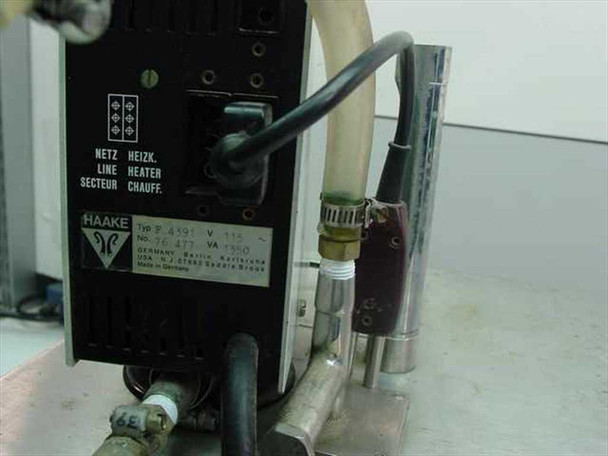

- Dual power switches on rear: Line (Netz/Secteur) and Heater (Heizk./Chauff.)
- Red pilot light on heater control module
- Flexible circulation hose (attached, connects heater module to tank)

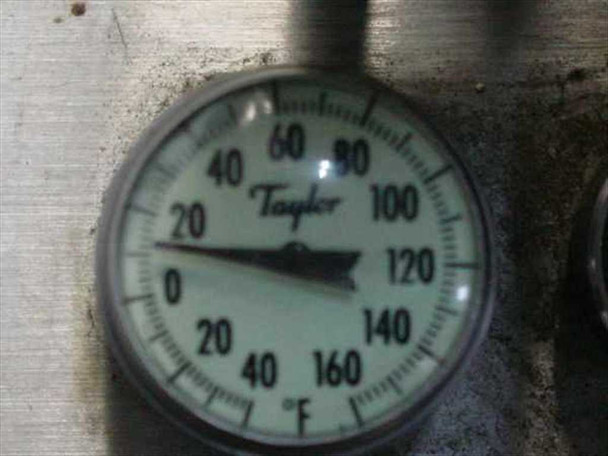

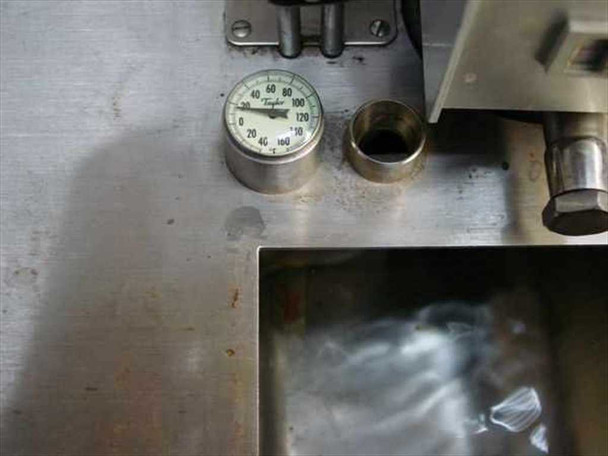

- Taylor dial thermometer mounted on tank lid (0–160°F range)

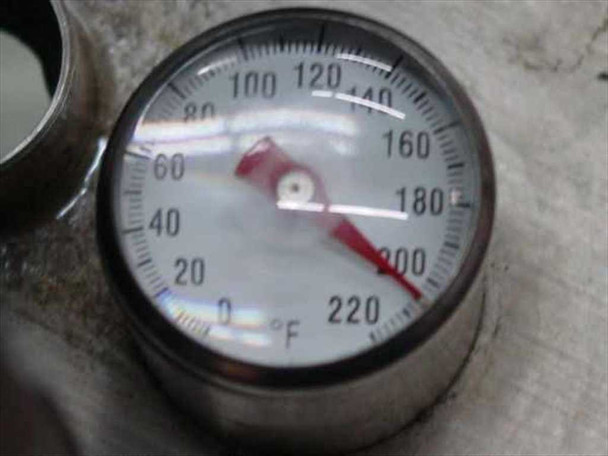

- Second thermometer (0–220°F range) on heater side — documented heater test reading visible in photos
- Mesh refrigeration vent on left side panel
- Stainless steel tank and lid housing
Applications
Recirculating water baths like the Haake F 4391 are standard equipment in chemistry, biochemistry, pharmaceutical, and materials research labs. They maintain a stable fluid temperature and pump that fluid through external equipment — such as jacketed reaction vessels, viscometers, rotary evaporator condensers, titration cells, and sample temperature-control baths — to hold a precise temperature during experiments. The combined chiller-heater design covers both sub-ambient cooling and above-ambient heating from a single unit, which is useful when a process needs to be cooled down as well as heated up without switching equipment. Haake (now part of Thermo Fisher Scientific) produced this style of recirculating bath primarily from the 1970s through the 1990s, and units like the F 4391 remain in use in legacy lab setups and teaching labs that need a reliable, simple temperature-control solution.
This Haake F 4391 Recirculating Water Bath has been tested and is in working condition. The cooling (AC refrigeration) side has no temperature control — it runs as an on/off system — and was tested down to 13°F. The heater side was tested to 212°F and has a dial control (0–10 scale). The tank holds approximately one gallon and requires 104 oz. of fluid to cover the heat exchangers. The 4×4.25-inch tank access cover is intact. The stainless steel lid shows surface rust spots and some staining typical of a used water bath, visible in the photos. The unit includes the attached circulation hose and a Taylor dial thermometer mounted on the tank lid. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Haake |
Model: |
F 4391 |
MPN: |
F 4391 |
Type: |
Recirculating Water Bath |
SKU: |
20821 |
Temperature Range (Cooling): |
Down to 13°F (-10.6°C) |
Temperature Range (Heating): |
Up to 212°F (100°C) |
Tank Capacity: |
Approximately 1 gallon (104 oz. to cover heat exchangers) |
Tank Access Opening: |
4 x 4.25 inches |
Cooling Control: |
AC refrigeration side — no temperature control (on/off only) |
Heating Control: |
Dial-type temperature control (0–10 scale) |
Power Rating: |
1000 VA (1000W) |
Voltage: |
115V |
Country/Region of Manufacture: |
Germany |
Seller Notes: |
Unit only — includes attached circulation hose and Taylor thermometer on tank lid. |
Application: |
Temperature-controlled bath for lab reactors, viscometry, titration, sample prep |
Form Factor: |
Benchtop |
Condition Notes: |
Haake F 4391 Recirculating Water Bath has been tested. Cooling side (no temp control) tested to 13°F; heater side tested to 212°F. Tank holds ~1 gal; 104 oz. to cover heat exchangers. Lid shows surface rust/staining. Used. |
