Description
Guzik UP-205 UP205 PCB Rev B Printed Circuit Board Card Made in USA

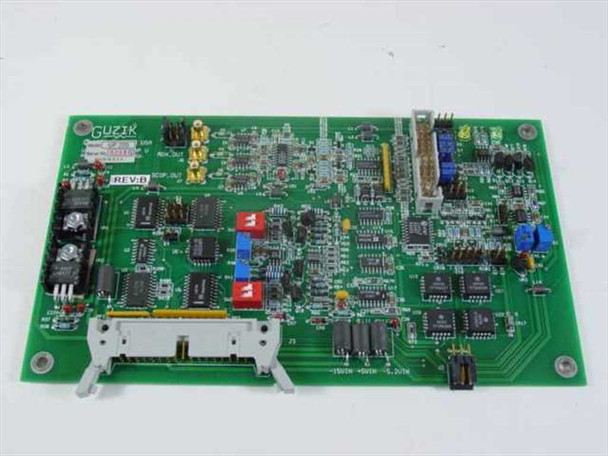

Guzik UP-205 Rev B printed circuit board card. This module card functioned as a component within Guzik automated test equipment (ATE) systems and telecom diagnostic platforms.
Specifications & What's Included
- Model: UP-205, Rev B
- Type: Printed Circuit Board / Card Module
- Form Factor: PCB with high-density gold-pin edge connector (approximately 50-pin)
- Output Connectors: RDX_OUT (x2) and SCOP_OUT, SMA-type connectors on board edge
- Secondary Connector: Multi-pin white housing connector with DIP switch block
- Manufactured in the United States
- Board only; no additional accessories included
Applications
This card type was used in Guzik test and measurement platforms for signal routing and instrumentation control. The board handles output signal distribution through SMA connectors and module-level configuration via DIP switches. Common deployment in telecom lab equipment and automated circuit board testers from the 1990s–2000s era.
Condition: Used
This Guzik UP-205 Rev B printed circuit board is in used condition. It was pulled from service and shows normal light wear consistent with prior use. The board label is intact and legible, the gold-pin edge connector appears clean, and the SMA-style output connectors and multi-pin header connectors are present and appear undamaged. The board has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions.
This Guzik UP-205 Rev B printed circuit board is in used condition. It was pulled from service and shows normal light wear consistent with prior use. The board label is intact and legible, the gold-pin edge connector appears clean, and the SMA-style output connectors and multi-pin header connectors are present and appear undamaged. The board has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Guzik |
Model: |
UP-205 |
MPN: |
UP-205 |
Type: |
Printed Circuit Board (PCB) |
SKU: |
26951 |
Hardware Revision: |
Rev B |
Country/Region of Manufacture: |
United States |
Form Factor: |
Card / Module / PCB |
Seller Notes: |
Board only — no additional accessories included. |
Output Connectors: |
RDX_OUT (x2), SCOP_OUT — SMA-type on board edge |
Board Interface: |
High-density gold-pin edge connector (approx. 50-pin) |
Secondary Connector: |
Multi-pin white housing connector with DIP switch block |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
Guzik UP-205 Rev B PCB in used condition. Pulled from service; shows normal light wear. Board label intact, connectors appear undamaged. Not bench-tested at our facility. Please view photos and contact us with any questions. |
