Description
Grundfos Alldos DDA 12-10 AR-PVC/V/C Digital Dosing Pump 10 Bar 150 PSI 100-240V
Digital metering pump designed for chemical dosing applications. Delivers precise, controlled fluid dispensing via stepper motor drive and LCD control interface.
Specifications & What's Included
- Flow Rate: 12 l/h (3.1 gph)
- Max Pressure: 10 Bar / 150 PSI
- Power: 100-240V AC, 50/60 Hz, 24W max
- Control: Digital electronic with LCD display
- Wetted Materials: PVC body, Viton, PVDF/Ceramics
- Enclosure: IP65 / NEMA 4X rated
- Drive: Stepper motor linear actuator
- Certifications: CE, UL/cUL
- Includes power cord
Applications
Grundfos Alldos dosing pumps are used for chemical injection in water treatment, cooling systems, boiler feed, and industrial process applications. Commonly found in HVAC systems, commercial water treatment installations, and closed-loop cooling circuits. Operates as part of larger control and monitoring systems.
Condition: Used

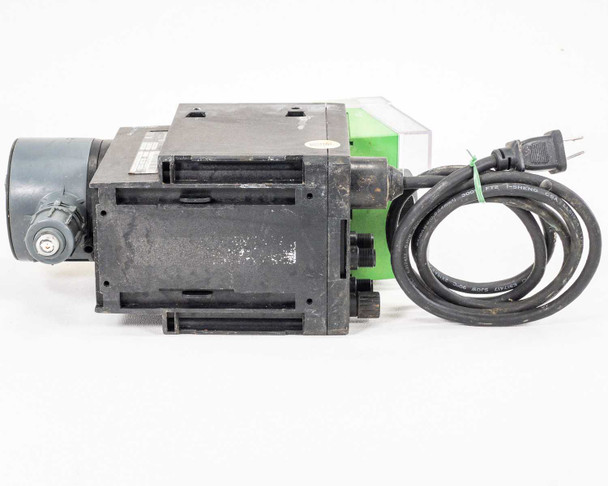

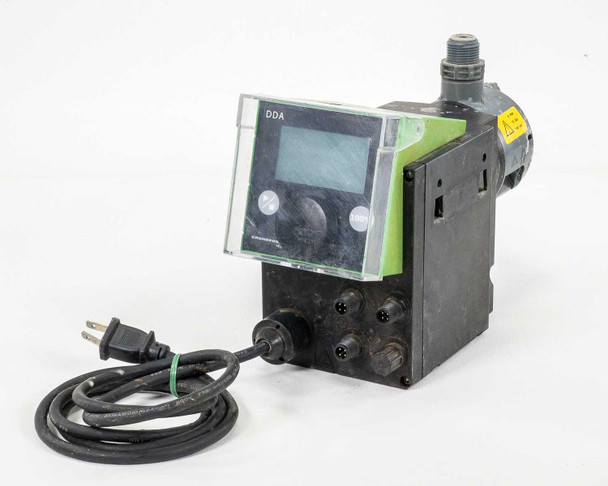

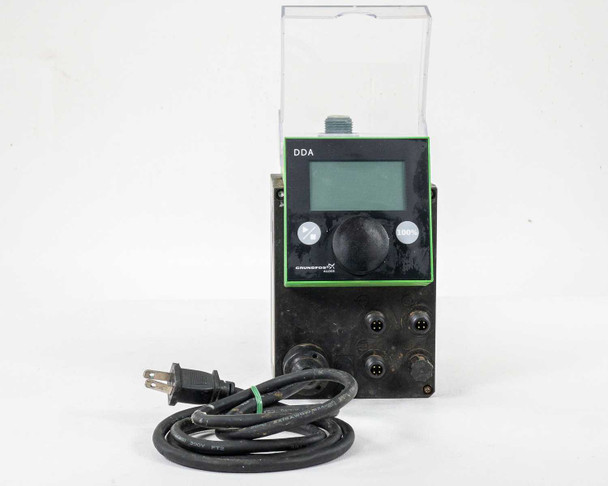

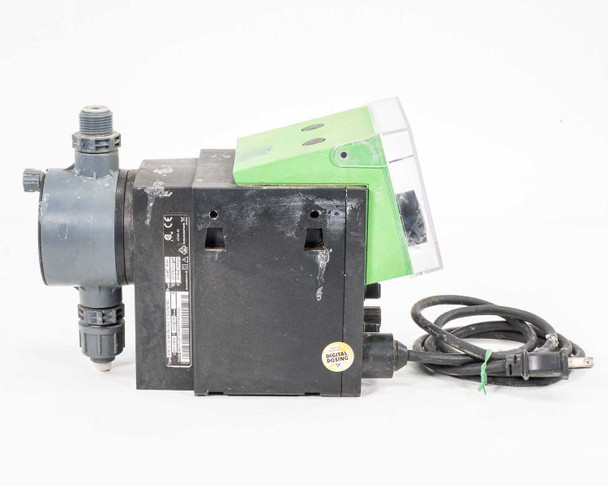

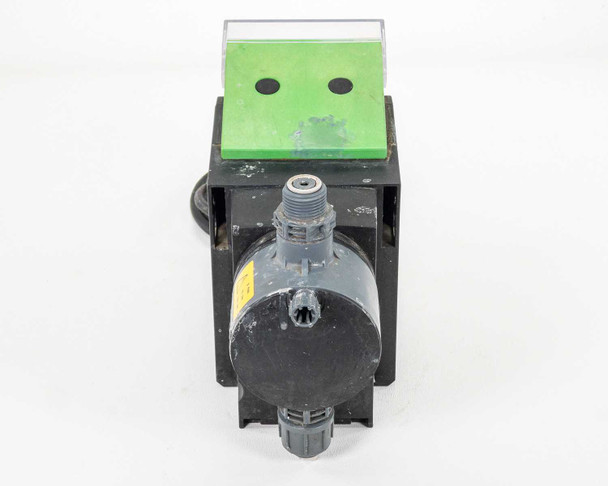

This Grundfos Alldos DDA 12-10 Digital Dosing Pump was pulled from a working service environment where it was in active use and functional. It has been inspected and is in good used condition. The housing shows scuffing, surface soiling, and white chemical residue deposits on the pump head and liquid end consistent with chemical dosing service — the body, LCD display, and control panel are intact and the power cord is included. Multi-pin signal connectors on the front face appear undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Grundfos Alldos DDA 12-10 Digital Dosing Pump was pulled from a working service environment where it was in active use and functional. It has been inspected and is in good used condition. The housing shows scuffing, surface soiling, and white chemical residue deposits on the pump head and liquid end consistent with chemical dosing service — the body, LCD display, and control panel are intact and the power cord is included. Multi-pin signal connectors on the front face appear undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Grundfos Alldos |
Model: |

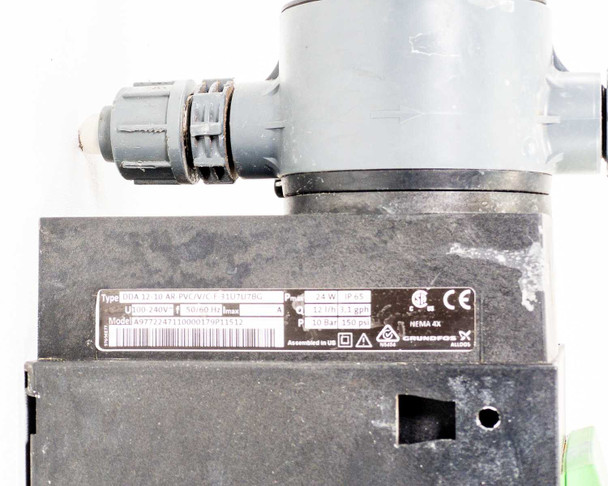

DDA 12-10 AR-PVC/V/C-F-31U7U7BG |
MPN: |
A9772247110000179P11512 |
Type: |
Digital Dosing Pump / Metering Pump |
SKU: |
52965 |
Seller Notes: |
Includes power cord. Pulled from working service environment. |
Country/Region of Manufacture: |
United States |
Flow Rate: |
12 l/h (3.1 gph) |
Max Pressure: |
10 Bar / 150 PSI |
Power Requirements: |
100-240V AC, 50/60 Hz |
Max Power: |
24W |
Enclosure Rating: |
IP65 / NEMA 4X |
Diaphragm / Wetted Materials: |
PVC/V/C (PVC body, Viton, PVDF/Ceramics) |
Control Type: |
Digital / Electronic with LCD display |
Drive Type: |
Stepper motor (linear actuator) |
Certifications: |
CE, UL/cUL |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
Grundfos Alldos DDA 12-10 Digital Dosing Pump pulled from working service, in good used condition. Shows chemical residue and surface soiling on pump head/housing consistent with dosing service. LCD, controls, and power cord intact. |
