Gravity Hoist

Gravity Hoist Faceplate Mount Dual Chain Counterbalance THK Slide Thompson

(No reviews yet) Write a Review
SKU:
19230
MPN:
Face Plate Mount
Condition:
Used
Availability:
Usually ships within 1-2 business days; can be disassembled for shipping.
Weight:
120.00 LBS
Shipping:
Calculated at Checkout

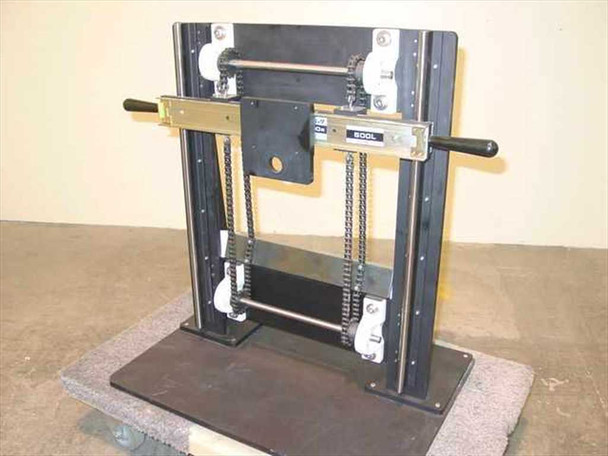

  • Gravity hoist faceplate mount dual chain counterbalance assembly – front three-quarter view showing THK linear slide, dual roller chains, black steel frame, and handle grips
  • Gravity hoist counterbalance system – side profile view showing chain drive, single handle, vertical steel uprights, and base plate on rolling pallet
  • Gravity hoist assembly – top-down view showing THK FBW50110R linear slide carriage, Thompson SSUPBO 8 pillow blocks, cross-shaft, and chain drive components
$300.00
Was: $600.00
Current Stock: 1

Sold Out

Description

Gravity Hoist Faceplate Mount Dual Chain Counterbalance THK Slide Thompson Pillow Block

Custom-built vertical counterbalance hoist assembly with dual chain drive and linear slide support. Designed for controlled vertical lifting and positioning in industrial applications with mechanical weight offset.

Specifications & What's Included

  • Model: Gravity Hoist Faceplate Mount (Custom Assembly)
  • Linear Slide: THK 500L FBW50110R
  • Pillow Blocks: 2x Thompson SSUPBO 8 Super Pillow Block
  • Drive Type: Dual Chain
  • Vertical Rise: 2 ft (24 in)
  • Overall Dimensions: 24 in W x 17 in D x 26 in H
  • Frame: Steel, powder-coated black
  • Disassembles for shipping

Applications

Gravity hoist assemblies with counterbalance mechanisms are used in manufacturing, material handling, and assembly operations where vertical lifting must be controlled and supported. The dual chain configuration provides mechanical advantage for load handling. THK linear slides are standard in precision positioning systems across industrial automation, machinery, and equipment assembly lines. Thompson pillow blocks support shaft rotation in conveyor systems, hoists, and drive mechanisms.

Condition: Used
This custom gravity hoist faceplate mount dual chain counterbalance assembly has been inspected and is in good used condition. The black powder-coated steel frame shows normal surface wear consistent with prior industrial use. The THK linear slide, dual chain drive, and Thompson pillow blocks are all present and intact. The unit sits on a base plate and can be disassembled for shipping. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
Gravity Hoist Faceplate Mount
MPN:
N/A - Custom Assembly
Type:
Vertical Counterbalance Hoist / Linear Slide Assembly
SKU:
19230
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes dual chain drive, THK slide, and Thompson pillow blocks. Can be disassembled for shipping.
Linear Slide Model:
THK 500L FBW50110R
Pillow Block Model:
Thompson SSUPBO 8 Super Pillow Block
Pillow Block Quantity:
2
Drive Type:
Dual Chain
Vertical Rise:
2 ft (24 in)
Overall Dimensions:
24 in W x 17 in Deep x 26 in High
Configuration:
Faceplate / Front-Plate Mount with Weight Offset
Disassembles for Shipping:
Yes
Application:
Vertical position counterbalance, industrial lift, hoist
Frame Material:
Steel (powder-coated black)
Country/Region of Manufacture:
United States
Condition Notes:
Custom gravity hoist dual chain counterbalance assembly. Inspected and in good used condition. Frame shows normal wear. THK slide, dual chains, and Thompson pillow blocks all present and intact. Can be disassembled for shipping.
