The Granville Phillips 270 is a rackmount high-vacuum ion gauge controller designed to measure and control pressure across 8 decades of vacuum — from atmospheric rough vacuum down to 1×10⁻⁸ Torr. It combines two independent thermocouple (TC) gauge channels for rough/medium vacuum measurement with a hot-cathode ionization gauge channel for high-vacuum measurement, all in a single 2U rackmount instrument. Two independent set points on each gauge type (TC and ion gauge) allow automated process control over the full pressure range. The unit includes autoranging, a built-in emission controller, electrometer, and ion gauge meter, making it a self-contained controller for high-vacuum systems.

Specifications & What's Included

• Catalog No.: 270059-1
• Manufacturer: Granville-Phillips Company, Boulder, Colorado
• Form Factor: 2U rackmount
• Power: 115 or 220 VAC (selectable)
• Ion gauge pressure range: 9×10⁻⁴ to 1×10⁻⁸ Torr
• Thermocouple gauge pressure range: 0.001 to 1 Torr
• Total measurement range: 1 to 1×10⁻⁸ Torr (8 decades)
• TC gauge channels: 2 independent (TC1 and TC2), each with its own analog meter
• TC gauge set points: 2 independent
• Ionization gauge set points: 2 independent
• Autoranging: Yes (manual UP/DOWN range selection also available)
• Pressure scale: Torr; panel also marked Pascal = mBar × 100
• Gas calibration: N₂ (nitrogen)

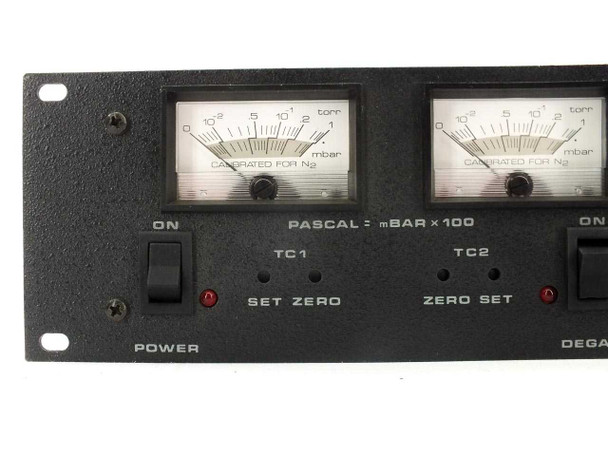

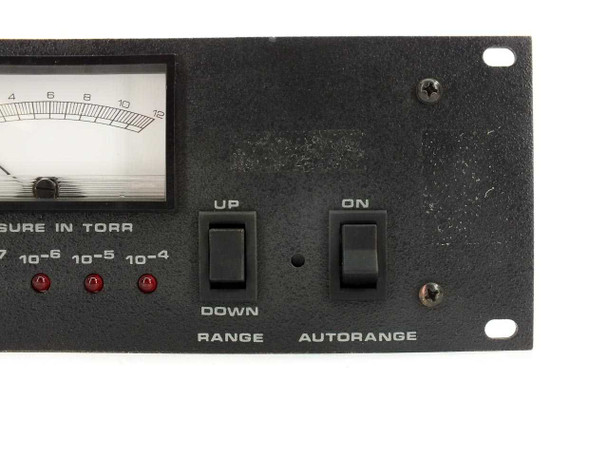

• Front panel: analog TC1 and TC2 meters, ion gauge analog meter, decade LED indicators (10⁻⁷, 10⁻⁶, 10⁻⁵, 10⁻⁴), POWER switch, DEGAS, SET ZERO / ZERO SET, FILAMENT, EMISSION, PK SET, AUTO ON, RANGE UP/DOWN, AUTORANGE ON

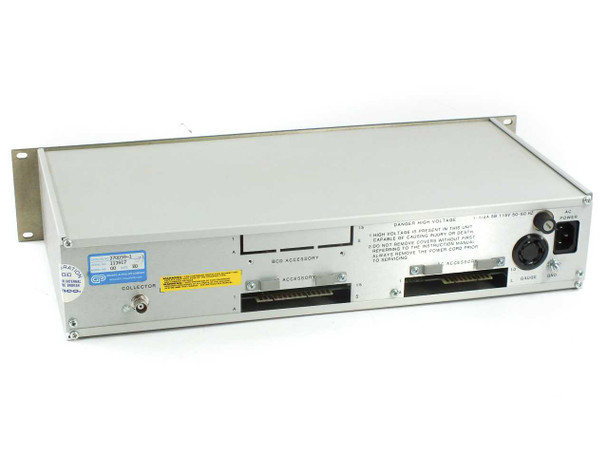

• Rear panel: BCD Accessory slot, Accessory slot, Collector (BNC), IEC AC power inlet
• Internal components: power supply, electrometer, emission controller, ion gauge meter
• Includes: ion gauge tube — stainless steel T-fitting with KF/NW flange and blue protective cap
• Includes: ion gauge tube head (ceramic/metal body with red/blue multi-pin connector)

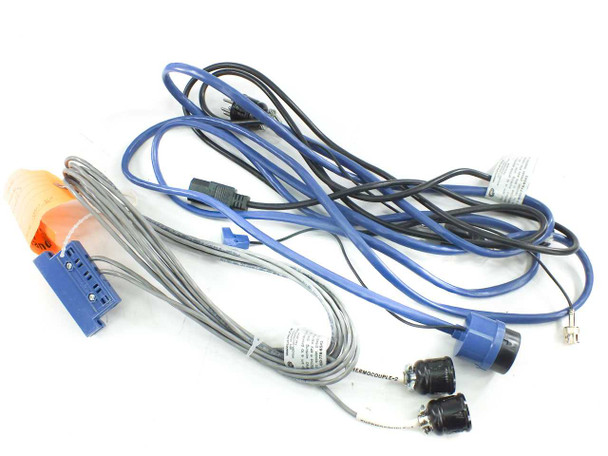

• Includes: 2 blue thermocouple gauge cables with black bayonet connectors
• Includes: gray flat thermocouple cable with blue and orange connector ends
• Includes: Platt hard carrying case with aluminum trim and custom foam cutout

Applications

The Granville Phillips 270 is used in high-vacuum and ultra-high-vacuum process systems where continuous pressure monitoring and automated process control are required across a wide dynamic range. It is widely used in thin-film physical vapor deposition (PVD) systems — including sputtering and evaporation systems — as well as in semiconductor processing equipment, electron beam systems, and general research vacuum chambers. The dual thermocouple channels handle the rough-pump-down phase (from atmosphere to the millitorr range), while the hot-cathode ion gauge takes over as the system reaches high vacuum. The independent set points on each channel allow interlock or valve-control logic to be driven directly from the controller. Granville Phillips (later Heliox, now part of Brooks Automation / MKS Instruments) produced this series from the 1970s through the 1990s; the Model 270 is a widely recognized instrument in academic and industrial vacuum labs, and spare ion gauge tubes and thermocouple heads remain available from multiple suppliers.
