GNP

GNP Computers cPCI CompactPCI Narrow SCSI Terminator 1-500096 Rev B SE

(No reviews yet) Write a Review
SKU:
28923
MPN:
1-500097
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

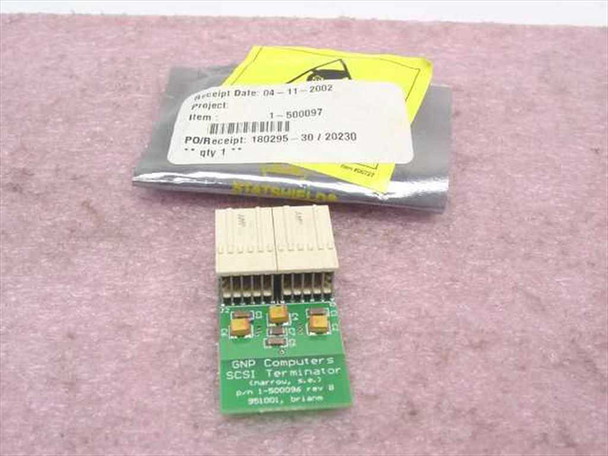

  • GNP Computers 1-500096 Narrow SCSI Terminator PCB module with original receipt bag showing part number and date

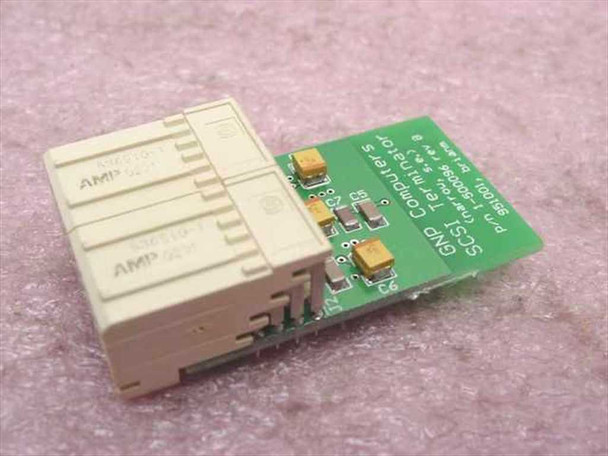

  • GNP Computers 1-500096 Rev B SCSI Terminator rear view showing AMP connector block and green PCB

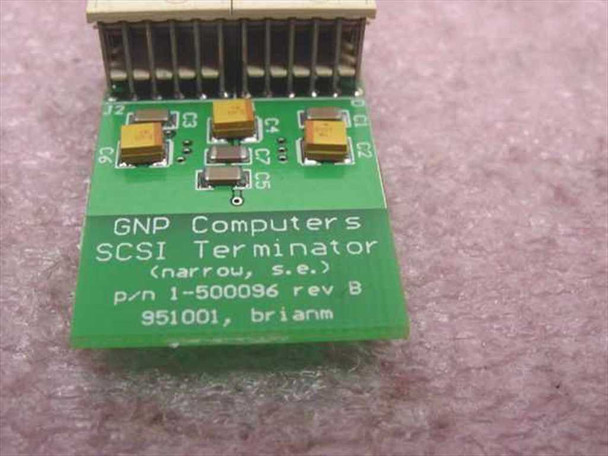

  • GNP Computers SCSI Terminator PCB close-up showing board markings: narrow s.e., p/n 1-500096 Rev B
$25.00
Was: $50.00
Current Stock: 48

Sold Out

Description

GNP Computers cPCI CompactPCI Narrow SCSI Terminator 1-500096 Rev B SE

Passive SCSI terminator module designed for CompactPCI systems. Terminates 8-bit narrow single-ended SCSI buses to prevent signal reflections and maintain data integrity.

Specifications & What's Included

  • Model: 1-500096 Rev B
  • Type: Passive SCSI Terminator
  • SCSI Width: Narrow (8-bit)
  • Signaling: Single-Ended (SE)
  • Form Factor: PCB Module / Card
  • Connector: AMP / IDC header
  • Compatibility: CompactPCI (cPCI) systems, GNP PDSi

Applications

Narrow SCSI terminators were used in CompactPCI industrial computing systems through the 1990s and 2000s for disk drives, tape drives, and other storage devices. This terminator installs on the cPCI backplane or device slot to properly terminate the SCSI bus. Typical applications include telecommunications equipment, industrial control systems, and embedded computing platforms using the CompactPCI standard.

Condition: New
This GNP Computers 1-500096 Rev B Narrow SCSI Terminator is new and unused. It is open-box, meaning it may no longer be in its original packaging, but the component itself shows no signs of use or wear. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
GNP Computers
Model:
1-500096
MPN:
1-500096
Secondary Model:
1-500097
Hardware Revision:
Rev B
Type:
SCSI Terminator
SCSI Width:
Narrow (8-bit)
SCSI Signaling:
Single-Ended (SE)
Form Factor:
PCB Module / Card
Interface Type:
SCSI
Connector Type:
AMP / IDC header
Compatible With:
CompactPCI (cPCI) systems, GNP PDSi
Termination Type:
Passive
SKU:
28923
Condition:
New – Open Box
Seller Notes:
New open-box; item is unused but may be out of original packaging.
Country/Region of Manufacture:
United States
Condition Notes:
GNP Computers 1-500096 Rev B Narrow SCSI Terminator. New and unused; open-box — may be out of original packaging. Component shows no use or wear.
