Global Solar 60012 7A 12V Solar Charge Controller 100W 12 Volt Battery Regulator

Global Solar 60012 7A 12V Solar Charge Controller 100W 12 Volt Battery Regulator

The Global Solar 60012 is a compact 12V solar charge controller designed to protect 12-volt lead-acid batteries from overcharge and over-discharge caused by solar panel input. Rated for up to 7 amps of array current and up to 100 watts of solar power, it automatically manages the charging cycle to keep your battery in a healthy, fully charged state. The unit requires no ongoing maintenance and installs quickly using the included DC leads.

Specifications & What's Included

• Model: Global Solar 60012
• System Voltage: 12V DC
• Maximum Charge Current: 7A
• Maximum Solar Input Power: 100W

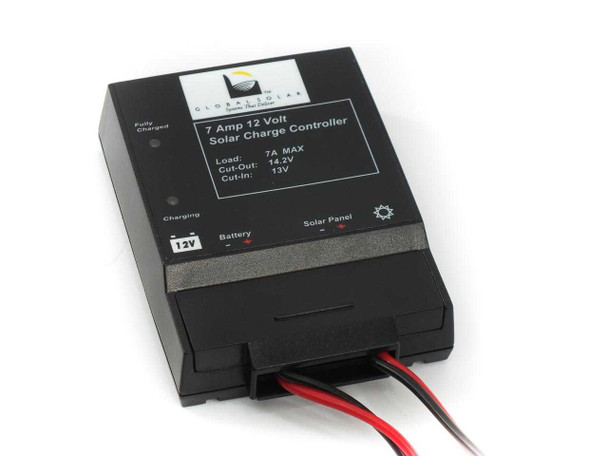

• Load Cut-Out Voltage: 14.2V
• Load Cut-In Voltage: 13V
• Status Indicators: Charging LED (orange); Fully Charged LED (green)

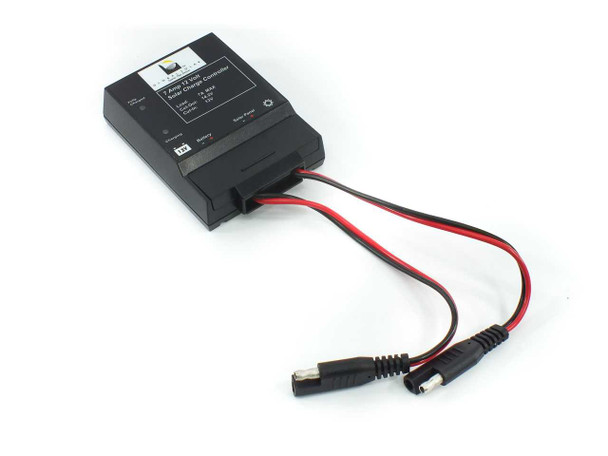

• Terminals: Battery connection leads (red/black) and Solar Panel connection leads with DC barrel connectors
• Compatible with 12-volt solar panels and 12V lead-acid batteries only
• Made in China
• Includes: Controller unit with pre-attached battery and solar panel leads, in original retail clamshell packaging

Applications

Solar charge controllers like the Global Solar 60012 are a standard part of any off-grid or portable 12V solar charging system. They sit between the solar panel and the battery, preventing the panel from pushing too much current into a full battery (overcharge) and cutting the load before the battery drops too low (over-discharge) — both of which can permanently damage lead-acid batteries. This controller is sized for small portable solar setups: recreational vehicles, camping, marine batteries, remote sensor power, and small 12V backup power installations. It is a natural match for compact portable solar panels in the 20–100W range, including Global Solar's own flexible CIGS panels. The simple DC connector leads make it easy to integrate into portable systems without soldering or panel wiring.
