Description
Global Solar 22042B P3 42W Powerflex CIGS Foldable Solar Panel 24V ETFE Black

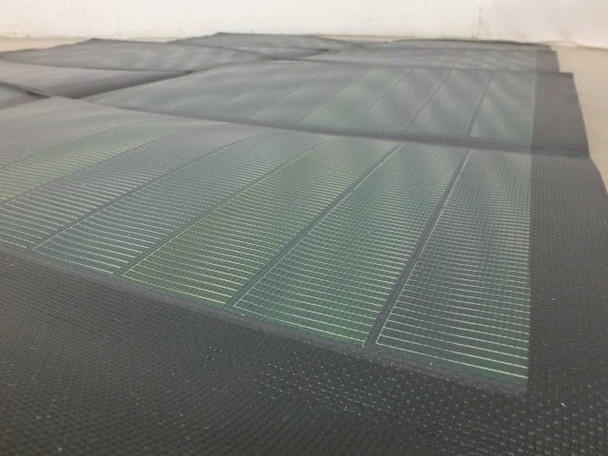

The Global Solar 22042B is a 42-watt portable foldable solar panel built around CIGS (Copper Indium Gallium Selenide) thin-film photovoltaic cells laminated to a tough rip-stop nylon substrate with an ETFE protective encapsulation layer. This unit is new old stock (NOS) from 2014 conditioned storage. These panels are manufacturer seconds and may show minor cosmetic artifacts from production or years of storage. Important: Our in-house testing has confirmed these panels output approximately 50% of their rated 42W capacity; sun-soaking the CIGS cells for several days did not improve performance. Buyers should account for this confirmed output degradation before purchasing.
Global Solar developed the P3 Portable Power Pack series originally as a lightweight 12V/24V battery charger for the US military and the P3 carries MIL-STD-810E compliance. The panel is unregulated and intended for direct battery charging — open-circuit voltage at 0°C can reach 65V, so an appropriate charge controller should be used with battery systems.

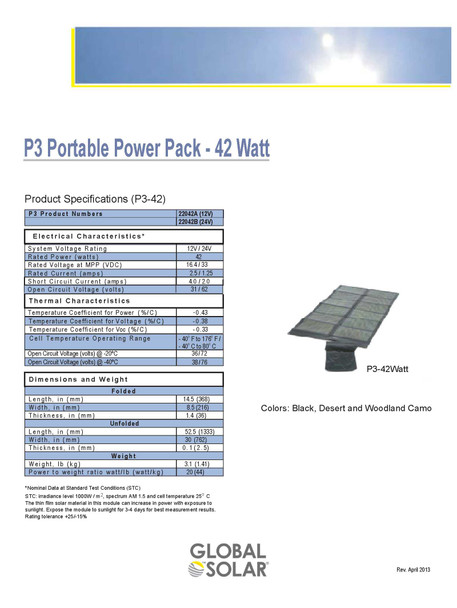

Specifications & What's Included
- Model: 22042B (24V) / P3-42
- Solar cell technology: CIGS (Copper Indium Gallium Selenide) thin-film
- Encapsulation: ETFE over PET substrate
- Backing material: Rip-stop nylon
- System voltage: 24V DC nominal
- Rated power (Pmax): 42 Watts
- Rated voltage at MPP: 33V DC
- Rated current at MPP: 1.25A
- Short circuit current (Isc): 2.0A
- Open circuit voltage (Voc): 62V at 25°C; 65V max design voltage at 0°C
- Temperature coefficient — power: −0.43 %/°C
- Temperature coefficient — Voc: −0.38 %/°C
- Cell operating temperature range: −40°C to 80°C (−40°F to 176°F)

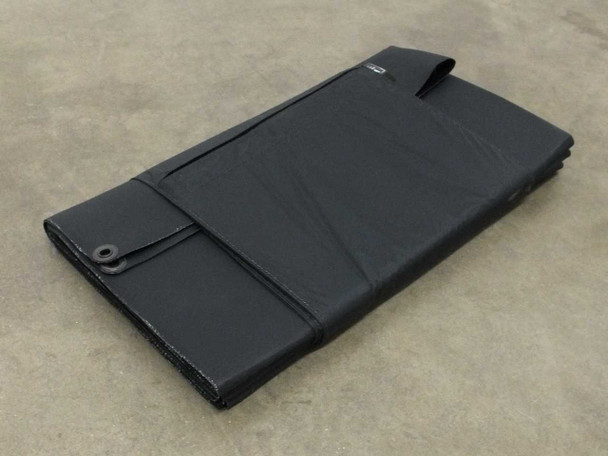

- Folded dimensions: 14.5 × 8.5 × 1.4 in (368 × 216 × 36 mm)
- Unfolded dimensions: 52.5 × 30 × 0.1 in (1333 × 762 × 2.5 mm)
- Power-to-weight ratio: 20 W/lb (44 W/kg)
- Output connector: SAE (exposed terminal negative)
- Color: Black

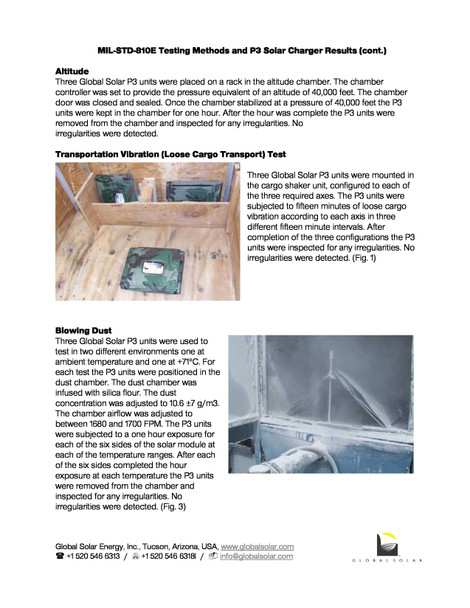

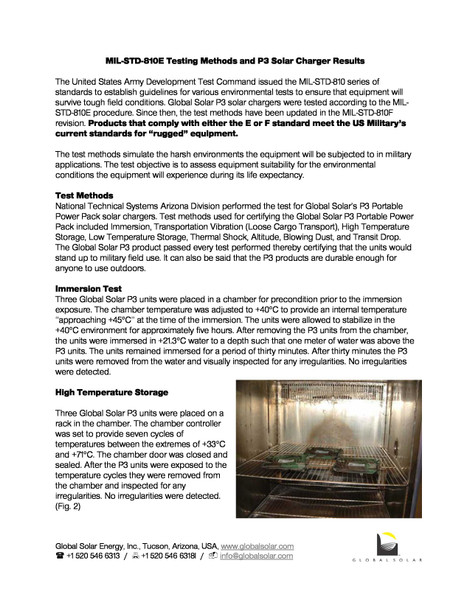

- Standards compliance: MIL-STD-810E

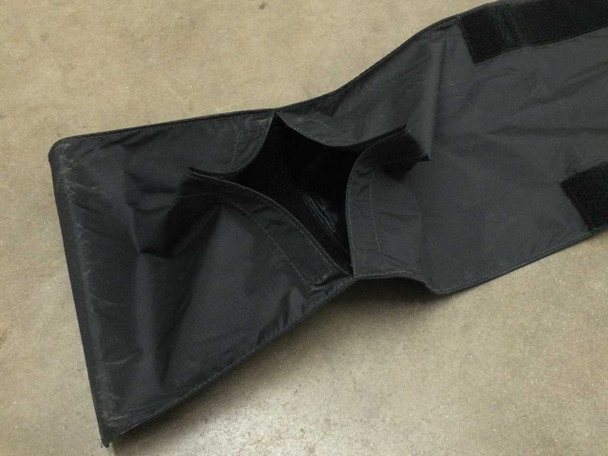

- Integrated storage pockets: two compartment pouch built into the nylon backing
- Includes: panel with SAE output cable — no external charge controller included
Applications
Global Solar's P3 Powerflex series was developed for the US military as a portable, ruggedized field power source — the MIL-STD-810E rating covers shock, vibration, humidity, and temperature extremes encountered in field deployment. CIGS thin-film technology is used in flexible and lightweight solar products because it performs better than crystalline silicon under low-light and diffuse conditions and tolerates partial shading more gracefully. The foldable, rip-stop nylon form factor makes the P3 well suited to backpacking, remote field work, emergency preparedness, and vehicle battery maintenance — applications where a rigid glass panel is impractical. The 24V configuration (model 22042B) is aimed at 24V vehicle electrical systems, military radio battery banks, and similar applications. Because the output is unregulated, a charge controller appropriate for the load is recommended for anything beyond direct trickle charging. Note on this specific NOS stock: our testing confirmed output of approximately 50% of rated capacity, consistent with known CIGS cell degradation during extended storage; buyers who need full 42W output should factor this in.
This Global Solar 22042B P3 42W Powerflex CIGS Foldable Solar Panel is new old stock (NOS) that has been in conditioned storage since 2014. These panels are manufacturer seconds and may show small cosmetic artifacts from the production process and years of storage. Our in-house testing found that the panels output approximately 50% of their rated 42W capacity straight out of storage; sun-soaking the CIGS cells for several days did not improve output. Buyers should factor this confirmed degradation into their application before purchasing. The nylon backing and ETFE encapsulation are intact, and the SAE output connector is present. Please review our full photo set and contact us with any questions before buying.
Warranty Information
Additional Information
Specifications: |
|
Brand: |
Global Solar |
Model: |
22042B |
Secondary Model: |
P3-42 |
MPN: |
22042B |
SKU: |
51577 |
Type: |
Foldable CIGS Thin-Film Solar Panel |
Seller Notes: |
Panel only with SAE output cable. No external charge controller included. |
System Voltage: |
24V DC |
Rated Power: |
42 Watts |
Rated Voltage at MPP: |
33V DC |
Rated Current at MPP: |
1.25 Amps |
Short Circuit Current (Isc): |
2.0 Amps |
Open Circuit Voltage (Voc): |
62V (65V max design voltage at 0°C) |
Solar Cell Technology: |
CIGS (Copper Indium Gallium Selenide) thin-film |
Encapsulation: |
ETFE over PET substrate |
Connector Type: |
SAE (exposed terminal negative) |
Color: |
Black |
Folded Length: |
14.5 in (368 mm) |
Folded Width: |
8.5 in (216 mm) |
Folded Thickness: |
1.4 in (36 mm) |
Unfolded Length: |
52.5 in (1333 mm) |
Unfolded Width: |
30 in (762 mm) |
Unfolded Thickness: |
0.1 in (2.5 mm) |
Power-to-Weight Ratio: |
20 watt/lb (44 watt/kg) |
Material: |
Rip-stop nylon with CIGS thin-film cells |
Compliance / Standards: |
MIL-STD-810E |
Temperature Coefficient (Power): |
-0.43 %/°C |
Temperature Coefficient (Voc): |
-0.38 %/°C |
Voc at -20°C: |
38V / 73V |
Voc at -40°C: |
38V / 78V |
Country/Region of Manufacture: |
United States |
Form Factor: |
Foldable / Portable |
Condition Notes: |
Global Solar 22042B P3 42W CIGS foldable solar panel — NOS in storage since 2014. Manufacturer seconds; minor cosmetic artifacts possible. In-house testing confirmed ~50% of rated 42W output; sun-soaking did not improve performance. |
