Global Solar 42W 24V CIGS Foldable Solar Panel P3 Desert Camo ETFE MIL-STD-810E
This is a new old stock Global Solar P3 Portable Power Pack — a 42-watt, 24-volt foldable CIGS thin-film solar panel developed for the US military. Built by Global Solar Energy (Tucson, AZ), these panels were designed as a lightweight, portable 24V battery charger for field operations. They use copper indium gallium selenide (CIGS) thin-film cells encapsulated in ETFE (ethylene tetrafluoroethylene), a durable fluoropolymer film that offers superior UV and weathering resistance compared to standard PET-backed flexible panels. The panels are factory seconds from Global Solar's P3 Division and have been in conditioned storage since approximately 2014; they are new and unused but may show minor cosmetic artifacts from the manufacturing process or from years of storage and handling.
Specifications & What's Included
- Manufacturer: Global Solar Energy, Inc. (Tucson, Arizona)
- Product line: P3 Portable Power Pack
- Model number: 22042B (24V version)
- Rated power output: 42 Watts
- System voltage rating: 24V DC
- Rated voltage at MPP (Vmp): 33V (24V system)
- Rated current at MPP (Imp): 1.25A (24V system)
- Short circuit current (Isc): 2.0A (24V system)
- Open circuit voltage (Voc) @ 25°C: 33V
- Open circuit voltage (Voc) @ 0°C: 65V — NOTE: unconnected open-circuit voltage can reach up to 65V; for 24V systems only

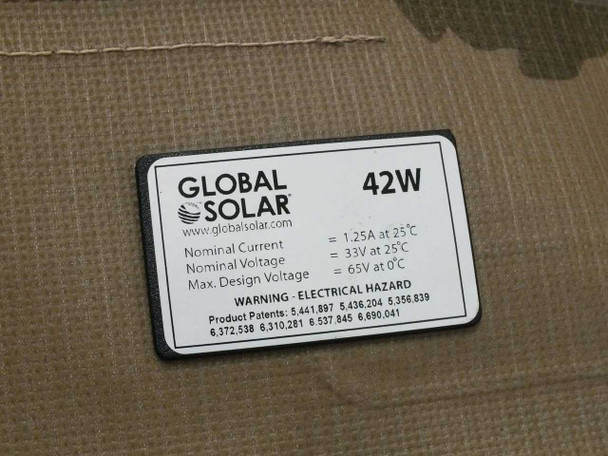

- Nominal current: 1.25A at 25°C (per panel label)
- Max design voltage: 65V at 0°C
- Temperature coefficient – power: −0.43 %/°C
- Temperature coefficient – voltage: −0.38 / −0.33 %/°C
- Cell operating temperature range: −40°C to +80°C (−40°F to 176°F)
- Solar cell technology: CIGS (copper indium gallium selenide) thin-film
- Encapsulation: ETFE (ethylene tetrafluoroethylene) — enhanced UV and weathering resistance
- Color / finish: Desert Camo (3-color desert camouflage fabric)
- Folded dimensions: 14.5 × 8.5 × 1.4 in (368 × 216 × 36 mm)
- Unfolded dimensions: 52.5 × 30 × 0.1 in (1333 × 762 × 2.5 mm)
- Power-to-weight ratio: 20 W/lb (44 W/kg)

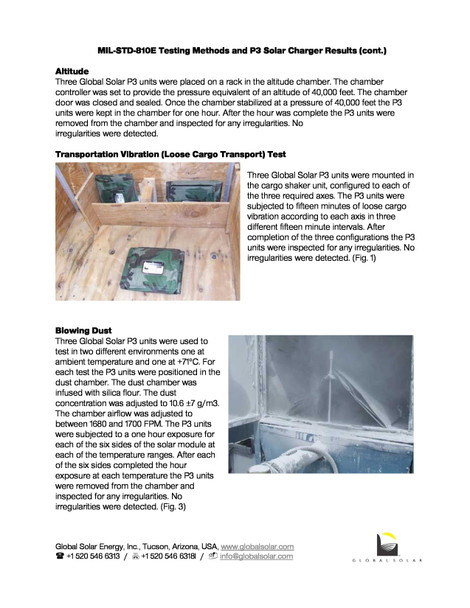

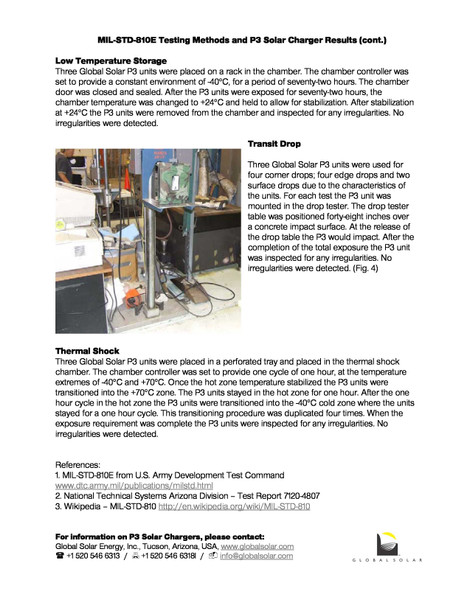

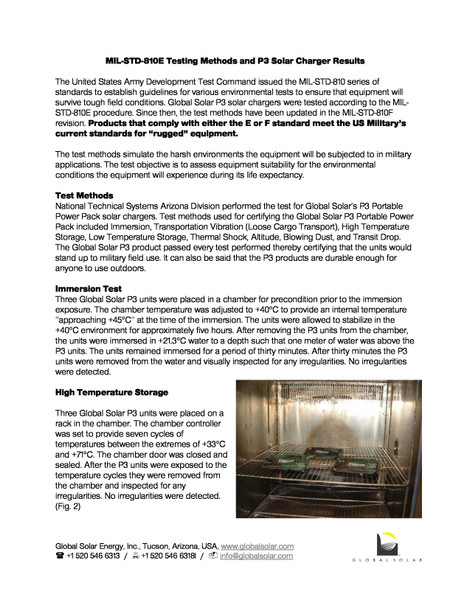

- Military standard compliance: MIL-STD-810E (US Army standard environmental tests)
- Output: unregulated DC — designed for battery charging only (not for direct connection to regulated loads)

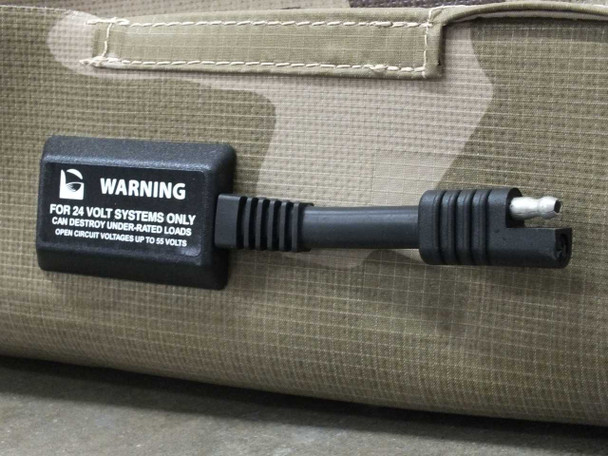

- Includes: integrated military-style output connector with warning label (24V systems only)
- New old stock — factory seconds; minor cosmetic artifacts from manufacturing or storage possible
Applications
The Global Solar P3 Portable Power Pack was developed specifically for US military field use as a lightweight, packable 24V battery charger — designed to recharge vehicle batteries and power 24V field electronics in austere environments. The CIGS thin-film technology offers a meaningful advantage over conventional crystalline silicon in portable applications: CIGS cells maintain better output under low-light and high-temperature conditions and can be integrated into flexible, foldable substrates far more effectively than rigid silicon wafers. The ETFE encapsulation makes these panels substantially more durable and longer-lived than standard PET-laminated flexible panels, which is why the design was chosen for military procurement. MIL-STD-810E qualification means the panels passed the US Army's suite of environmental tests covering temperature extremes, humidity, vibration, and shock. Beyond military use, these panels are well-suited for off-grid and expedition applications where size and weight matter: vehicle battery maintenance, remote communications, and portable 24V charging in the field. Because the output is unregulated, a charge controller or battery is required in the circuit — these panels should not be connected directly to sensitive electronics.
These Global Solar P3 42W 24V CIGS Foldable Solar Panels are new old stock from Global Solar's P3 Division. They are factory seconds, meaning they may have small cosmetic artifacts from the original manufacturing process as well as minor surface wear from years of storage and handling since 2014. They have been kept in conditioned storage and are otherwise new and unused — never installed or deployed. Cosmetically, the panels appear clean overall; the desert camo fabric and CIGS cell surfaces are intact on the units photographed. Because these are factory seconds, buyers should expect the possibility of minor blemishes such as small marks, wrinkles, or surface artifacts on the fabric or laminate — these do not affect electrical function. Each panel ships with its integrated output connector. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Specifications: |
|
Brand: |
Global Solar |
Model: |
P3-42 / 22042B |
MPN: |
22042B |
Secondary Model: |
P3 Portable Power Pack |
Type: |
Foldable CIGS Thin-Film Solar Panel |
SKU: |
51575 |
Rated Power Output: |
42 Watts |
System Voltage: |
24V DC |
Rated Voltage at MPP (Vmp): |
33V (24V system) |
Rated Current at MPP (Imp): |
1.25A (24V system) |
Open Circuit Voltage (Voc) @ 25°C: |
33V |
Open Circuit Voltage (Voc) @ 0°C: |
65V |
Max Design Voltage: |
65V at 0°C |
Nominal Current: |
1.25A at 25°C |
Short Circuit Current (Isc): |
4.0A / 2.0A |
Temperature Coefficient – Power (%/°C): |
-0.43 |
Temperature Coefficient – Voltage (%/°C): |
-0.38 / -0.33 |
Solar Cell Technology: |
CIGS (Copper Indium Gallium Selenide) thin film |
Encapsulation: |
ETFE (Ethylene Tetrafluoroethylene) |
Color / Finish: |
Desert Camo |
Dimensions – Folded (L×W×T): |
14.5 × 8.5 × 1.4 in (368 × 216 × 36 mm) |
Dimensions – Unfolded (L×W×T): |
52.5 × 30 × 0.1 in (1333 × 762 × 2.5 mm) |
Power-to-Weight Ratio: |
20 W/lb (44 W/kg) |
Military Standard Compliance: |
MIL-STD-810E |
Application: |
24V battery charging, military field use, portable power |
Output Type: |
Unregulated DC — intended for battery charging only |
Connector Type: |
Proprietary military-style connector (included) |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Panel with integrated output connector. Factory seconds — minor cosmetic artifacts possible. New old stock stored since 2014. |
Condition Notes: |
Global Solar P3 42W 24V CIGS foldable solar panel — new old stock, factory seconds. May have minor cosmetic artifacts from manufacturing and storage since 2014. New and unused, never deployed. Ships with output connector. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
