Glo-Quartz TR91-12A Infrared Belt Dryer 9kW 240V 38A 12" Belt 96" Semiconductor
The Glo-Quartz TR91-12A is a tabletop infrared conveyor belt dryer manufactured by Glo-Quartz Electric Heater Co., Inc. (Pasadena, CA / Mentor, OH). It uses a quartz infrared lamp array to heat parts as they pass through the tunnel on a continuous stainless steel mesh belt, providing adjustable conveyor speed and a single-zone temperature control. This unit was removed from a semiconductor manufacturing facility and has been powered and tested at our facility — the belt runs smoothly and the unit heats to 200°F at 18 amps, with a maximum tested temperature of 345°F at TEMP dial setting 48.
Specifications & What's Included
- Manufacturer: Glo-Quartz Electric Heater Co., Inc. — Pasadena, CA / Mentor, OH
- Model / Cat No.: TR91-12A / Cat No. A9
- Power Rating: 240V AC, Single Phase, 38A, 9kW
- Belt Width: 12 inches
- Belt Length: 96 inches (192 inches total loop)
- Maximum Belt Speed: 16 ft/min (192 in/min)
- Minimum Belt Speed: 0.37 in/min (4.4 in/min)
- Heating Chamber Dimensions: 45"L x 13"W x 4-3/4"H
- Overall Dimensions: 109"L x 20"W x 36"H
- Tested Temperature: 345°F at TEMP dial setting 48 (TEMP dial range: 0–84)

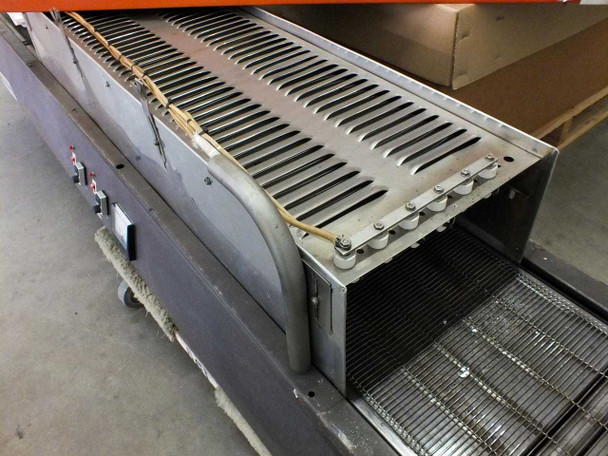

- Heating Element: Quartz infrared lamp array (multiple lamps visible in tunnel, ceramic lamp sockets)

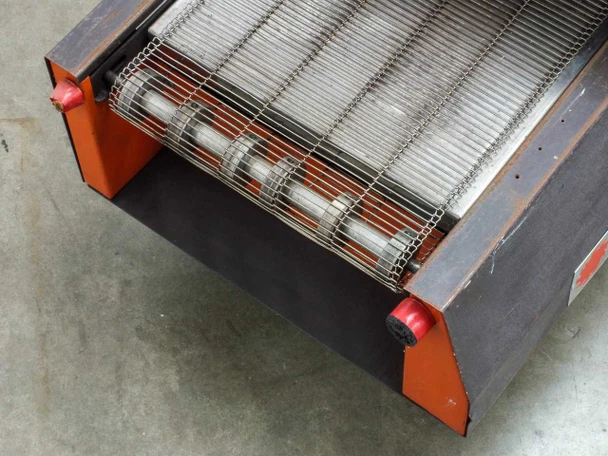

- Belt Type: Stainless steel wire mesh conveyor belt

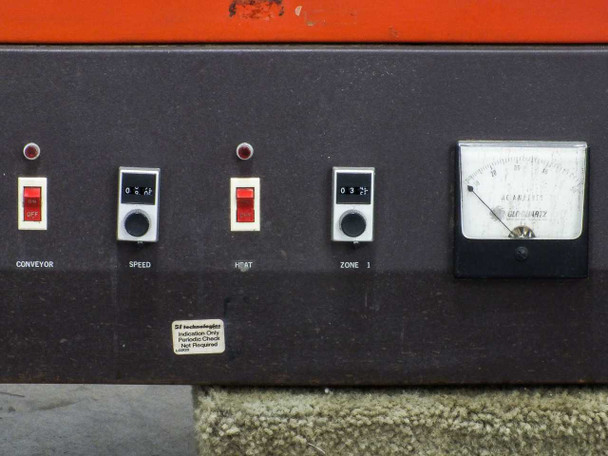

- Controls: Conveyor on/off switch, Speed rotary dial, Heat on/off switch, Zone 1 rotary dial
- Panel Meter: Glo-Quartz branded AC Amperes analog panel meter (0–50A scale)
- Additional Controls: Three-position rocker switch block and fuse holder on side panel
- Exhaust: Top-mounted exhaust duct hood with flexible duct connector

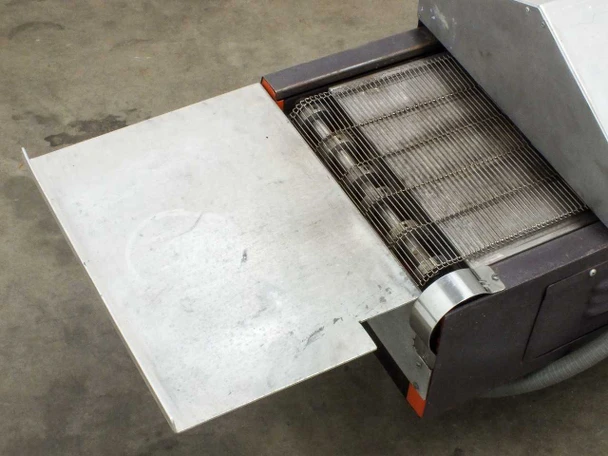

- Unload Tray: Stainless steel exit tray at belt discharge end
- Mobility: Unit sits on casters for shop-floor repositioning
Applications
Infrared conveyor belt dryers like the Glo-Quartz TR91-12A are used in electronics and semiconductor manufacturing to cure, dry, or thermally process parts moving along a continuous conveyor. Common applications include drying flux residues and solder paste after reflow or wave soldering, curing conductive adhesives and screen-printed inks on substrates and PCBs, drying coatings on ceramic and semiconductor wafer carriers, and baking conformal coatings. The adjustable belt speed and variable-zone temperature control allow operators to dial in dwell time and heat exposure to match the requirements of different materials and process steps. These units were standard process equipment in semiconductor fabs, hybrid circuit assembly lines, thick-film processing shops, and PCB manufacturing facilities from the 1970s through the 1990s. Glo-Quartz Electric Heater Co. was a well-known U.S. manufacturer of infrared process heating equipment, and their quartz lamp belt dryers remain sought after for lab-scale and pilot-production use due to their robust construction and straightforward controls.
This Glo-Quartz TR91-12A Infrared Belt Dryer has been powered and tested at our facility and is in good working order. The belt runs smoothly, and at 18 amps the unit heats to 200°F; the temperature was tested up to 345°F with the TEMP dial set to 48 (dial range is 0–84). The unit was removed from a semiconductor manufacturing facility that closed. Cosmetically the orange sheet metal housing shows general industrial use wear and minor scuffing; the exhaust hood shows some tape and wear at the transition joint. The stainless mesh belt and quartz lamp array appear intact and in good condition. Please view our photo set and contact us if you have any questions.
