Description
Gespac GESVIG-4VME VME Video Module Mouse Keyboard CRT DB9 DB15 Ports

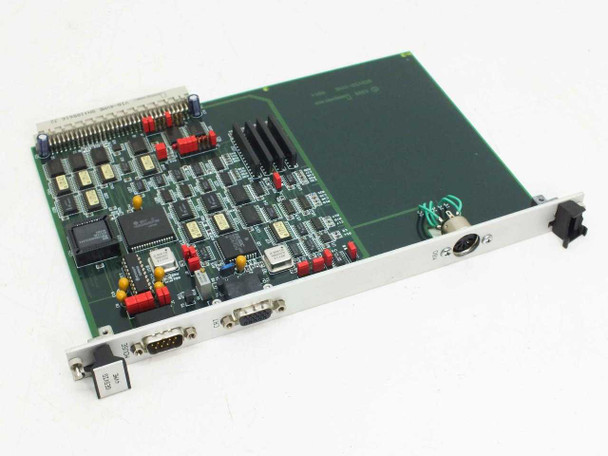

The Gespac GESVIG-4VME is a VMEbus video and human-interface module designed to provide mouse, keyboard, and CRT display connectivity within a VME-based embedded computing system. It mounts in a standard VME card cage and routes peripheral I/O — mouse, keyboard, and monitor — through front-bracket connectors, keeping the human-machine interface cleanly integrated into the VME chassis.
Specifications & What's Included
- Model: GESVIG-4VME
- Manufacturer: Gespac (Switzerland)
- Bus: VMEbus (standard VME card edge connector)
- Form Factor: Single VME card/module
- Mouse Port: DB9 9-pin serial connector (front bracket)
- Keyboard Port: DIN-style keyboard connector (front bracket)
- CRT / Display Port: DB15 15-pin connector (front bracket, labeled MOUSE in close-up — note: DB15 is the CRT/display output)
- PCB copyright date: 1996 (Gespac)
- Module only — no cables or mounting hardware included
Applications
VMEbus was the dominant open-standard backplane for industrial embedded computing from the early 1980s through the 2000s, used extensively in military, aerospace, telecommunications, factory automation, and scientific instrumentation systems. A module like the GESVIG-4VME serves as the human-interface bridge in these systems — allowing operators to attach a standard CRT monitor, keyboard, and serial mouse to a VME single-board computer without routing those signals through a separate PC. Gespac, a Swiss manufacturer, produced a well-regarded line of VME peripheral and CPU cards for embedded and industrial control applications. These modules are still sought by integrators and maintenance engineers keeping legacy VME-based control systems and automated test equipment running.
This Gespac GESVIG-4VME VME Video Module has been visually inspected and appears to be in good condition. It was pulled from a working environment where it was previously in service, but has not been powered up or bench-tested at our facility. The PCB shows no obvious damage, and all front-bracket connectors — the DB9 mouse serial port, keyboard port, and DB15 CRT port — appear intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Gespac |
Model: |
GESVIG-4VME |
MPN: |
GESVIG-4VME |
Type: |
VME Video / Human Interface Module |
SKU: |
51987 |
Bus Type: |
VMEbus |
Form Factor: |
VME Card/Module |
Interface Type: |
VMEbus |
Mouse Port: |
DB9 Serial (9-pin) |
Keyboard Port: |
DIN / PS/2-style keyboard connector |
CRT / Display Port: |
DB15 (15-pin) CRT / VGA-style |
Seller Notes: |
Module only — no cables or mounting hardware included. |
Country/Region of Manufacture: |
Switzerland |
Condition Notes: |
This Gespac GESVIG-4VME VME Video Module has been visually inspected and appears to be in good condition. Pulled from a working environment; not bench-tested at our facility. All front-bracket connectors appear intact. |
