X-Axis Linear Slide Work Table Dual Pneumatic Cylinders Timer 133cm 29.5cm

X-Axis Linear Slide Work Table Dual Pneumatic Cylinders Timer 133cm 29.5cm Stroke

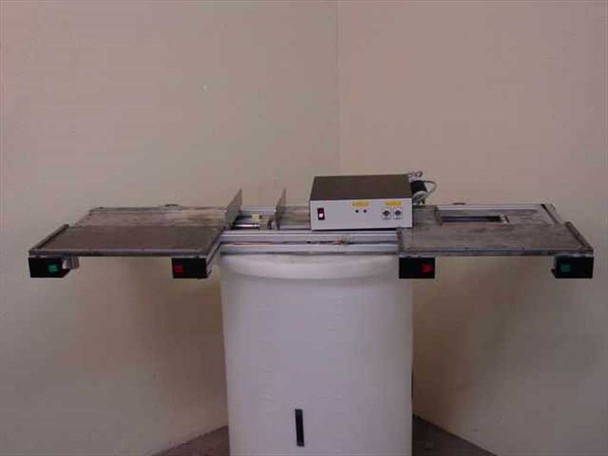

This is an unbranded X-axis linear slide work table driven by two pneumatic cylinders and controlled by a standalone timer/valve controller box. The table slides along a precision aluminum extrusion rail in the X-axis direction, with motion triggered and timed through the included control unit. It is a self-contained pneumatic linear positioning system intended for industrial automation and assembly applications.

Specifications & What's Included

• Type: Pneumatic X-axis linear slide work table
• Total length: 133 cm
• Total width: 50 cm
• Moving table width: 18 cm
• Stroke: 29.5 cm
• Total height: 16 cm
• Number of pneumatic cylinders: 2 (visible inline beneath the moving table)
• Frame: Aluminum extrusion rail construction
• Table surface: Aluminum plate (shows surface wear and staining)
• End-of-travel push-button switches: Green and red buttons mounted at each end of the table
• Pneumatic ports: 4 push-to-connect fittings labeled A1, B1, A2, B2 on the rail
• Electrical connector on rail: DB25 (25-pin D-Sub female)
• Included control box: Standalone enclosure with rocker power switch, V1/V2 LED indicators, T1/T2 adjustable dial timers
• Control box rear: 4 push-to-connect pneumatic ports (A1, B1, A2, B2) and Centronics 36-pin female connector
• Pneumatic tubing: Included — black push-to-connect tubing connecting rail to control box
• Power cord: Included — with NEMA twist-lock 20A, 250V plug
• Power requirements: 20A, 250V (requires appropriate twist-lock receptacle)

Applications

Pneumatic X-axis linear slide tables are used in industrial automation, assembly, and manufacturing environments where a workpiece or fixture needs to be moved a repeatable, fixed distance in one linear axis under timed pneumatic control. Common applications include pick-and-place stations, parts indexing, screen printing registration, PCB assembly fixtures, and laboratory automation setups where a timed reciprocating or single-direction linear stroke is needed. The dual-cylinder configuration provides balanced force across the width of the moving table, which is useful for carrying wider workpieces or fixtures without tipping. The integrated timer controller allows the operator to set dwell times for each pneumatic stroke independently, making it suitable for semi-automated production line stations where cycle timing needs to be adjustable without a PLC. This type of system is also commonly integrated into larger custom automation rigs as a sub-axis module.
