GE Fanuc IC693MDL741E 16-Pt Discrete Output Module 12/24VDC 0.5A Neg Logic

GE Fanuc IC693MDL741E 16-Pt Discrete Output Module 12/24VDC 0.5A Neg Logic

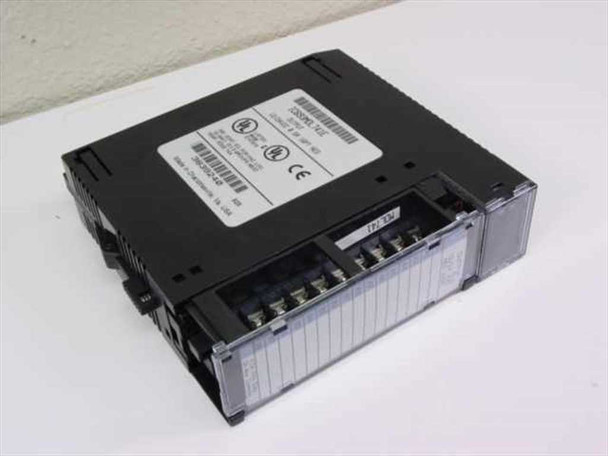

The GE Fanuc IC693MDL741E is a 16-point discrete DC output module for the Series 90-30 programmable logic controller (PLC) platform. It provides 16 individually fused negative-logic output points rated at 12/24VDC and 0.5A per point, arranged in two groups of 8 (Group A and Group B), and plugs directly into any Series 90-30 baseplate slot.

Specifications & What's Included

• Model: IC693MDL741E
• Type: 16-Point Discrete DC Output Module
• Output Voltage: 12/24VDC
• Output Current: 0.5A per point

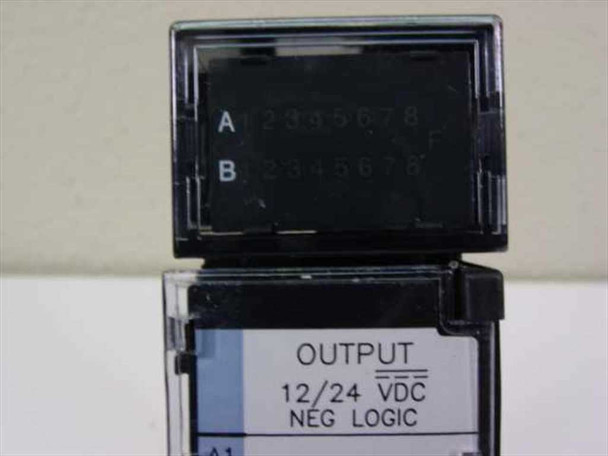

• Number of Output Points: 16 (2 groups of 8 — Group A and Group B)
• Logic Type: Negative Logic (Negative True)
• Compatible Platform: GE Fanuc Series 90-30 PLC baseplates

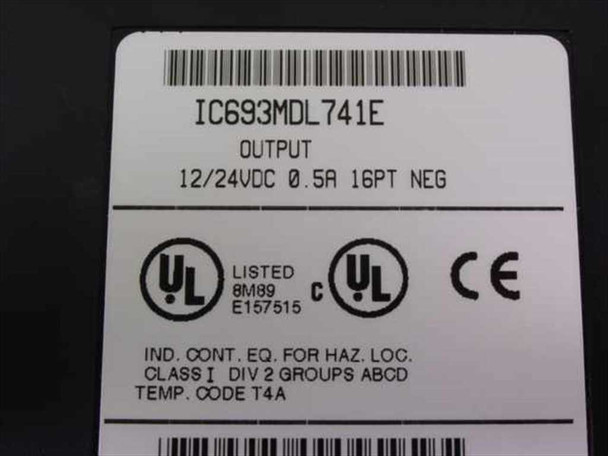

• Certifications: UL Listed (File E157515, 8M89), CE Mark
• Hazardous Location Rating: Class I, Division 2, Groups ABCD, Temperature Code T4A
• Terminal cover: present and intact
• Module only — no cables or documentation included

Applications

The Series 90-30 is one of GE Fanuc's most widely deployed modular PLC families, introduced in the early 1990s and used extensively throughout manufacturing, process control, material handling, and building automation. The IC693MDL741E output module is used to drive field devices such as solenoid valves, relays, pilot lights, and small DC actuators from the PLC's logic. The negative-logic (negative true) output configuration suits load switching on the negative side of the DC supply, which is common in many industrial and machine-tool control circuits. The Class I Div 2 hazardous location rating makes this module suitable for use in environments where flammable gases or vapors may be present under abnormal conditions — such as petrochemical, paint-spray, or solvent-handling applications. Series 90-30 hardware remains in active service in legacy and retrofit installations worldwide, and compatible modules like this one are commonly sought for system expansion, spare parts, and maintenance support.
