GE Fanuc IC693MDL655E 32-Pt 24VDC POS/NEG Fast Input Module Series 90-30 PLC

GE Fanuc IC693MDL655E 32-Pt 24VDC POS/NEG Fast Input Module Series 90-30 PLC

The GE Fanuc IC693MDL655E is a 32-point discrete input module for the Series 90-30 PLC platform. It accepts 24VDC signals and supports both positive (sourcing) and negative (sinking) logic configurations with fast response timing, making it suitable for high-speed input applications in industrial control systems. The module connects via two 20-pin IDC headers labeled AB and CD, grouping the 32 inputs into two banks.

Specifications & What's Included

• Model: IC693MDL655E
• Type: 32-point discrete input module
• Input voltage: 24VDC
• Logic type: POS/NEG (positive/negative — supports both sourcing and sinking)
• Response type: Fast
• Input current: 7.0 mA per point at 24VDC
• Connectors: Two 20-pin IDC headers (Group AB and Group CD)
• Compatible platform: GE Fanuc Series 90-30 PLC

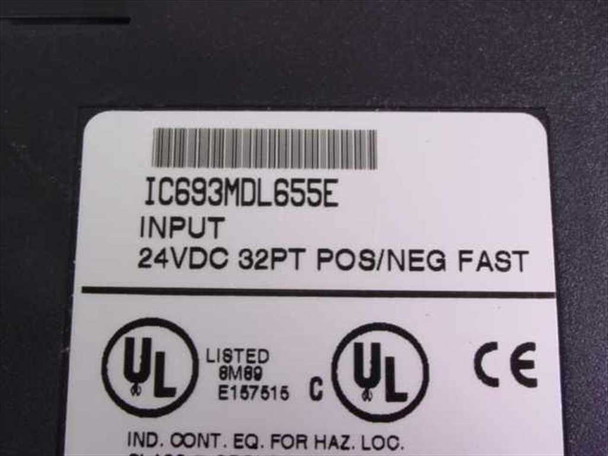

• Certifications: UL Listed (File 6M89, E157515), CE
• Hazardous location rating: UL Listed — Industrial Control Equipment for Hazardous Locations
• Form factor: Snap-in I/O module for Series 90-30 rack
• Module only — no cables or documentation included

Applications

The GE Fanuc Series 90-30 is a modular mid-range PLC platform widely used in manufacturing, process control, material handling, and building automation. Discrete input modules like the IC693MDL655E receive on/off signals from field devices — pushbuttons, limit switches, proximity sensors, and relay contacts — and report their states to the CPU for logic processing. The fast-response variant is used where input signals change rapidly and standard filter delays would cause missed events, such as in high-speed counting, registration control, or fast-acting safety interlocks. The POS/NEG logic compatibility allows the module to work with both NPN (current sinking) and PNP (current sourcing) field devices without rewiring. The Series 90-30 platform was introduced in the early 1990s and remains in active use across legacy installed bases in North American manufacturing facilities, with replacement and spare I/O modules like this one in ongoing demand for system maintenance and expansion.
