GE Fanuc IC693ALG390D 2-Point Analog Voltage Output Module Series 90-30 PLC

GE Fanuc IC693ALG390D 2-Point Analog Voltage Output Module Series 90-30 PLC

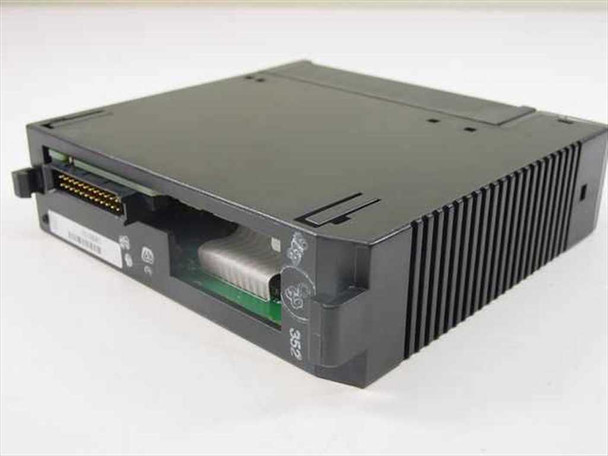

The GE Fanuc IC693ALG390D is a 2-point analog voltage output module designed for use in the Series 90-30 programmable logic controller (PLC) system. It converts digital values from the CPU into analog voltage signals, allowing the PLC to drive analog-controlled field devices such as variable-speed drives, valves, and proportional actuators. The module slots directly into the Series 90-30 backplane rack and is configured and addressed through the PLC programming software.

Specifications & What's Included

• Manufacturer: GE Fanuc
• Part Number / MPN: IC693ALG390D
• Output Type: Analog Voltage
• Number of Output Points: 2
• Compatible System: GE Fanuc Series 90-30 PLC
• Terminal Block: 20-position screw terminal wiring block (visible in photos)
• Wiring Diagram Reference: 44A729182-017R05

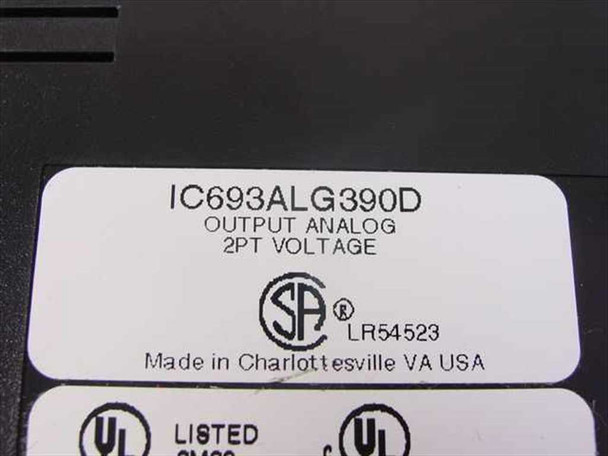

• Certifications: UL Listed, CSA (LR54523)
• Country of Manufacture: USA (Charlottesville, VA)
• Form Factor: Plug-in rack module
• Includes: Module only — no cables or mounting hardware

Applications

The Series 90-30 is one of GE Fanuc's most widely deployed mid-range PLC platforms, introduced in the late 1980s and used extensively in discrete manufacturing, process control, packaging, and material handling automation throughout the 1990s and 2000s. Analog output modules like the IC693ALG390D are used wherever the PLC needs to command a continuously variable device — for example, setting the speed reference on a variable frequency drive, positioning a proportional control valve, or commanding an analog-input servo amplifier. These modules remain in demand for maintaining and expanding existing Series 90-30 installations, which continue to operate in factories, water treatment facilities, and process plants worldwide.
