Description

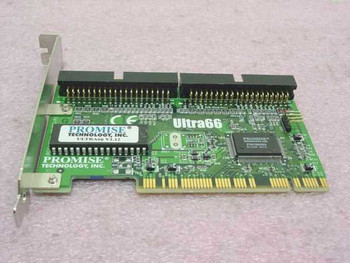

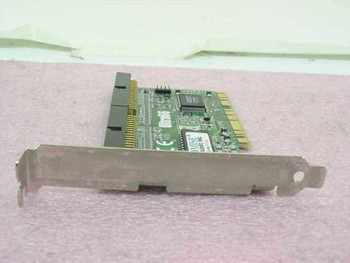

Promise Ultra66 IDE PCI Controller Card Gateway 6000934 ATA-66 2-Channel
The Promise Ultra66 is a PCI bus IDE controller card that adds two additional ATA-66 (Ultra ATA/66) channels to a desktop PC, supporting up to four IDE drives per card. Built around the Promise PDC20262 controller chip, it was commonly supplied by Gateway as an OEM upgrade option (Gateway P/N 6000934) to expand hard drive capacity in late-1990s desktop systems. The card provides a significant bandwidth improvement over the standard onboard IDE controller, with a maximum transfer rate of 66 MB/s per channel.
Specifications & What's Included
- Brand: Promise Technology
- Model: Ultra66
- Gateway OEM Part Number: 6000934
- Chipset: Promise PDC20262 controller
- Bus Interface: PCI (32-bit)
- Drive Interface: ATA-66 / Ultra ATA/66
- Number of IDE Channels: 2
- Maximum Drives Supported: 4 (2 per channel, master/slave)
- Maximum Transfer Rate: 66 MB/s per channel
- Connector Type: Two 40-pin IDE headers
- Form Factor: Standard PCI card with full-height bracket
- Card only — no IDE cables or driver media included
Applications
The Promise Ultra66 was a popular IDE controller upgrade in the late 1990s and early 2000s, a period when ATA-66 hard drives were becoming standard but many motherboards still shipped with older ATA-33 onboard controllers. Adding this card to a PCI slot instantly unlocked the full throughput of newer ATA-66 drives. Gateway bundled it as an OEM option in several of their desktop lines, giving systems the ability to run additional IDE hard drives or optical drives beyond the two channels provided by the motherboard. Today these cards remain useful for vintage PC builds, retro gaming setups, and legacy system maintenance where PCI slots are available and additional IDE devices need to be connected. The PDC20262 chipset was well-supported under Windows 95, 98, Me, NT 4.0, and 2000, making drivers easy to source for period-correct systems.
This Promise Ultra66 IDE PCI controller card (Gateway P/N 6000934) has been inspected and is in good used condition. The PCB is clean with no visible damage, and both 40-pin IDE connectors appear intact. There is light handling wear consistent with prior installation. Card only — no IDE cables or driver media are included. Please view our photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Promise Technology |
Model: |
Ultra66 |
MPN: |
6000934 |
Secondary Model: |
GW P/N 6000934 |
SKU: |
24281 |
Type: |
IDE PCI Controller Card |
Interface: |
PCI |
Drive Interface: |
ATA-66 (Ultra ATA/66) |
Number of Channels: |
2 |
Max Drives Supported: |
4 |
Form Factor: |
PCI Card |
Chipset: |
Promise PDC20262 |
Compatible With: |
Gateway desktops and standard PCI-equipped PCs |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
Card only; no cables or drivers included. |
Condition Notes: |
This Promise Ultra66 IDE PCI controller card (Gateway P/N 6000934) is in good used condition. PCB is clean, connectors intact, light handling wear. Card only — no cables or drivers included. |
