Quantum Fireball EX 6.4 AT 5500915 6.4GB 3.5" IDE Hard Drive ATA HDD Gateway

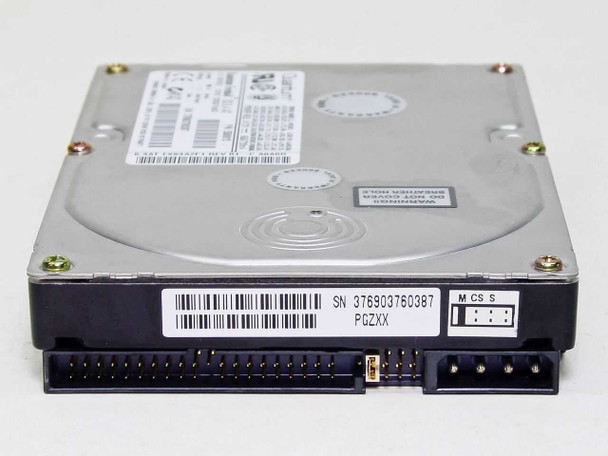

The Quantum Fireball EX 6.4 AT is a 3.5-inch parallel ATA (IDE) hard drive with 6.4GB of storage capacity. It uses a 40-pin ATA interface and standard 4-pin Molex power connector, making it a drop-in fit for desktop PCs from the late 1990s that used the IDE/PATA standard. Part number 5500915 was supplied by Gateway as an OEM drive in their desktop systems.
Specifications & What's Included
- Manufacturer: Quantum
- Product Line: Fireball EX
- Part Number (MPN): 5500915
- Secondary Model Code: PGZXX
- Capacity: 6.4 GB
- Form Factor: 3.5-inch
- Interface: Parallel ATA / IDE (40-pin)
- Cylinders / Heads / Sectors: 13,328 / 15 / 63
- Power Requirements: 5V / 12V DC, 650 / 720 mA
- Jumper Settings: M = Master, CS = Cable Select, S = Slave
- Made in Japan
- Drive only — no cables or accessories included
Applications
The Quantum Fireball series was one of the most widely used desktop hard drive lines of the late 1990s, found in Gateway, Compaq, Dell, and HP consumer desktops of the era as both factory-installed and upgrade drives. The Fireball EX was the enhanced version of the line, aimed at mainstream desktop use during a period when 5–10GB drives represented the upper end of the consumer market. These drives connect via the 40-pin parallel ATA (PATA/IDE) interface, which was the dominant desktop storage standard from the mid-1980s through the mid-2000s before SATA took over. Today they are sought for legacy system restoration, vintage PC builds, and period-correct hardware repairs — particularly for late-1990s Gateway and Compaq machines that originally shipped with this exact drive.
This Quantum Fireball EX 6.4 AT 6.4GB IDE hard drive has been tested, formatted, and wiped at our facility and is in good working condition. All previous data has been securely erased. The drive shows light cosmetic wear consistent with normal use — minor scuffs on the casing and slight wear to the label — but is physically intact with all connectors in good shape. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Quantum |
Model: |
Fireball EX 6.4 AT |
MPN: |
5500915 |
Secondary Model: |
PGZXX |
Type: |
Internal Hard Drive (HDD) |
SKU: |
38792 |
Storage Capacity: |
6.4 GB |
Interface: |
ATA/IDE (40-pin Parallel ATA) |
Form Factor: |
3.5" |
Cylinders/Heads/Sectors: |
13328/15/63 |
Power Requirements: |
5V / 12V DC, 650/720 mA |
Jumper Settings: |
M=Master, CS=Cable Select, S=Slave |
Country/Region of Manufacture: |
Japan |
Compatible With: |
Gateway systems; any ATA/IDE desktop PC |
Seller Notes: |
Tested, formatted, and wiped. Drive only — no cables or accessories included. |
Condition Notes: |
This Quantum Fireball EX 6.4 AT 6.4GB IDE hard drive has been tested, formatted, and wiped. In good working condition. All previous data securely erased. Light cosmetic wear on casing. |
