Description
FutureTel Video Sphinx Pro MPEG-1 Capture 809-00077 w/ Software Manual Cords
The FutureTel Video Sphinx Pro is an external MPEG-1 video capture and encoding device for Windows PCs. It connects via the parallel port and accepts S-Video and composite video inputs, allowing users to capture analog video directly from camcorders, VCRs, and other video sources and encode it to MPEG-1 format on the fly. The unit also accepts audio input and ships with MPEG-1 editing software for cut-and-paste video assembly on the desktop.
Specifications & What's Included
- Manufacturer: FutureTel
- Model: Video Sphinx Pro

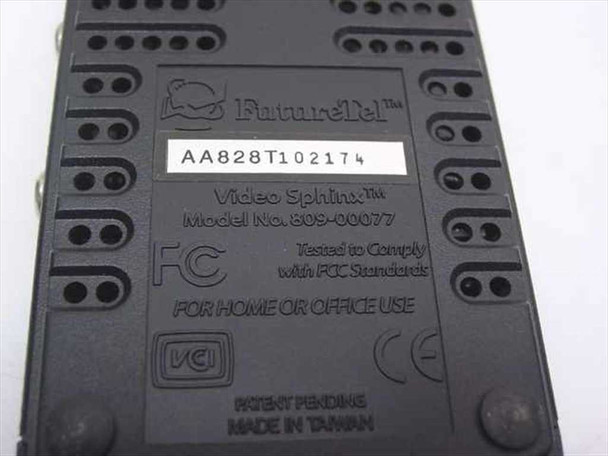

- Model Number: 809-00077
- Video Output Format: MPEG-1
- PC Interface: Parallel port (external connection)

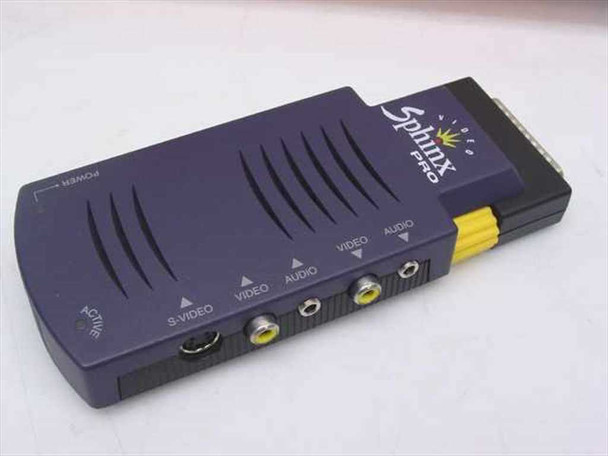

- Video Inputs: S-Video, Composite (RCA)
- Audio Inputs: 3.5mm / RCA
- Enclosure: Purple plastic external unit

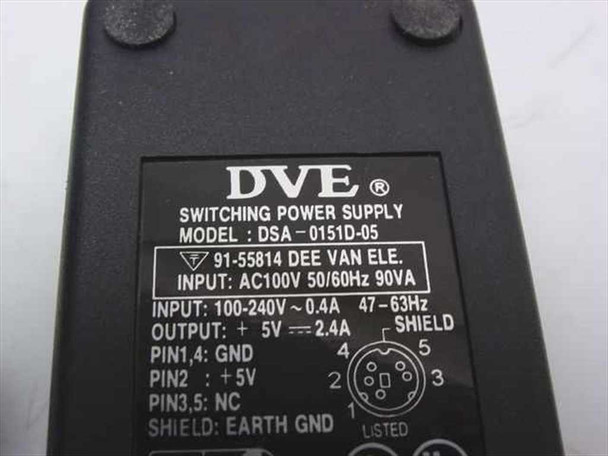

- Power Supply: DVE DSA-0151D-05 switching power supply — Input: 100–240V AC, 50/60Hz, 0.4A; Output: +5V DC, 2.4A
- Regulatory: FCC, CE, VCCI
- Country of Manufacture: Taiwan

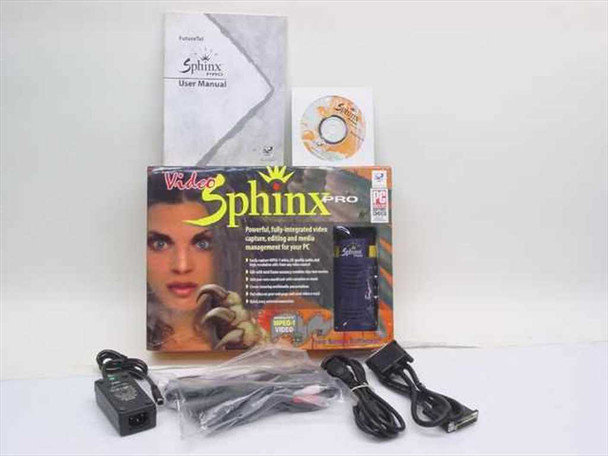

- Includes: Video Sphinx Pro unit, original retail box, software CD, user manual, cords, and DVE power supply
Applications
The Video Sphinx Pro belongs to a category of external parallel-port video capture devices that were popular in the mid-to-late 1990s, when internal PCI capture cards were expensive and complex to install. These units let PC users with a standard parallel port digitize and compress video from consumer camcorders, VHS decks, and laserdisc players directly to MPEG-1 — the same format used for Video CD (VCD). The Sphinx Pro targeted home users and small studios looking to archive home video, produce VCDs, or edit short video clips without investing in a full non-linear editing workstation. At its 1998 launch, MPEG-1 hardware encoders of this kind occupied a niche between software-only encoding (slow on period hardware) and expensive professional MPEG-2 systems. Today this unit is primarily of interest to collectors of late-1990s multimedia computing hardware and to those maintaining period-accurate PC multimedia systems.
This FutureTel Video Sphinx Pro MPEG-1 capture unit (model 809-00077) has been inspected and appears to be in good used condition. It has not been powered up or tested at our facility, but it comes with its original retail box, software CD, user manual, cords, and DVE switching power supply — all visible and accounted for in the photos. The purple enclosure shows light handling wear consistent with normal use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
FutureTel |
Model: |
Video Sphinx Pro |
MPN: |
809-00077 |
SKU: |
30200 |
Type: |
External MPEG-1 Video Capture Device |
Interface: |
Parallel Port |
Video Input: |
S-Video, Composite (RCA) |
Audio Input: |
3.5mm / RCA |
Video Format: |
MPEG-1 |
Connection Type: |
External / Parallel Port |
Power Supply: |
DVE DSA-0151D-05, 100-240V AC, 5V DC 2.4A |
Power Input: |
100-240V AC, 50/60Hz, 0.4A |
Power Output: |
+5V DC, 2.4A |
Country/Region of Manufacture: |
Taiwan |
Form Factor: |
External / Handheld Unit |
Compatible With: |
PC with parallel port, Windows |
Includes: |
Unit, software CD, user manual, cords, power supply |
Regulatory: |
FCC, CE, VCCI |
Seller Notes: |
Includes software CD, user manual, cords, and DVE switching power supply (DSA-0151D-05). |
Condition Notes: |
This FutureTel Video Sphinx Pro (809-00077) is in good used condition. Not powered or tested at our facility. Includes retail box, software CD, user manual, cords, and power supply. Light handling wear. Contact us with any questions. |
