Description
Future Domain TMC-3260 PCI SCSI Host Adapter 01-03260-010-01 36C70 1994

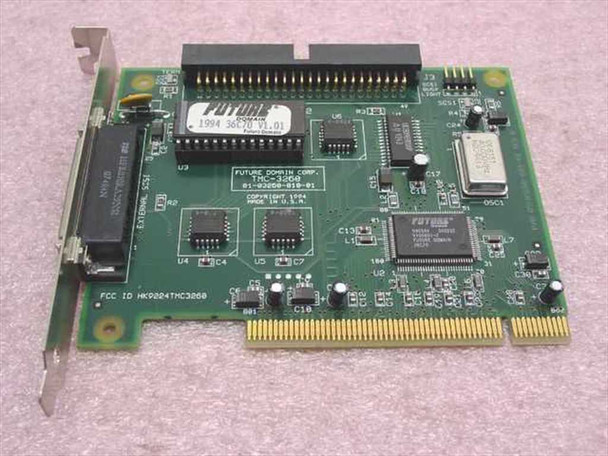

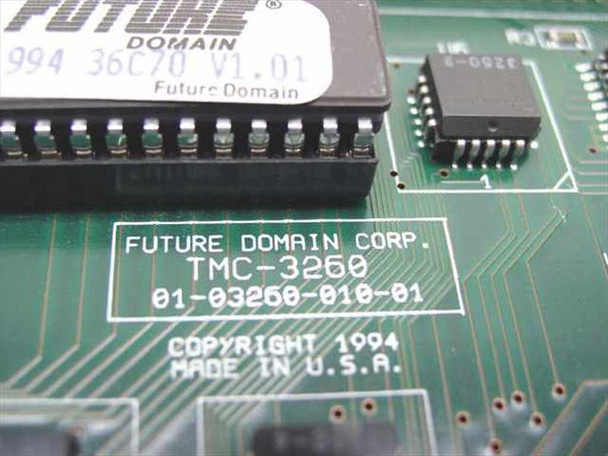

The Future Domain TMC-3260 is a PCI-bus SCSI host adapter manufactured by Future Domain Corporation in 1994. It provides SCSI-2 connectivity for PCI-based desktop PCs, supporting both internal and external SCSI devices through its onboard 50-pin IDC header and rear-bracket DB25 external port. The card is built around Future Domain's 36C70 V1.01 controller chip and carries FCC ID HK9024TMC3260.
Specifications & What's Included
- Manufacturer: Future Domain Corporation
- Model: TMC-3260
- Part Number (MPN): 01-03260-010-01
- Controller Chipset: Future Domain 36C70, revision V1.01
- Bus Interface: PCI (half-height card)
- SCSI Standard: SCSI-2 (narrow SCSI, 8-bit)
- Internal Connector: 50-pin IDC header
- External Connector: DB25 (25-pin) SCSI port on rear bracket
- Year of Manufacture: 1994
- Country of Manufacture: Made in U.S.A.
- FCC ID: HK9024TMC3260
- Included: Card with bracket only — no cables or accessories
Applications

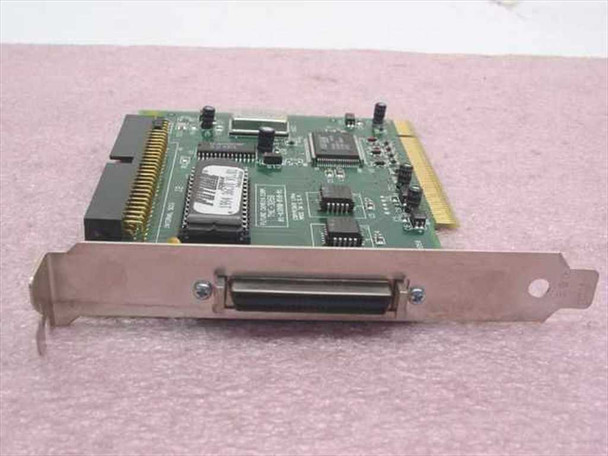

The Future Domain TMC-3260 is a mid-1990s PCI SCSI host adapter from the era when PCI was replacing ISA as the standard expansion bus in desktop PCs. Cards like this were the primary way to connect SCSI-2 hard drives, CD-ROM drives, scanners, tape drives, and other SCSI peripherals to IBM-compatible PCs running MS-DOS, Windows 3.x, Windows 95, Windows 98, and Windows NT. Future Domain was a well-known SCSI adapter brand of the period, competing with Adaptec and BusLogic. The TMC-3260 supports both internal devices via its 50-pin IDC ribbon-cable header and external SCSI devices through the DB25 port on the bracket — making it a versatile single-card solution for mixed SCSI chains. Today these cards remain in demand for vintage PC restoration, legacy workstation maintenance, and retro computing builds that require SCSI-2 support in a PCI slot.
This Future Domain TMC-3260 PCI SCSI Host Adapter has been inspected and appears to be in good condition. It was pulled from a working environment. The board looks clean with no visible damage, broken traces, or missing components. The external DB25 SCSI port and bracket are intact. Normal light handling marks are present on the PCB edges but nothing out of the ordinary for a card of this age. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Future Domain |
Model: |
TMC-3260 |
MPN: |
01-03260-010-01 |
Type: |
PCI SCSI Host Adapter |
SKU: |
34117 |
Chipset: |
36C70 V1.01 |
Bus Interface: |
PCI |
SCSI Standard: |
SCSI-2 |
Internal Connector: |
50-pin IDC (narrow SCSI) |
External Connector: |
DB25 (25-pin external SCSI port) |
Form Factor: |
Half-Height PCI Card |
Year of Manufacture: |
1994 |
Country/Region of Manufacture: |
United States |
FCC ID: |
HK9024TMC3260 |
Condition: |
Used – Pulled from Working Environment |
Compatible With: |
PCI-bus PCs, Windows 95/98/NT, MS-DOS systems |
Seller Notes: |
Card only; no cables or accessories included. |
Condition Notes: |
Future Domain TMC-3260 PCI SCSI Host Adapter, MPN 01-03260-010-01. Inspected and in good condition, pulled from a working environment. Board is clean with no visible damage. Card only, no cables. |
