Fujitsu ICL Orion 003-023135-002 Type 21000 POS Pass-By Barcode Scanner

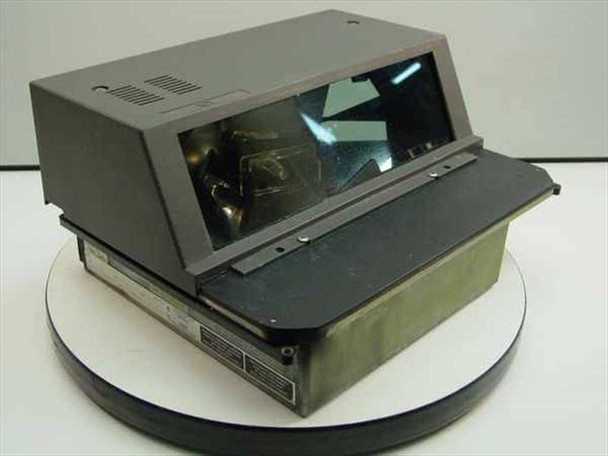

The Fujitsu ICL Orion Type 21000 is a countertop pass-by laser barcode scanner designed for point-of-sale use in grocery stores, supermarkets, and general retail environments. It uses a fixed laser scanning pattern to read barcodes as items are passed over or through the scanning window, eliminating the need for cashiers to aim a handheld gun. Manufactured in the USA, this unit carries part number 003-023135-002 and was branded under both the Fujitsu and ICL names.
Specifications & What's Included
- Manufacturer: Fujitsu / ICL
- Model: Orion Type 21000
- Part Number: 003-023135-002
- Scanner Type: Pass-by laser POS barcode scanner
- Form Factor: Countertop / in-counter pass-by unit
- Country of Manufacture: United States
- Internal System Board: ICL System Board, Plug In Type K604G3V1, Rev A06
- System Board PWA: 8009692542

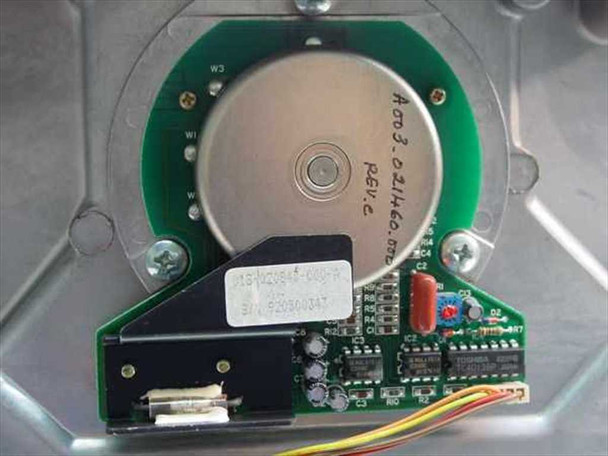

- Internal motor/scan mechanism: Aom 3.021460.000, Rev C
- UL Listed: E53524

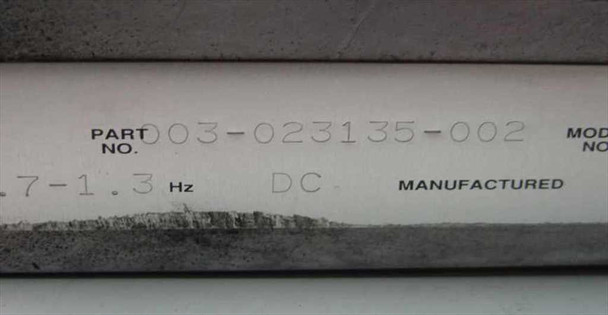

- Laser Product Classification: Class I (per underside label)
- Unit only — no interface cables or accessories included
Applications
Pass-by barcode scanners of this type were the standard checkout scanning solution in grocery stores and high-volume retail environments from the 1980s through the 1990s. Unlike handheld scanners, pass-by units are mounted flush in or on the checkout counter and use an omni-directional laser pattern to read barcodes as a cashier slides items across the scanning window — enabling faster throughput with less operator effort. The Orion line was part of ICL's point-of-sale systems business, which Fujitsu acquired; these scanners were used in integrated POS systems alongside ICL terminals and receipt printers. Today, units like this are sought by legacy POS service technicians maintaining older retail systems, by replacement-parts buyers, and by collectors of early retail computing hardware. The internal System Board design, plug-in modular construction, and USA manufacturing are characteristic of late-1980s to early-1990s commercial POS hardware.
This Fujitsu ICL Orion Type 21000 POS pass-by barcode scanner has been inspected and is in good used condition. The housing shows normal wear consistent with prior retail or service use. The scanner window and internal optics appear intact. The interior System Board (ICL, Rev A06) and associated components are present and look complete. No cables or accessories are included with this unit. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Fujitsu / ICL |
Model: |
Type 21000 |
MPN: |
003-023135-002 |
Secondary Model: |
Orion |
Type: |
Pass-By POS Barcode Scanner |
SKU: |
20166 |
Condition: |
Used – Inspected |
Country/Region of Manufacture: |
United States |
Form Factor: |
Countertop / In-Counter Pass-By |
Scanner Type: |
Laser Pass-By |
Application: |
Point of Sale (POS), Grocery, Retail |
System Board Part: |
ICL System Board, Plug In Type K604G3V1 |
System Board PWA: |
PWA 8009692542 |
System Board Rev: |
Rev A06 |
Seller Notes: |
Unit only; no cables or accessories observed. Inspected and in good condition. |
Condition Notes: |
Fujitsu ICL Orion Type 21000 POS barcode scanner. Inspected and in good used condition. Normal cosmetic wear. Interior System Board present. No cables included. |
