Fuji VG-400C-10W Impulse Sealer Gas Flushing Hugle Model 306 Ionizer 200V 2.6kW

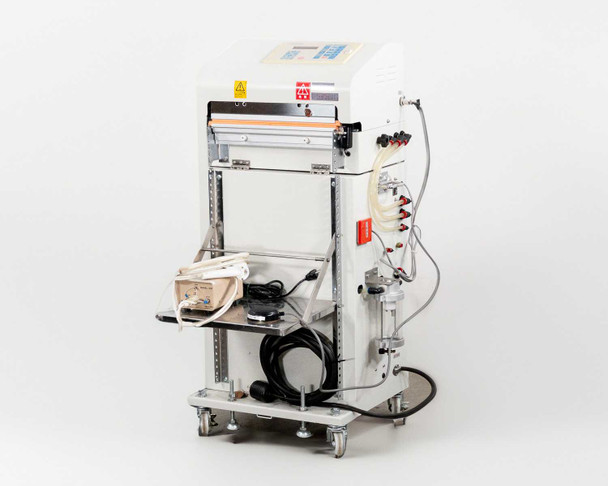

The Fuji VG-400C-10W is a cart-mounted impulse sealer with integrated gas flushing capability, manufactured by Fuji Impulse Co., Ltd. of Japan. It combines a pneumatically actuated sealing head with a gas-flush delivery system and an included Hugle Model 306 static control ionizer. The entire system is mounted on a mobile, caster-equipped stainless steel cart with an integrated lower shelf for accessories and peripheral components.
Specifications & What's Included
- Model: VG-400C-10W
- Machine Number: 060696-00002/07602A
- Manufacturer: Fuji Impulse Co., Ltd. (Japan)
- Input Voltage: 200V
- Power Rating: 2.6 kW
- Frequency: 50/60 Hz
- Power Connection: Twist-lock plug (200V locking style)
- Control Interface: Front-mounted digital keypad with LCD display (Japanese language)
- Sealing Mechanism: Impulse-type sealing jaw with orange heating element bar

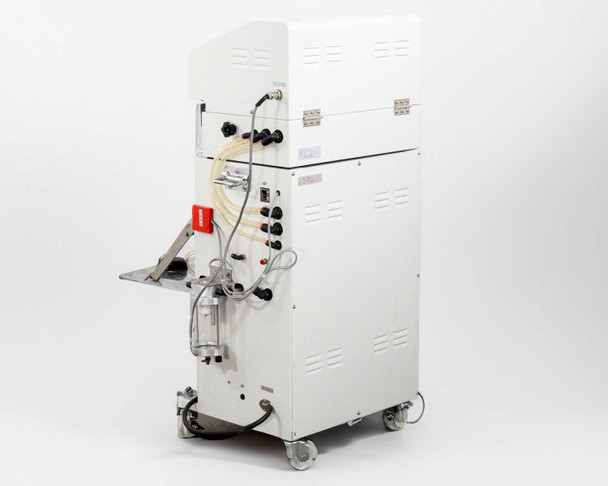

- Gas Flushing: Integrated gas flushing system with side-panel push-connect pneumatic manifold and flushing wand/nozzle
- Ionizer: Hugle Model 306 static control ionizer (included, with power cable)
- Rapid Stop Button: Red emergency stop button on side panel
- Cooling: Two internal cooling fans (one on upper cabinet, one on lower cabinet)
- Internal Components: Pneumatic cylinders, solenoid valves, blue and black wiring harness, pneumatic tubing (visible with lid open)
- Pneumatic Filter/Regulator: Transparent bowl assembly on lower right side of cabinet
- Foot Pedal: Included (labeled Fuji Impulse MOD VG-400C-10W)
- Mounting: Mobile stainless steel cart with casters and leveling feet, lower accessory shelf
- Language: Japanese (machine menus and documentation)
Applications
The VG-400C series is a line of impulse heat sealers with gas flushing designed for industrial packaging applications where atmosphere control inside the sealed package is required. Gas flushing sealers of this type are used in food packaging (modified atmosphere packaging), pharmaceutical blister and pouch sealing, and electronics packaging where nitrogen or inert gas is introduced to extend shelf life or prevent oxidation. The integrated Hugle ionizer addresses static charge buildup common in high-speed film packaging environments. These machines are common in Japanese pharmaceutical, food processing, and precision electronics manufacturing lines.
This Fuji VG-400C-10W Impulse Sealer with Gas Flushing and Hugle Model 306 Ionizer has been tested and confirmed to power on with a fully functional control panel, LCD display, and keypad buttons. The unit is in used condition and shows normal wear consistent with previous operation. Please note that the sealing jaws require attention and the heat exchanger may need service. Machine and documentation are in Japanese. Contact us with any questions about this unit's operational status or specifications.
Warranty Information
Additional Information
Brand: |
Fuji Impulse |
Model: |
VG-400C-10W |
MPN: |
060696-00002/07602A |
Type: |
Impulse Sealer with Gas Flushing |
SKU: |
53005 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes Hugle Model 306 ionizer, foot pedal, gas tubing, and accessories on cart |
Country/Region of Manufacture: |
Japan |
Power Requirements: |
200V, 50/60Hz |
Power Rating: |
2.6 kW |
Voltage Rating: |
200V |
Frequency: |
50/60 Hz |
Form Factor: |
Freestanding Cart-Mounted |
Ionizer Model: |
Hugle Model 306 |
Gas Flushing: |
Yes |
Plug Type: |
Twist-Lock (L6-20P style, 200V) |
Control Panel: |
Digital keypad with LCD display (Japanese language) |
Application: |
Packaging — food, pharmaceutical, electronic |
Language: |
Japanese |
Condition Notes: |
This Fuji VG-400C-10W Impulse Sealer with Gas Flushing and Hugle Model 306 Ionizer has been tested and confirmed to power on with a fully functional control panel, LCD display, and keypad buttons. |
