Fuji Electric

Fuji Electric CP33TM CP33T-M020 Circuit Protector 20A 3-Pole DIN Rail 240VAC CE

(No reviews yet) Write a Review
SKU:
48626
MPN:
CP33TM/3
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout

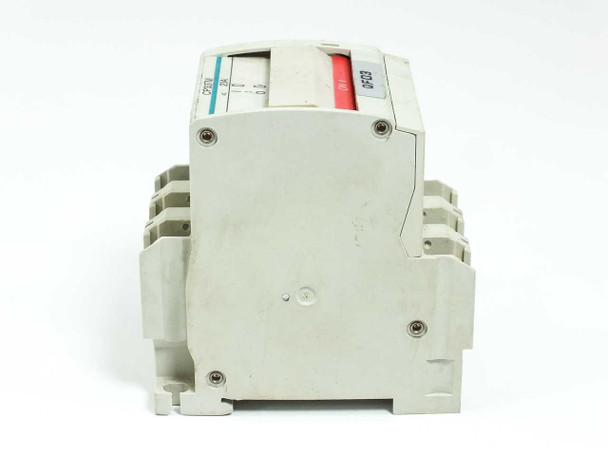

  • Fuji Electric Circuit Protector / Breaker 3 Amp 3-Pole CP33T-M003 CP33TM/3
  • Fuji Electric Circuit Protector / Breaker 3 Amp 3-Pole CP33T-M003 CP33TM/3
  • Fuji Electric Circuit Protector / Breaker 3 Amp 3-Pole CP33T-M003 CP33TM/3
  • Fuji Electric Circuit Protector / Breaker 3 Amp 3-Pole CP33T-M003 CP33TM/3
  • Fuji Electric Circuit Protector / Breaker 3 Amp 3-Pole CP33T-M003 CP33TM/3
$20.00
Was: $40.00
Current Stock: 3

Sold Out

Description

Fuji Electric CP33TM CP33T-M020 Circuit Protector 20A 3-Pole DIN Rail 240VAC CE

The Fuji Electric CP33TM series is a line of compact DIN rail-mounted circuit protectors designed to provide overcurrent and short-circuit protection for branch circuits and equipment in industrial control panels. The CP33T-M020 is the 20-amp, 3-pole variant, rated for 240VAC operational voltage. Units mount directly to standard DIN rail and are CE and UL listed.

Specifications & What's Included

  • Model: CP33TM/20 / CP33T-M020
  • Rated Insulation Voltage (Ui): AC250V / DC125V
  • Rated Operational Voltage (Ue): AC240V / DC120V
  • Current Rating: 20A
  • Poles: 3
  • Frequency: 50Hz / 60Hz
  • Interrupting Capacity: 1000A at AC240V (IEC/JIS PC1)
  • Tripping Characteristic: A.T.40
  • Mounting: DIN Rail
  • Certifications: CE, UL
  • Includes: Unit only

Applications

The CP33TM series is used for branch circuit and equipment protection in industrial control panels, automation systems, and machine tool enclosures where DIN rail mounting and compact footprint are required.

View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Related Products

Related Products

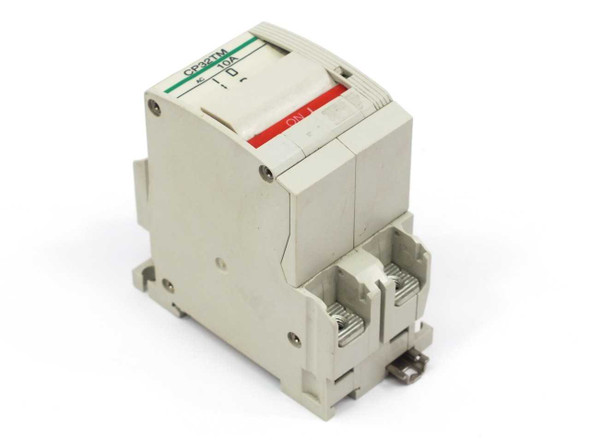

Fuji Electric CP32TM/10 circuit protector front-left angled view showing red and green toggle handle and label Fuji Electric CP32TM/10 CP32T-M010 2-pole circuit protector right-side angled view showing DIN rail clip and 10A marking
Add to Cart
Quick view

Fuji Electric CP32TM/10 CP32T-M010 Circuit Protector 10A 2-Pole 240VAC DIN Rail

Fuji Electric

$20.00
Was: $50.00
Fuji Electric CP32TM/10 CP32T-M010 Circuit Protector 10A 2-Pole 240VAC DIN Rail 2-pole circuit protector rated for 10A at 240VAC, designed for DIN rail mounting. Provides overcurrent protection in...
48138
SKU:
48138
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Fuji Electric
Model:
CP32TM/10
MPN:
CP32T-M010
SKU:
48138
Condition:
Used – Inspected
Seller Notes:
Unit only — no accessories included.
Form Factor:
DIN Rail Mount
Country of Manufacture:
Japan
Number of Poles:
2
Current Rating:
10A
Rated Insulation Voltage (Ui):
AC 250V / DC 125V
Rated Operational Voltage (Ue):
AC 240V / DC 120V
Frequency:
50Hz / 60Hz
Breaking Capacity:
1000A at AC240V (I.C. JIS/IEC PC1)
Trip Class / AT Rating:
A.T. 40
Standards:
JIS, IEC, CE
Interrupting Capacity:
I.C. 1kA at AC220V
Date Code:
0307P
Certifications:
CE, JIS, IEC
Condition Notes:
This Fuji Electric CP32TM/10 circuit protector has been inspected and shows light cosmetic wear consistent with prior service use. The housing, toggle, and terminals appear intact with no visible damage.

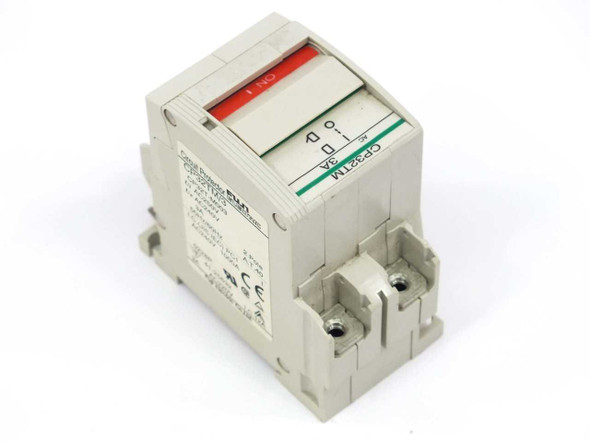

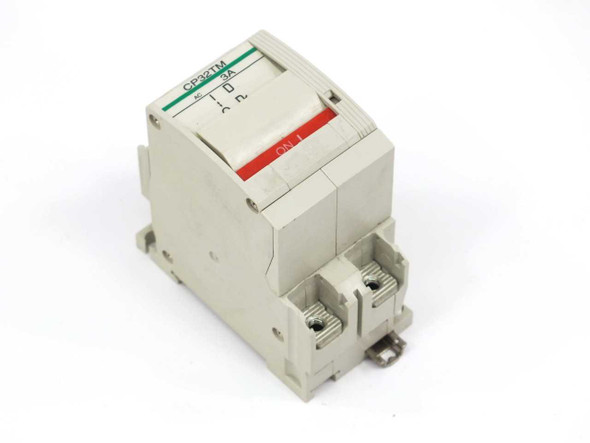

Fuji Electric CP32TM/3 Circuit Protector front view showing red ON indicator and green housing with DIN rail clip Fuji Electric CP32TM/3 Circuit Protector angled side view showing toggle handle, label side, and screw terminals
Add to Cart
Quick view

Fuji Electric CP32TM/3 Circuit Protector 3A 2-Pole 250VAC CP32T-M003

Fuji Electric

$10.00
Was: $30.00
Fuji Electric CP32TM/3 Circuit Protector 3A 2-Pole 250VAC CP32T-M003 2-pole DIN rail-mounted circuit protector rated for 3A at 250VAC. Provides overcurrent protection in industrial and telecom...
48139
SKU:
48139
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Fuji Electric
Model:
CP32TM/3
MPN:
CP32T-M003
SKU:
48139
Condition:
Used – Inspected
Seller Notes:
Unit only; no accessories included.
Form Factor:
DIN Rail Mount
Number of Poles:
2
Current Rating:
3A
Rated Insulated Voltage (Ui):
250 VAC / 125 VDC
Rated Operational Voltage (Ue):
240 VAC / 120 VDC
Voltage Rating:
250 VAC
Frequency:
50 Hz / 60 Hz
Breaking Capacity (Ics):
1000A at AC240V (PC1 per JIS/IEC)
Interrupting Capacity:
1kA at AC220V
Trip Class / A.T.:
A.T.40
Standards:
UL, CSA, CE, JIS, IEC
Country of Manufacture:
Japan
Date Code:
0228P
Condition Notes:
This Fuji Electric CP32TM/3 Circuit Protector has been inspected and shows typical light wear consistent with prior use. The housing is intact, the toggle handle operates freely, and no damage is visible.

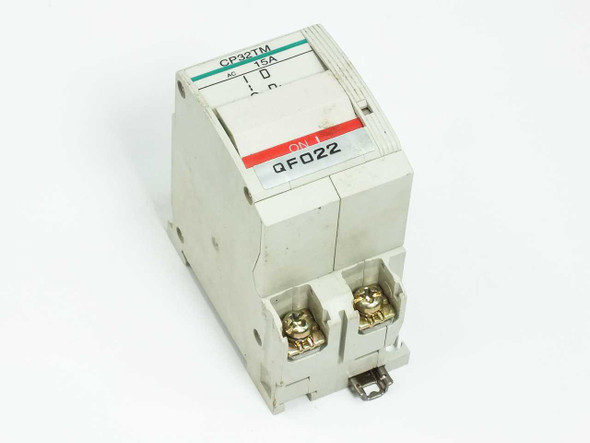

Fuji Electric CP32TM/15 Circuit Protector – front view showing ON indicator label and QF022 marking Fuji Electric CP32TM/15 Circuit Protector – rear-angle view showing opposite side and DIN rail clip
