Fuji Electric CP32TM/10 CP32T-M010 Circuit Protector 10A 2-Pole 240VAC DIN Rail

(No reviews yet) Write a Review
SKU:
48138
MPN:
CP32TM/10
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • Fuji Electric CP32TM/10 circuit protector front-left angled view showing red and green toggle handle and label

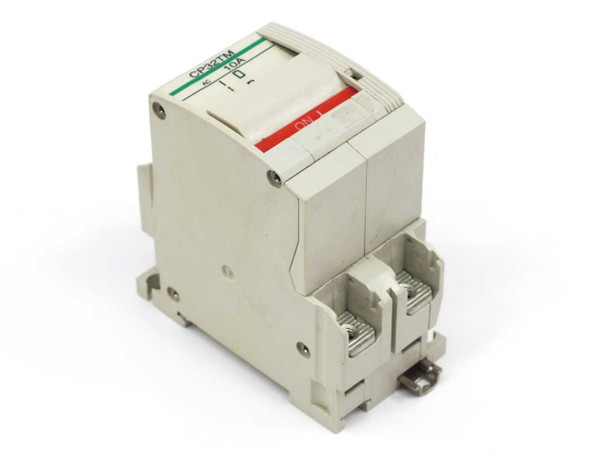

  • Fuji Electric CP32TM/10 CP32T-M010 2-pole circuit protector right-side angled view showing DIN rail clip and 10A marking

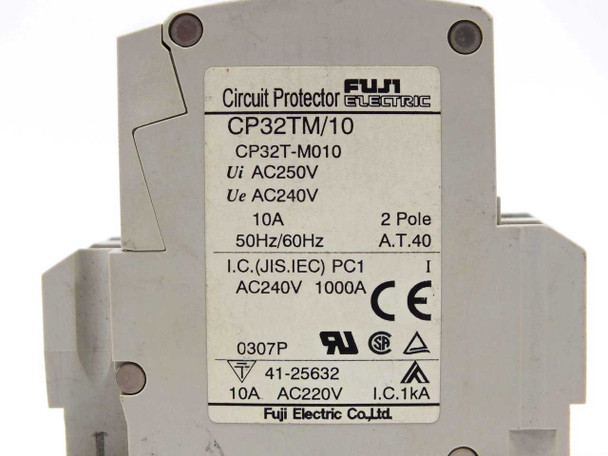

  • Fuji Electric CP32TM/10 label closeup showing CP32T-M010 model, AC250V Ui, AC240V Ue, 10A, 2-Pole, 50/60Hz, A.T.40 specs
  • Fuji Electric CP32TM/10 bottom terminal view showing two screw-type wire terminals and DIN rail mount bracket
  • Fuji Electric CP32TM/10 rear panel view showing smooth housing and DIN rail mounting foot
$20.00
Was: $50.00
Current Stock: 1

Sold Out

Description

Fuji Electric CP32TM/10 CP32T-M010 Circuit Protector 10A 2-Pole 240VAC DIN Rail

2-pole circuit protector rated for 10A at 240VAC, designed for DIN rail mounting. Provides overcurrent protection in industrial and telecom applications.

Specifications & What's Included

  • Model: CP32TM/10 (CP32T-M010)
  • Current Rating: 10A, 2-Pole
  • Rated Voltage: AC 240V / DC 120V
  • Insulation Voltage (Ui): AC 250V / DC 125V
  • Breaking Capacity: 1000A at AC 240V (JIS/IEC PC1)
  • Trip Class: A.T. 40
  • Frequency: 50Hz / 60Hz
  • Standards: JIS, IEC, CE
  • Form Factor: DIN Rail Mount
  • Manufactured: Japan
  • Unit only — no accessories included

Applications

Suitable for overcurrent protection in industrial control panels, telecom equipment, and standard 240VAC distribution systems.

Condition: Used
This Fuji Electric CP32TM/10 circuit protector has been inspected and shows light cosmetic wear consistent with prior service use. The housing, toggle, and terminals appear intact with no visible damage. Please view our photo set and feel free to contact us with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Fuji Electric
Model:
CP32TM/10
MPN:
CP32T-M010
SKU:
48138
Condition:
Used – Inspected
Seller Notes:
Unit only — no accessories included.
Form Factor:
DIN Rail Mount
Country of Manufacture:
Japan
Number of Poles:
2
Current Rating:
10A
Rated Insulation Voltage (Ui):
AC 250V / DC 125V
Rated Operational Voltage (Ue):
AC 240V / DC 120V
Frequency:
50Hz / 60Hz
Breaking Capacity:
1000A at AC240V (I.C. JIS/IEC PC1)
Trip Class / AT Rating:
A.T. 40
Standards:
JIS, IEC, CE
Interrupting Capacity:
I.C. 1kA at AC220V
Date Code:
0307P
Certifications:
CE, JIS, IEC
Condition Notes:
This Fuji Electric CP32TM/10 circuit protector has been inspected and shows light cosmetic wear consistent with prior service use. The housing, toggle, and terminals appear intact with no visible damage.
