Description
Fluid Management Accutinter 1600HS 4-Channel Paint Tinter 64 oz/min 110/220V

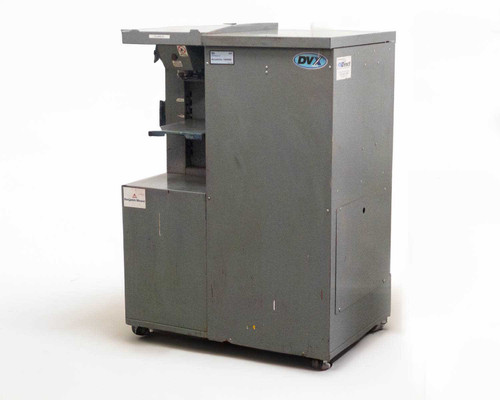

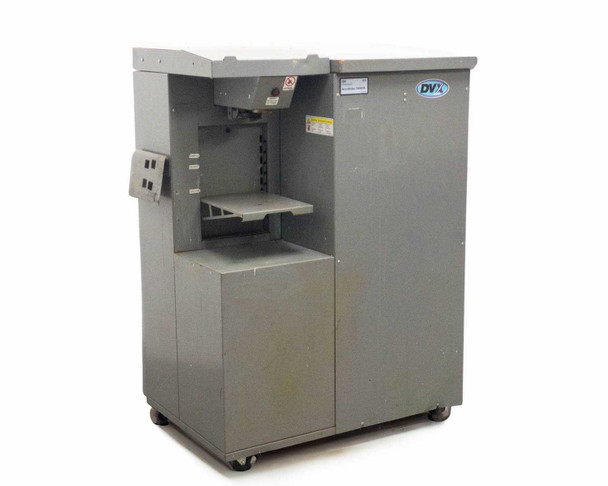

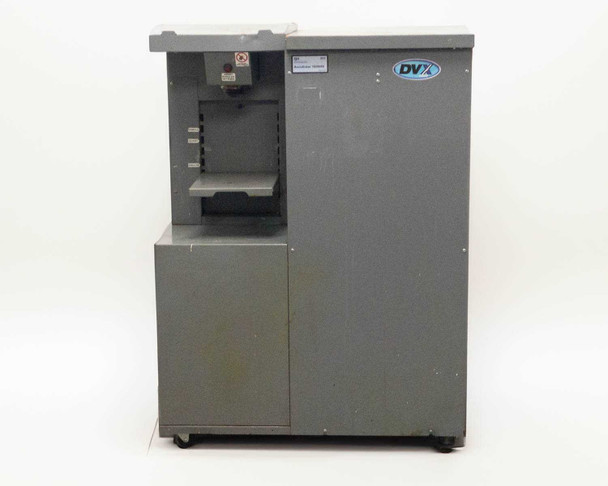

The Fluid Management Accutinter 1600HS is an automatic colorant dispensing system designed for retail paint counters and production tinting environments. It simultaneously dispenses up to 4 colorants at a time using 16 Duraflow-VX stainless steel pumps, allowing fast, precise tinting of multiple containers without manual pump cycling. The dual-voltage design (110/220V, 50/60Hz) makes it compatible with both standard US and international power configurations.
Specifications & What's Included
- Brand: Fluid Management
- Model: Accutinter 1600HS
- Dispensing Channels: 4 simultaneous
- Pump Type: Duraflow-VX stainless steel (no-wear)
- Number of Pumps: 16
- Canister Capacity: 3 quarts each
- Number of Canisters: 12/16 configuration
- Maximum Flow Rate: 64 oz/minute (all channels combined)
- Minimum Dispense Accuracy: 1/512th (colorant dependent)
- Compatible Colorants: Universal, Water Based, Organic, LVOC/no-VOC
- Nozzle Closer: Automatic, optimized for low-/no-VOC colorants
- Container Sizes Supported: Quart, 1-gallon, 5-gallon (manual adjustment with positioning)
- Power: Dual voltage — 110/220V, 50/60Hz
- Certifications: UL, CSA, FCC
- Dimensions: 35"W x 24"D x 48"H
- Mobility: Mounted on rolling casters

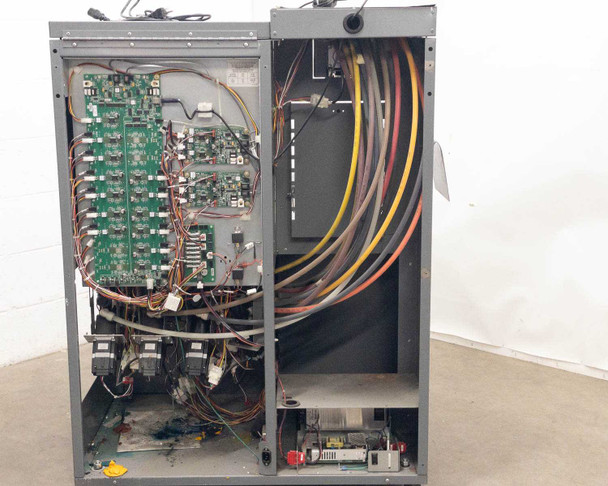

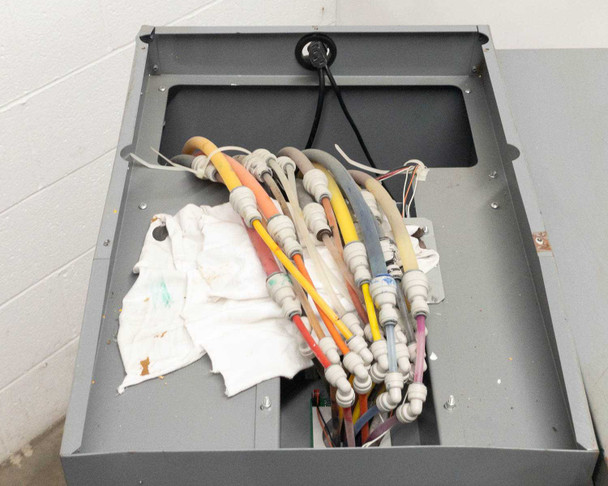

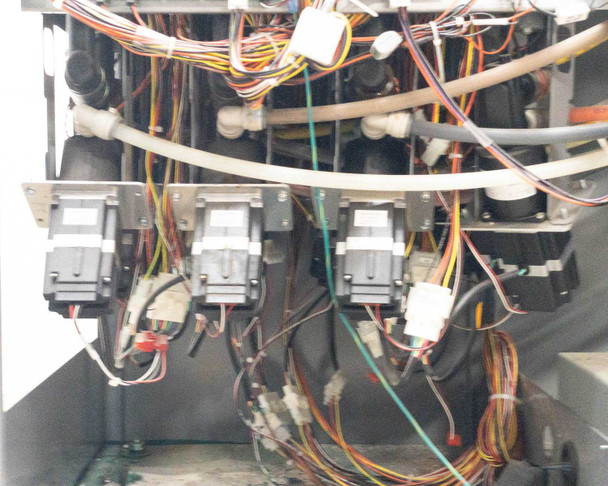

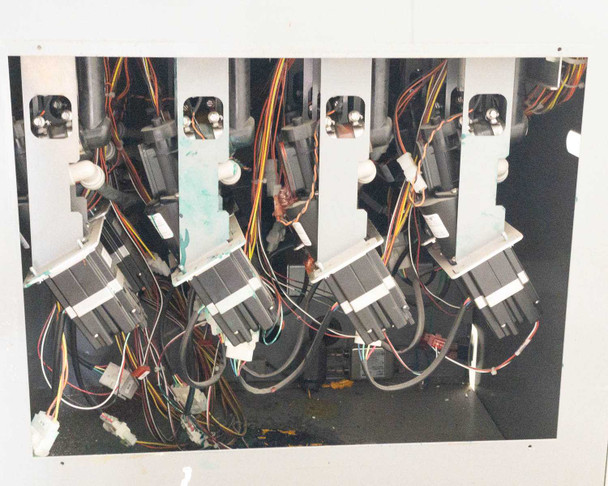

- Internal components visible in photos: stepper motor pump drive assemblies (qty visible: 7+), multi-board control PCB array, internal switching power supply, full colorant tubing harness
- Colorant canisters are NOT included
Applications
The Accutinter 1600HS is used in retail paint stores, hardware chains, and paint distribution centers where high-volume, accurate colorant tinting is required at the point of sale. Fluid Management's Accutinter series has been a standard platform in the paint retail industry for decades, used by major paint brands and independent dealers alike to tint base paints to customer color specifications. The 4-channel simultaneous dispensing capability makes it suited to busy counter environments where throughput matters. The stainless steel Duraflow-VX pump system is designed for long service life and consistent calibration without the wear issues associated with piston-style pumps. Units like this are also purchased for secondary retail locations, replacement installations, or as parts donors for existing Accutinter fleets.

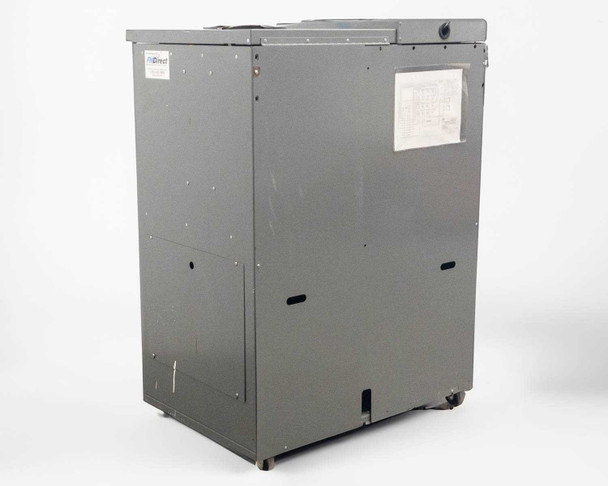

Fluid Management Accutinter 1600HS 4-Channel Paint Tinter, sold as-is for parts or repair only. The unit was powered on at our facility and LEDs illuminated during startup, but no further testing was done and we make no claim about functionality. The cabinet has typical shop wear including surface scuffs and paint residue. The interior wiring harness, stepper motor pump assemblies, control PCBs, and power supply are all present. Colorant canisters are not included. Buyer is responsible for any repairs or restoration needed.
Warranty Information
Additional Information
Brand: |
Fluid Management |
Model: |
Accutinter 1600HS |
MPN: |
1600HS |
Type: |
Automatic Paint Colorant Dispenser |
SKU: |
53127 |
Number of Channels: |
4 |
Number of Pumps: |
16 |
Pump Type: |
Duraflow-VX Stainless Steel |
Canister Capacity: |
3 quarts each |
Number of Canisters: |
12/16 |
Maximum Flow Rate: |
64 oz/minute (all channels) |
Minimum Dispense Accuracy: |
1/512th (colorant dependent) |
Dispensing Mode: |
Simultaneous 4-colorant dispense |
Compatible Colorants: |
Universal, Water Based, Organic, LVOC |
Power Requirements: |
110/220V, 50/60Hz, Dual Voltage |
Certifications: |
UL, CSA, FCC |
Dimensions: |
35"W x 24"D x 48"H |
Form Factor: |
Freestanding Floor Unit on Casters |
Nozzle Closer: |
Automatic, low-/no-VOC design |
Container Sizes Supported: |
Quart, 1-gallon, 5-gallon |
Seller Notes: |
Unit only; colorant canisters not included. Wiring harness and internal boards present. |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Inspected and Tested |
Condition Notes: |
Accutinter 1600HS for parts/repair. Powered on but untested. Cabinet shows wear and scuffs. Interior components present. No canisters. Sold as-is. |
